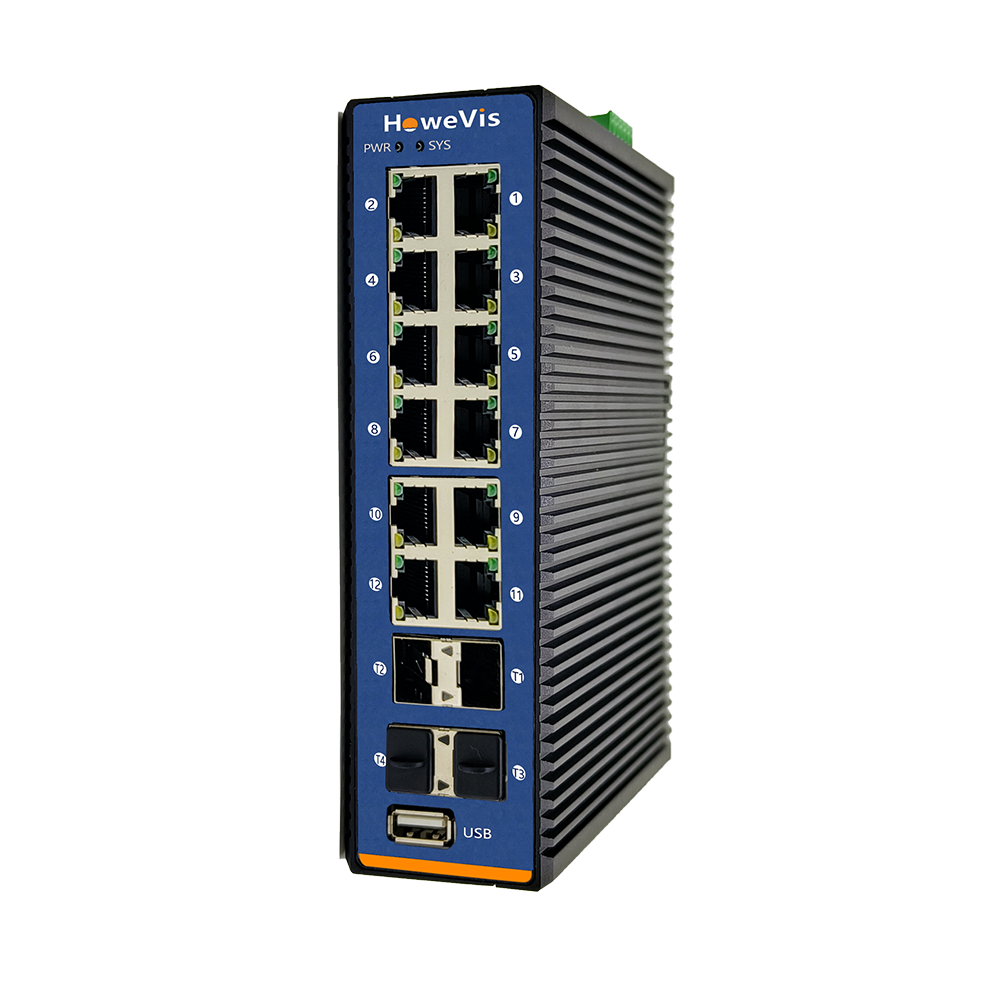

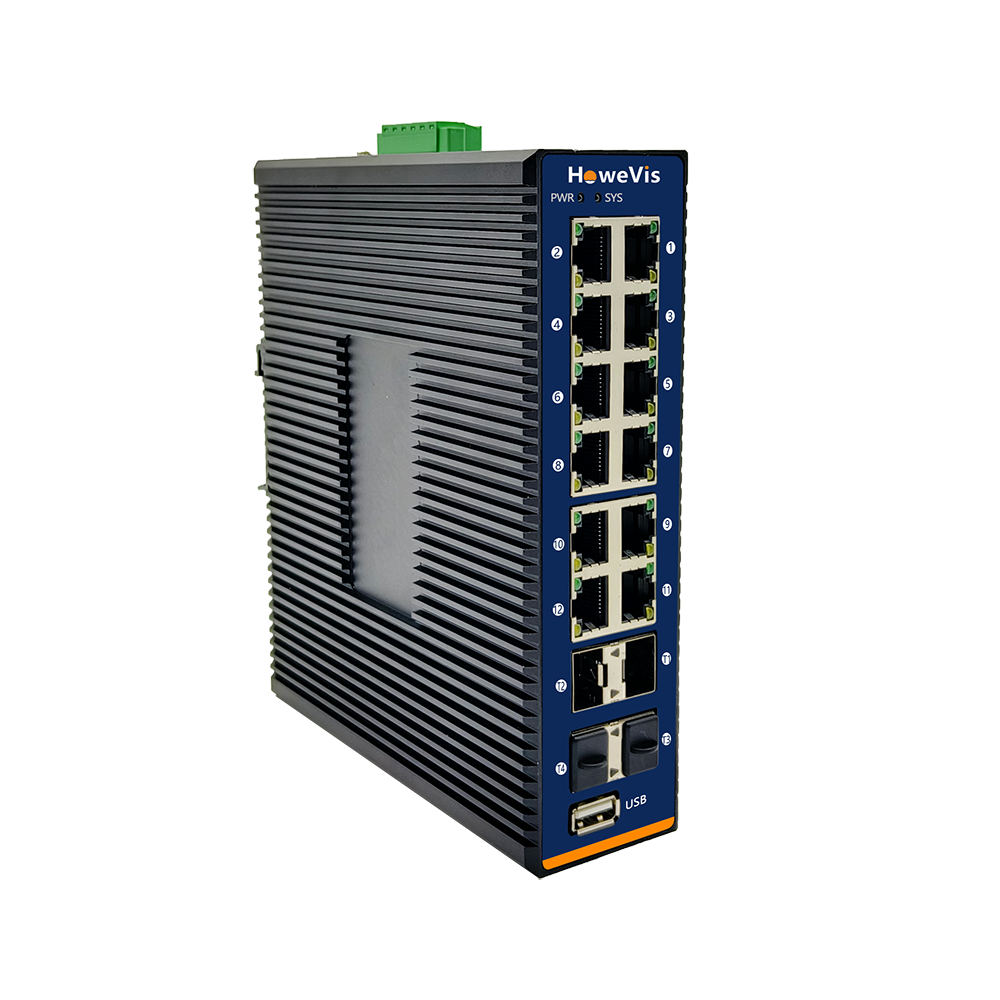

IPS50844TFM Series is an industrial-grade 10Gbps Layer 3 managed PoE switch, featuring 12 Gigabit Ethernet ports (Ports 1-8 support 802.3af/at PoE, 30W per port) and 4 10G SFP+ fiber ports, capable of powering PoE devices such as wireless APs, IP cameras, and PLCs. It is designed for harsh environments like intelligent transportation, power utilities, and mining.

Supporting L3 routing (IPv4/IPv6), ACL/QoS, VLAN, and redundancy protocols (STP/RSTP/MSTP/ERPS, recovery time <20ms), it offers flexible management via Web, CLI, and SNMP. Built with an aluminum alloy housing, it provides 6KV lightning protection, dual power inputs, and DIN-rail mounting, ensuring reliable operation in high-temperature outdoor conditions for robust network deployment.

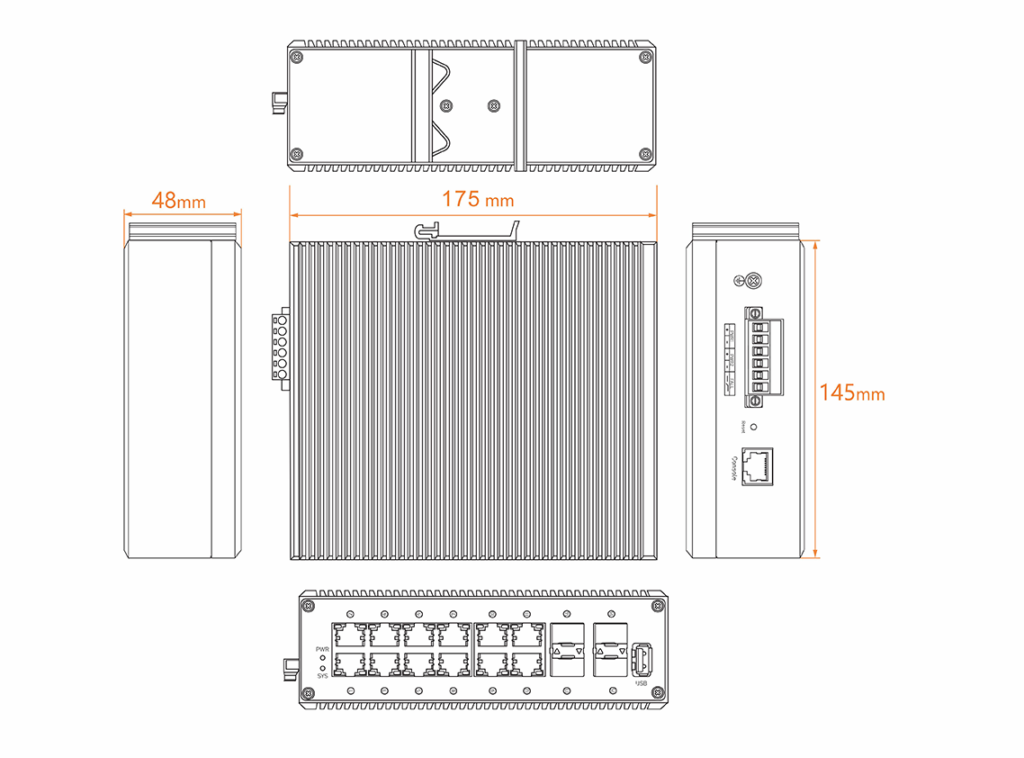

Product size

Installation Description

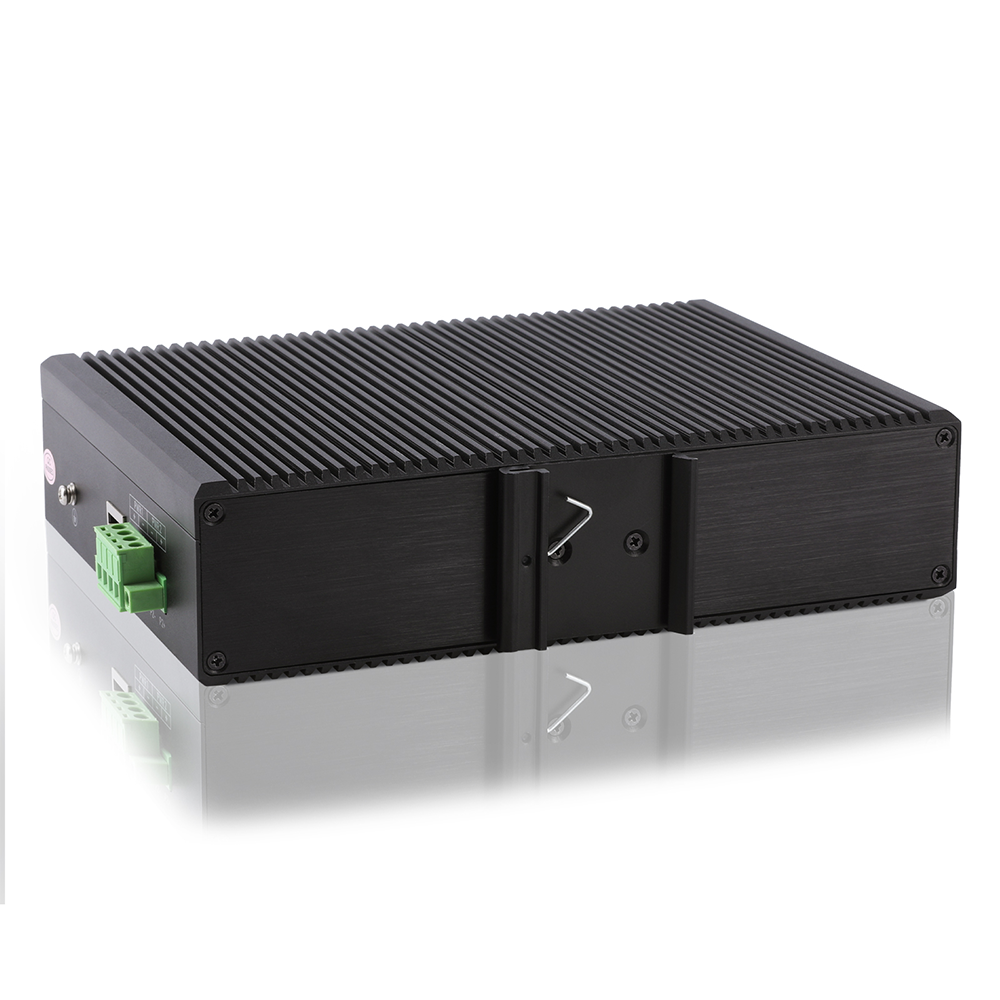

1. Incline the equipment upward, and use the snap ring at the upper end of the equipment buckle outside the DIN rail;

2. Press the device down and use the lower part of the clip to fit into the DIN rail

3 Check whether it is stable after fastening

Product Characteristics

• Single-port PoE power up to 30W, af/at adaptive, widely compatible with a variety of network terminals;
• Optical hybrid uplink port, flexible adaptation of network cable and fiber optic connection, adapt to a variety of networking cascade and expansion, networking is more simple;
• 10Gb uplink high-speed transmission, high bandwidth transmission stability is guaranteed, support per-port rate and flow control, to achieve 10M/250m long-distance transmission, easy to solve the problem of long-distance communication and power supply to meet the needs of different users;
• Industrial-grade high-bandwidth switching chip with high backplane and large cache to reduce network congestion;
• Support IEEE802.3X full duplex intelligent flow control, large bit stream HD transmission without lag;
• Supports automatic learning and updating of MAC address and automatic port rollover (Auto MDI/MDI-X) function;
• The service port supports 6KV anti-surge (lightning) protection, PoE short-circuit and overload protection for safer and more secure use;
• Aluminum alloy profile metal shell, strong heat dissipation, shielding interference, strong, rust-proof more durable;
• Dual DC redundant power supply interface, DC48-57V wide voltage input, in line with the wide voltage requirements of industrial environments;
• DIN35 DIN-rail mounting, IP40 protection level, -40℃ to +75℃ wide temperature design, more stable and reliable in harsh environments;
• Low power consumption, fanless and silent design, easy to install and use.

Software Features

Strong operational capabilities

• Supports 128 entries for IPV4 static routes, supports ARP protocol, up to 1024 entries.
• Flexible port bandwidth and traffic configuration, optical port DDMI digital diagnostic function, easy to realize the fine management of the network.
• Support IEEE 802.1Q VLAN, support protocol VLAN, support QinQ VLAN, the user can be flexible according to the needs of VLAN.
• Supports QoS, three priority modes based on port, based on 802.1P, and based on DSCP, and four queue scheduling algorithms, Equ, SP, WRR, and SP+WRR.
• Supports ACLs, which provide flexible security access control policies by configuring matching rules, processing operations, and time permissions to achieve filtering of packets.
• Supports IGMP V1/V2 multicast protocol and IGMP Snooping V1/V2/V3 to meet the needs of multi-terminal HD video surveillance and video conference access.
• Supports STP/RSTP/MSTP production tree protocols and ERPS fast ring protocols to eliminate Layer 2 loops and realize link backup.
• Supports static aggregation and dynamic aggregation (LACP) to effectively increase link bandwidth, achieve load balancing, and link backup, and improve link reliability.

Complete safety features

• Supports WEB interface user authentication.
• CPU protection is supported to prevent attacks on the switch itself from large data streams.
• Supports 802.1x authentication, remote RADIUS, and TACACS+ authentication.
• The hardware supports IP ACL, MAC ACL, ACL port filtering function, MAC address binding, and port-based IP+MAC+Vlan+Port multiple binding functions.
• Support DHCP Snoopingv1/v2/v3 function, port isolation function, and port broadcast storm suppression function.

Convenient operation and maintenance management

• • • Supports diverse management and maintenance methods such as Web-based network management, CLI command line (Console, Telnet), and SNMP (V1/V2c/V3).
    • Support HTTP/HTTPS, SSH and other encryption methods, for more secure management.
    • Support HTTP/TFTP to realize firmware update/upgrade, support configuration file upload/download, and one-key restore system configuration.
    • Supports RMON, system logs, and port traffic statistics for network optimization and transformation.
    • Support LLDP, convenient for network management systems to query and judge the communication status of links.
    • Supports CPU monitoring, memory monitoring, Ping detection, and cable detection.
