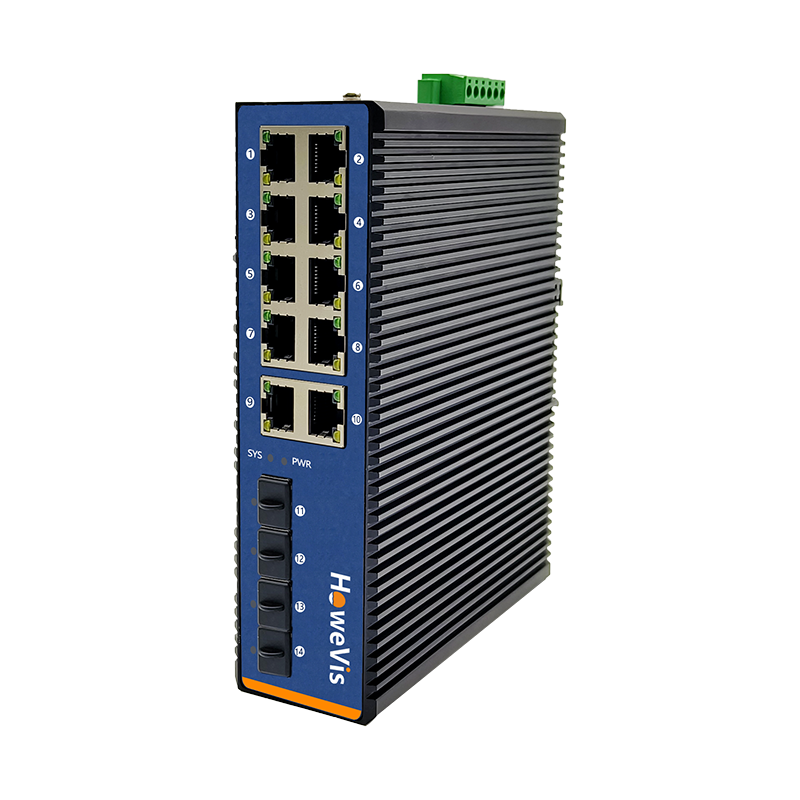

IPS50824FMR series full Gigabit Layer 2 managed PoE switch, with 10 Gigabit Ethernet ports + 4 Gigabit uplink SFP optical port slots, of which ports 1-8 support IEEE 802.3af/at standard PoE power supply, single port PoE power up to 30 W. As a PoE power supply device, it can automatically detect and identify the standard power receiving devices and supply power to them through the network cable. Through the network cable for industrial wireless AP, network cameras, industrial control IP phones, PLC modules, industrial sensors, and other POE terminal equipment power supply, to meet the demand for high-density PoE power supply of industrial networking environment, suitable for intelligent transportation, rail transit, electric power industry, mining, petroleum, shipping, metallurgy and green energy construction and other industrial scenarios, such as the formation of cost-effective, stable and reliable communications network. The network is suitable for intelligent transportation, railroad, power industry, mining, oil, shipping, metallurgy green energy construction, and other industrial scenes to form a cost-effective, stable, and reliable communication network.

IPS50824FMR is equipped with an L2+ network management function, supports IPV4 static route forwarding, complete security protection mechanism, perfect ACL/QoS policy, and rich VLAN function, easy to manage and maintain. Support a variety of network redundancy protocols STP/RSTP/MSTP (<50ms) and ERPS (<20ms) ring network protocol to enhance link backup and network reliability, when a one-way network failure, you can quickly restore communications to ensure uninterrupted communication of important transmissions. According to the actual application needs, through the Web, CLI, SNMP, Telnet, and other network management methods, PoE power supply management, port flow control, VLAN division, QoS, LACP, IGMP, and DHCP, and other application services configuration. The switches are made of an aluminum alloy shell, super heat dissipation performance, to ensure their long and stable operation in outdoor high-temperature environments, service ports support 6KV electrostatic lightning protection, redundant dual power input interfaces, DIN-rail mounting, it is the best choice for you to set up a ring-type network and multi-service network access.

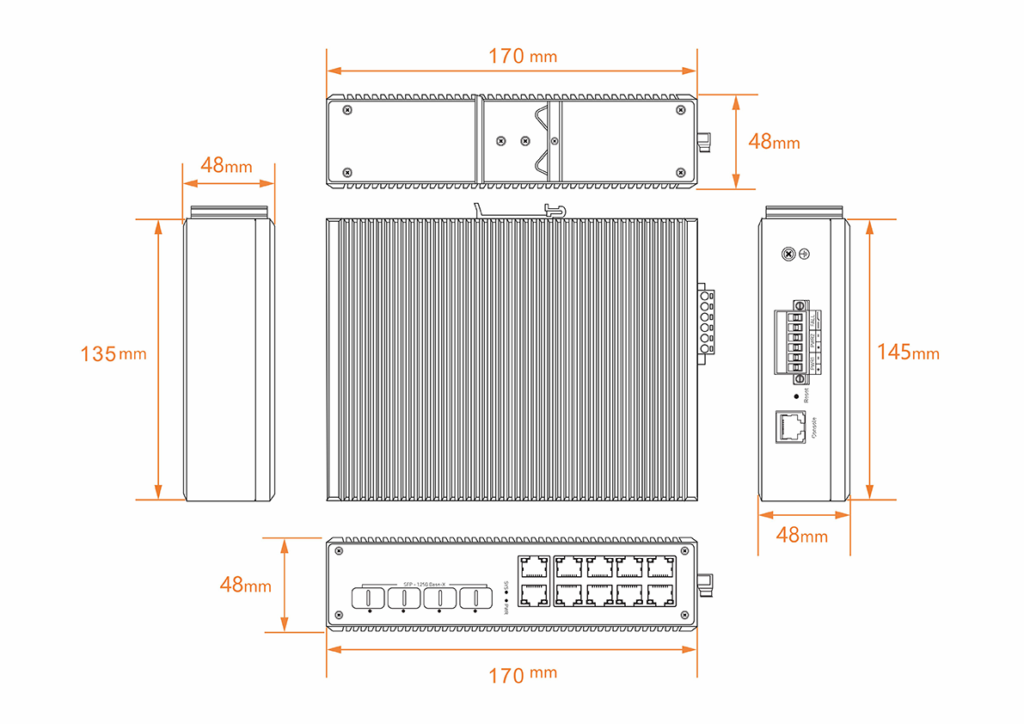

Product size

Installation Description

1. Incline the equipment upward, and use the snap ring at the upper end of the equipment buckle outside the DIN rail;

2. Press the device down and use the lower part of the clip to fit into the DIN rail

3 Check whether it is stable after fastening

• Product Characteristics

  • Single-port PoE power up to 30W, af/at adaptive, widely compatible with a variety of network terminals;
  • Multi-optical uplink port, long-distance transmission, suitable for various ring/chain network cascade and expansion, networking is more simple;
  • Full Gigabit high-speed rate transmission, high bandwidth transmission stability is guaranteed, support per port rate and flow control, to achieve 10M/250 meters long-distance transmission, easy to solve the problem of long-distance communication and power supply, to meet the needs of different users;
  • Industrial-grade high-bandwidth switching chip with high backplane and large cache to reduce network congestion;
  • Support IEEE802.3X full duplex intelligent flow control, large bit stream HD transmission without lag;
  • Supports automatic learning and updating of MAC address, and automatic port rollover (Auto MDI/MDI-X) function;
  • The service port supports 6KV anti-surge (lightning) protection, PoE short-circuit and overload protection for safer and more secure use;
  • Aluminum alloy profile metal shell, strong heat dissipation, shielding interference, strong, rust-proof more durable;
  • Dual DC redundant power supply interface, DC48-57V wide voltage input, in line with the wide voltage requirements of industrial environments;
  • DIN35 DIN-rail mounting, IP40 protection level, -40℃ to +75℃ wide temperature design, more stable and reliable in harsh environments;
  • Low power consumption, fanless and silent design, easy to install and use.



  Software Features

  Strong operational capabilities

  • Supports 64 entries for IPV4 static routes, supports ARP protocol, up to 1024 entries.
  • Flexible port bandwidth and traffic configuration, optical port DDMI digital diagnostic function, easy to realize the fine management of the network.
  • Support IEEE 802.1Q VLAN, support protocol VLAN, support QinQ VLAN, the user can be flexible according to the needs of VLAN.
  • Supports QoS, three priority modes based on port, based on 802.1P and based on DSCP and four queue scheduling algorithms, Equ, SP, WRR and SP+WRR.
  • Supports ACLs, which provide flexible security access control policies by configuring matching rules, processing operations, and time permissions to achieve filtering of packets.
  • Supports IGMP V1/V2 multicast protocol and IGMP SnoopingV1/V2/V3 to meet the needs of multi-terminal HD video surveillance and video conference access.
  • Supports STP/RSTP/MSTP production tree protocols and ERPS fast ring protocols to eliminate Layer 2 loops and realize link backup.
  • Supports static aggregation and dynamic aggregation (LACP) to effectively increase link bandwidth, achieve load balancing, link backup, and improve link reliability.



  Complete safety features

  • Supports WEB interface user authentication.
  • CPU protection is supported to prevent attacks on the switch itself from large data streams.
  • Supports 802.1x authentication, remote RADIUS, TACACS+ authentication.
  • The hardware supports IP ACL, MAC ACL, ACL port filtering function, MAC address binding, and port-based IP+MAC+Vlan+Port multiple binding function.
  • Support DHCP Snoopingv1/v2/v3 function, port isolation function, and port broadcast storm suppression function.



  Convenient operation and maintenance management

  • Supports diverse management and maintenance methods such as Web-based network management, CLI command line (Console, Telnet), and SNMP (V1/V2c/V3).
  • Support HTTP/HTTPS, SSH, and other encryption methods, for more secure management.
  • Support HTTP/TFTP to realize firmware update/upgrade, support configuration file upload/download, and one-key restore system configuration.
  • Supports RMON, system logs, and port traffic statistics for network optimization and transformation.
  • Support LLDP, convenient for network management systems to query and judge the communication status of links.
  • Supports CPU monitoring, memory monitoring, Ping detection, and cable detection.
