HoweVision industrial switch is highly cost-effective networking equipment designed to meet the needs of flexible industrial applications. The technology of real-time Communication, network availability, and security is correctly solved using the US's VTS industry chip. The industrial switch's design and component selection are more demanding to better adapt to the harsh field needs of industrial control. It provides excellent industrial quality such as vibration resistance, high/low-temperature resistance, dust resistance, and lightning protection through the design of a fan-less heat dissipation circuit, a wide range of working environment temperatures, and high-protection grade technology. It has an IP40 protection metal shell, strong vibration-resistant track seats, extreme environmental temperature adaptability, and good EMC Electromagnetic compatibility which gives the series products the ability to work stably and reliably under harsh industrial environments. The products can be widely used in various industrial fields in an extreme environment.

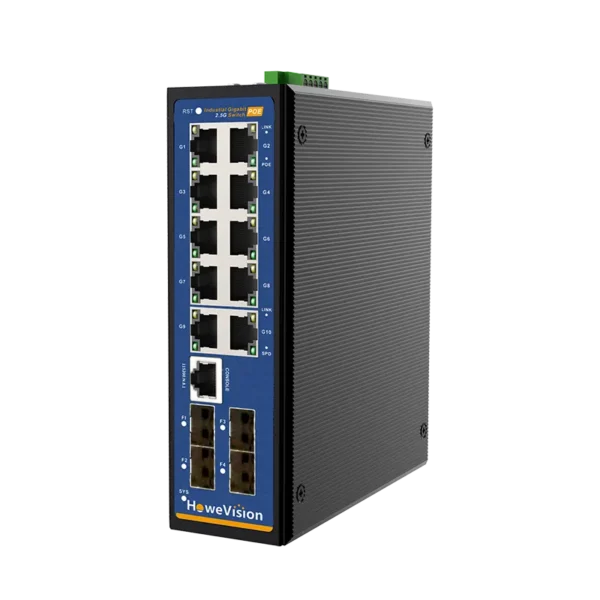

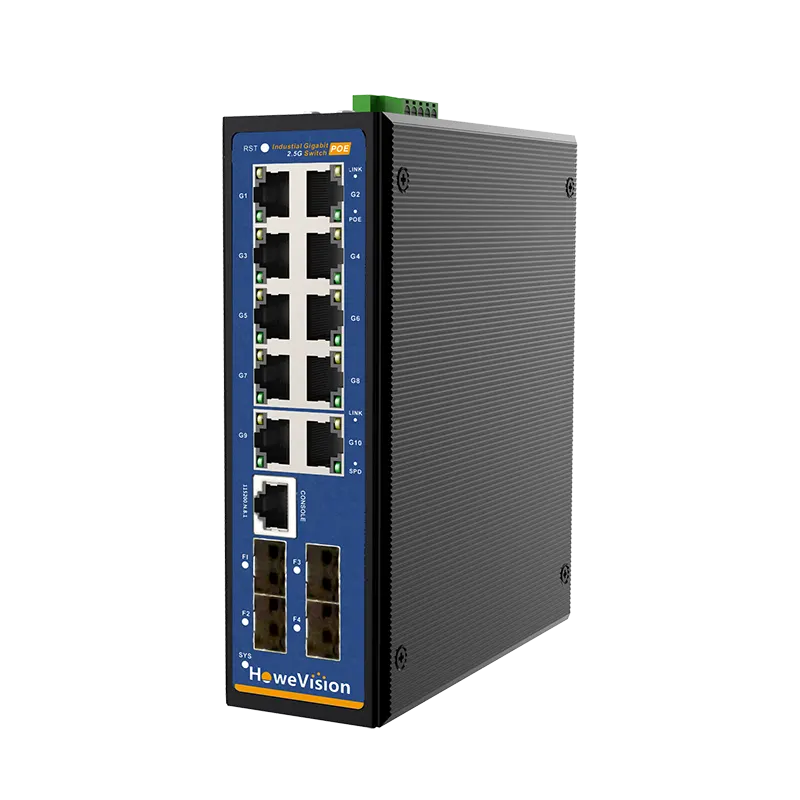

IPS50824FM-BT is a three-deck card track management Type Industrial Ethernet designed for the strict performance requirements of the industrial communication system requirements, without fear of high temperature and cold. Provides 10/1000Base-x, 1000Base-X SFP + 10/100/1000Base-T (x) RJ45 interfaces. Support G. 8032 protocol family (self-healing time < 20ms), MSTP/RSTP/STP, VLAN, multicast, QoS, SSH, 1588, and other rich two-layer software features, as well as MLD, IGMP, static routing, etc., and Support CLI, Telnet, Web multiple management methods and based on SNMPv1/v2c/v3 network management software. Moreover, the integration of various protocols such as routing, switching, security, and the support of Public Ethernet multi-environmental protection technology (ERPS-G. 8032), has greatly enhanced the flexibility of networking and enhanced the reliability and security of industrial networks. Provides robust, easy-to-use, secure communications products and solutions that better meet the deployment requirements of power, traffic, outdoor surveillance, and other harsh environments.

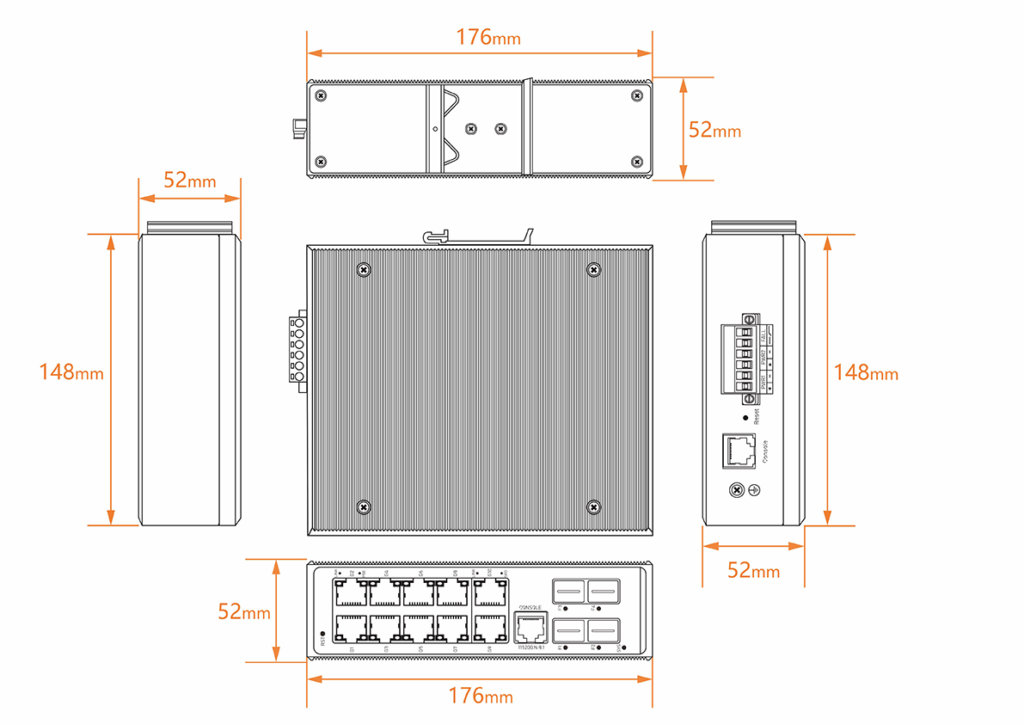

Product size

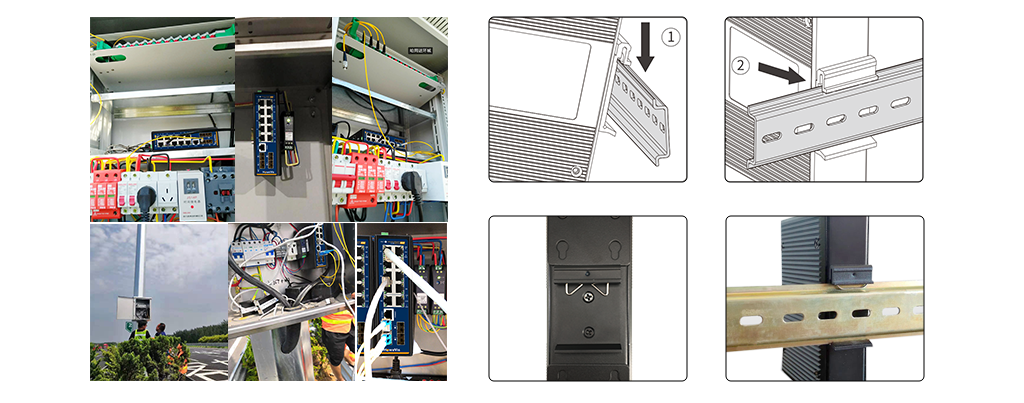

Installation Description

1. Incline the equipment upward, and use the snap ring at the upper end of the equipment buckle outside the DIN rail;

2. Press the device down and use the lower part of the clip to fit into the DIN rail

3 Check whether it is stable after fastening

• All gigabit design, 10 x gigabit Ethernet RJ45 ports, 1x console port, and 2x 2.5G SFP slots.
• 1-8 PoE ports support IEEE803.af/at, 9-10 PoE ports support IEEE803.3bt
• Comply with IEEE 802.3af/at/bt PoE standard. Supports 1-8 port PoE configuration function
• L2+ features provide better manageability, security, QoS, and performance.
• Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, DHCP Server, LLDP, DDM, POE++ management, IP Source Guard, ARP inspection, ACLs, etc.
• Support spanning tree STP(802.1D) and RSTP(802.1W). MSTP(802.1S).
• Jumbo frames support up to 9.6K kilobytes.
• Support enhanced management through WEB, CLI, TELNET, SSH, SNMP(V1, V2, V3)
• Support cable diagnosis
• Support ERPS <20ms industrial quick ring protection
