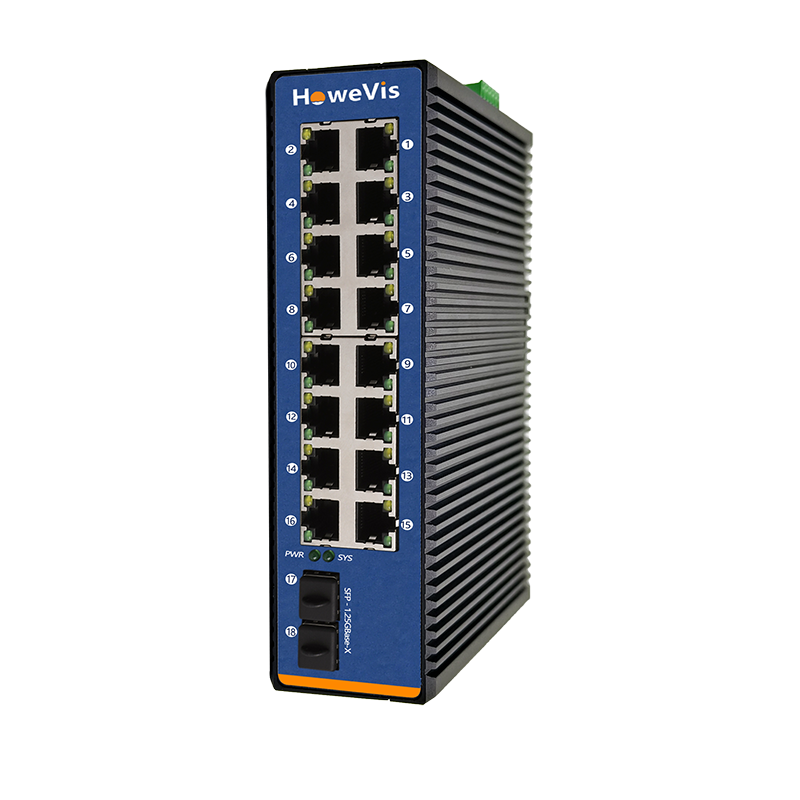

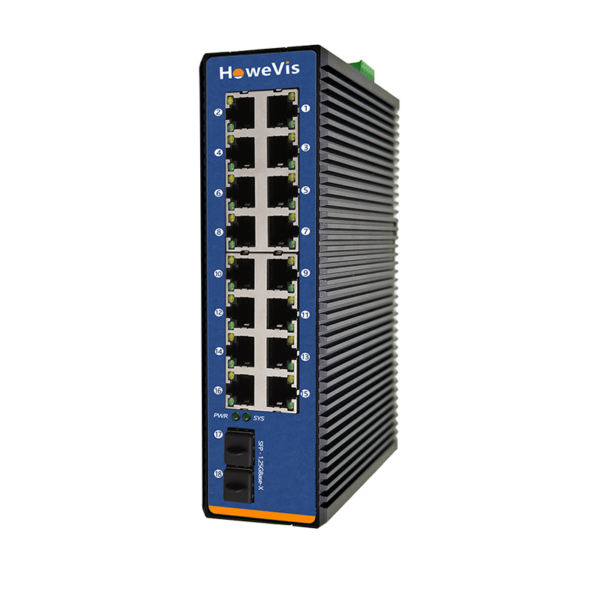

The IPS51602FM/IS51602FM series full gigabit second layer network managed PoE switch has 16 gigabit network ports and 2 gigabit uplink SFP optical port slots. The 1-16 ports support IEEE 802.3af/at standard PoE power supply, with a single port PoE power of up to 30W. As a PoE power supply device, it can automatically detect and identify power-receiving devices that meet the standards and provide power to them through network cables. It can provide power to POE terminal equipment such as industrial wireless APs, network cameras, industrial control IP telephones, PLC modules, and industrial sensors through network cables, meeting the demand for high-density PoE power supply in industrial networking environments. It is suitable for industrial scenarios such as intelligent transportation, rail transit, power industry, mining, petroleum, maritime transportation, metallurgy, and green energy construction to form an economically efficient, stable, and reliable communication network.

The IPS51602FM has a network management function, supports IPV4 Static routing forwarding, supports complete security protection mechanism, perfect ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supporting multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and ERPS (<20ms) ring network protocols, improving link backup and network reliability. In the event of a one-way network failure, communication can be quickly restored, ensuring uninterrupted communication for important transmissions. According to practical application needs, PoE power supply management, port flow control, VLAN partitioning, QoS, LACP, IGMP, and DHCP are configured through network management methods such as Web, CLI, SNMP, and Telnet. The switches are all made of aluminum alloy profiles with strong heat dissipation performance, ensuring their long-term stable operation in outdoor high-temperature environments. The business ports support 6KV electrostatic lightning protection, redundant dual power input interfaces, and rail-mounted installation, making them the best choice for you to form a ring network and access a multi-business network.

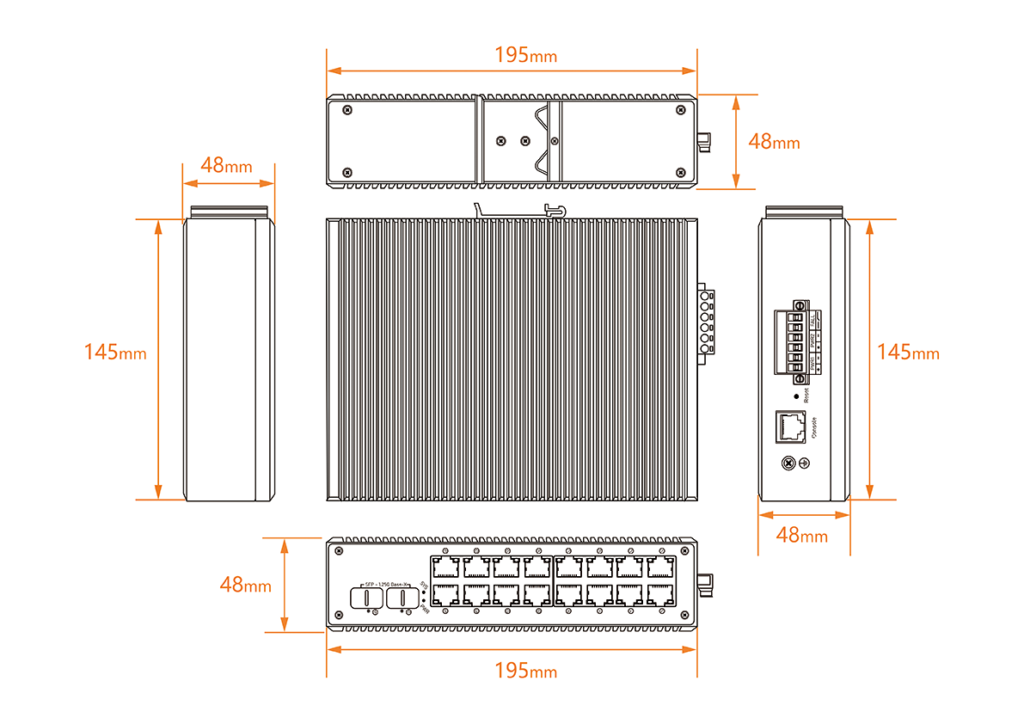

Product size

Installation Description

1. Incline the equipment upward, and use the snap ring at the upper end of the equipment buckle outside the DIN rail;

2. Press the device down and use the lower part of the clip to fit into the DIN rail

3 Check whether it is stable after fastening

• Single port PoE power up to 30W, af/at adaptive, widely compatible with various network terminals;
• Dual optical port uplink port, long-distance transmission, suitable for cascading and expanding various ring/chain networks, making networking simpler;
• Full gigabit high-speed transmission, stable and guaranteed high bandwidth transmission, supporting speed and flow control per port, achieving 10M/250-meter long-distance transmission, easily solving long-distance communication and power supply problems, and meeting different user needs;
• Industrial grade high bandwidth switching chip, high backplane, large cache, reducing network congestion;
• Support IEEE802.3X full duplex intelligent flow control, with no lag in high-definition transmission of large code streams;
• Support automatic learning and updating of MAC addresses, and support automatic port flipping (Auto MDI/MDI-X) function;
• The business port supports 6KV surge (lightning) protection, PoE short circuit, and overload protection, making it safer and more reliable to use;
• Aluminum alloy profile metal shell, strong heat dissipation, shielding interference, sturdy, rust resistant, and more durable;
• Dual DC redundant power interface, DC48-57V wide voltage input, meeting the wide voltage requirements of the industrial environment;
• DIN35 rail type installation, IP40 protection level, wide temperature design from -40 ℃ to+75 ℃, more stable and reliable for applications in harsh environments;
• Low power consumption, fan-free silent design, easy to install and use.
