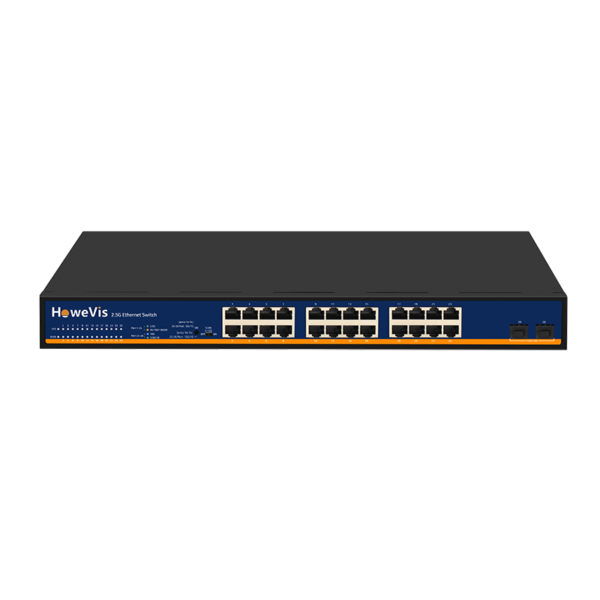

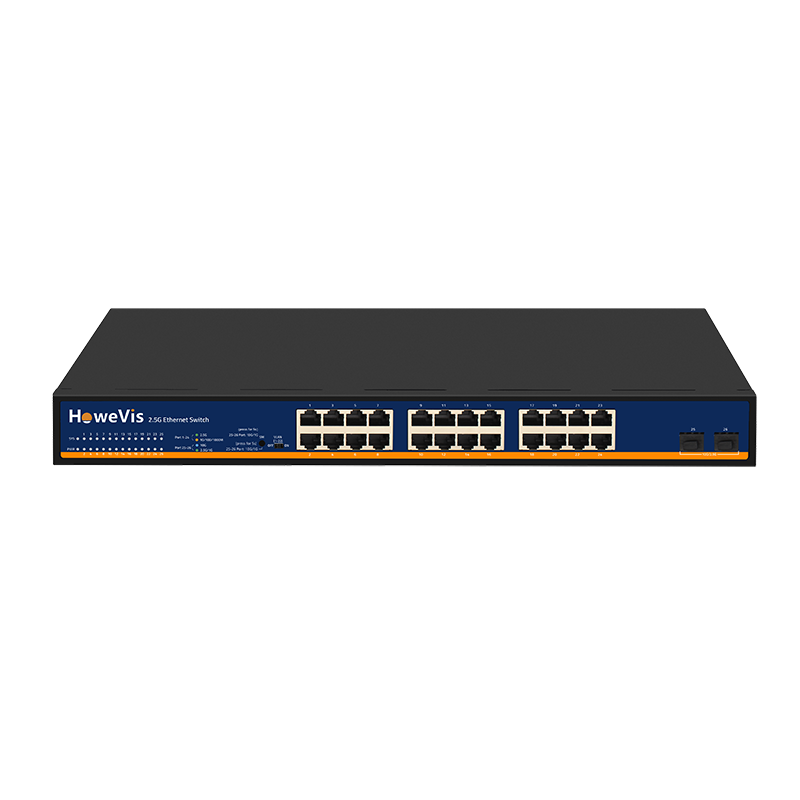

HoweVision 26 Port 10G Uplink 2.5G Ethernet Switch, using high quality and high-speed network chip solution. This switch has 24* 100/1000/2500M RJ45 ports and 2* 10G SFP+ ports, providing a seamless connection to 10/100/1000/2500M Ethernet for easy management and maintenance. This switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.

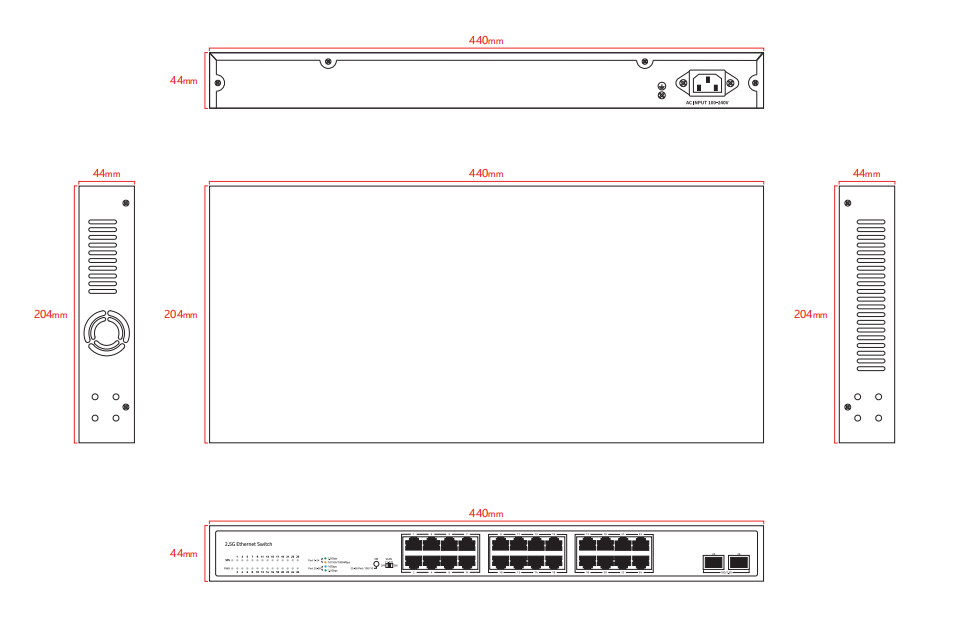

Product Dimension
| Model | SW62402TF |
| I/O Interface | |
| Power | AC 100-240V |
| Ethernet | 24* 100/1000/2500 Mbps RJ45 Ports 2* 10G SFP+ Ports |
| Performance | |
| Bandwidth | 160Gbps |
| Packet Forwarding Rate | 119.04Mpps |
| VLAN | 4096 |
| MAC Address Table | 16K |
| Jumbo Frame | 15Kbytes |
| Transfer Method | Storage and forward |
| MTBF | 100000 小时 |
| Standard | |
| Network Protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5(Surge) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m) 2.5GBase-T: Cat5e or above UTP/STP(≤100m) 5GBase-T: Cat6 or above UTP/STP(≤100m) 10GBase-T: Cat6a or above UTP/STP(≤100m) |
| Network Medium | 1000BASE-SX: 62.5μm MMF(multi mode) (Minimum range：2m～275m) or 50μm MMF 1000BASE-LX: 62.5μm/50μm MMF(Minimum range：2m～550m) or 10μm SMF(Minimum range：2m～5km) 2500BASE-X: G.652D SMF(Single mode) (Minimum range：2m～500m or 2m～5Km) 10GBASE-SR: OM1/OM2/OM3 or above MMF(Operating range：2m～300m) 10GBASE-LR: IEC B1.1 and B1.3 SMF(Minimum range：2m～10km) |
| Certificate | |
| Safety Certificate | CE, FCC, RoHS |
| Environment standard | |
| Working Environment | Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
| Indicator | |
| PWR | On: Powered on Off: Powered off |
| 1-24 ports | Green on: 2.5G Link connect normal Yellow on: 10/100/1000M Link connect normal Off: Link off Flashing: Data transmitting |
| 25-26 Ports Green Light | On: 10G Link connect normal Off: Link off Flashing: Data transmitting |
| Dialing | On: VLAN mode is enabled (ports 1 to 22 are isolated and can only communicate with the uplink port) Off: VLAN mode is off (all ports can communicate with each other) |
| Physical Specification | |
| Structure Size | Product Size: 440*204*44.5mm Package Size: 500*290*85mm Product Net-Weight: KG Product Gross-Weight: KG |
| Packing Info | Carton size: 520*445*310mm Packing Qty: 5 pcs Packing weight: KG |
| Power Voltage | AC 100-240V 12V 4A |
| Power | ≤36W |
| Packing List | 1 switch, 1 adapter, 1 manual, 1 certificate |
| Order Info | |
| SW62402TF | 26 Port 10G Uplink 2.5G Ethernet Switch |
