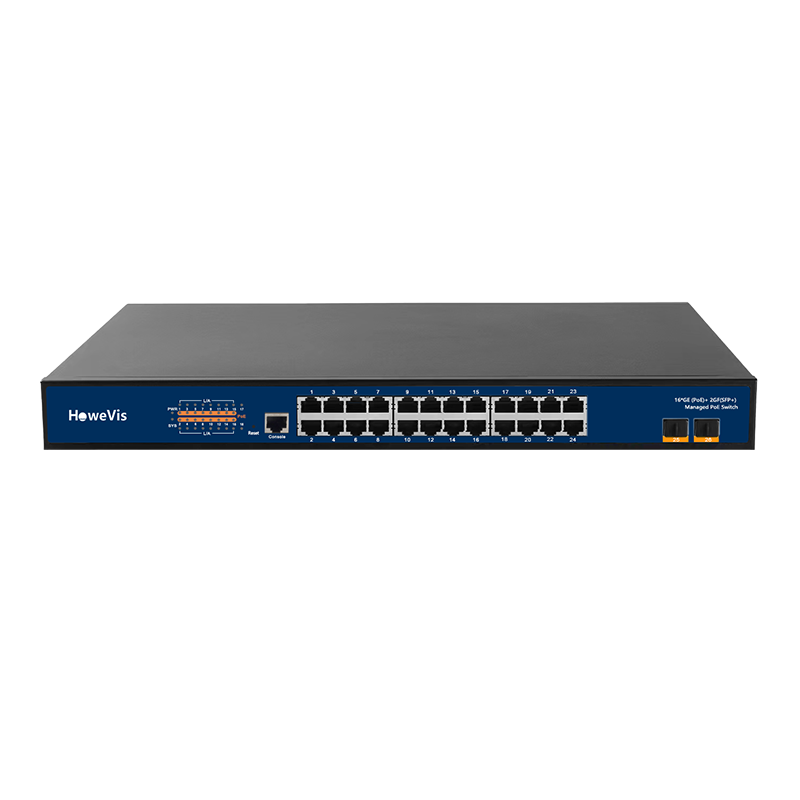

26 Ports 10/100/1000M Web Smart Managed PoE Switch with 2 Gigabit SFP

  • Model: PS52402FML /SW52402FML
  • 24x 10/100/1000M Ethernet RJ45 ports+ 2x Gigabit SFP
  • DC9-56V, DC48-56V ( PS52402FML)
  • -20 to 55 degrees Coperating temperature
  • CE, FCC, RoHS, CCC
  • 3-year warranty
  • OEM/ODM is available

Contact Your Specialized Engineer

The series full Gigabit Lite managed network switches have 24 Gigabit ports + 2 Gigabit port slots. The PS52402FML service ports are all supported by 4KV electrostatic lightning protection.

PS32402PFM as a PoE-powered device, can automatically detect and recognize powered devices that meet the standard and supply power to them through the network cable. It can automatically detect and identify the standard-compliant powered devices and supply power to them through the network cable.

The PS52402FML can be used to supply power to wireless APs, webcams, network telephones, building visual access control, and other POE terminal devices through the network cable to meet the demand for high-density PoE power supply for network environments, suitable for hotels, campuses, parks, supermarkets, banks, scenic spots, factories, dormitories, and small and medium-sized SMBs to set up an efficient and economical network.

This switch supports WEB management and also supports SNMP protocol, which is convenient to integrate into the local LAN management platform. It supports ring network protocol RSTP (<50ms) to enhance link backup and network reliability, reduce the number of times of melting fibers and network nodes, and improve the efficiency of construction, and when the one-way network malfunctions, it can quickly restore the communication to ensure the uninterrupted communication of important transmission. It can realize security network topology management, link aggregation, port management, port mirroring, and remote operation and maintenance. The switch is highly reliable and easy to install and maintain, with a fast switching function, as well as multiple access ports, suitable for accessing LAN equipment of various sizes.

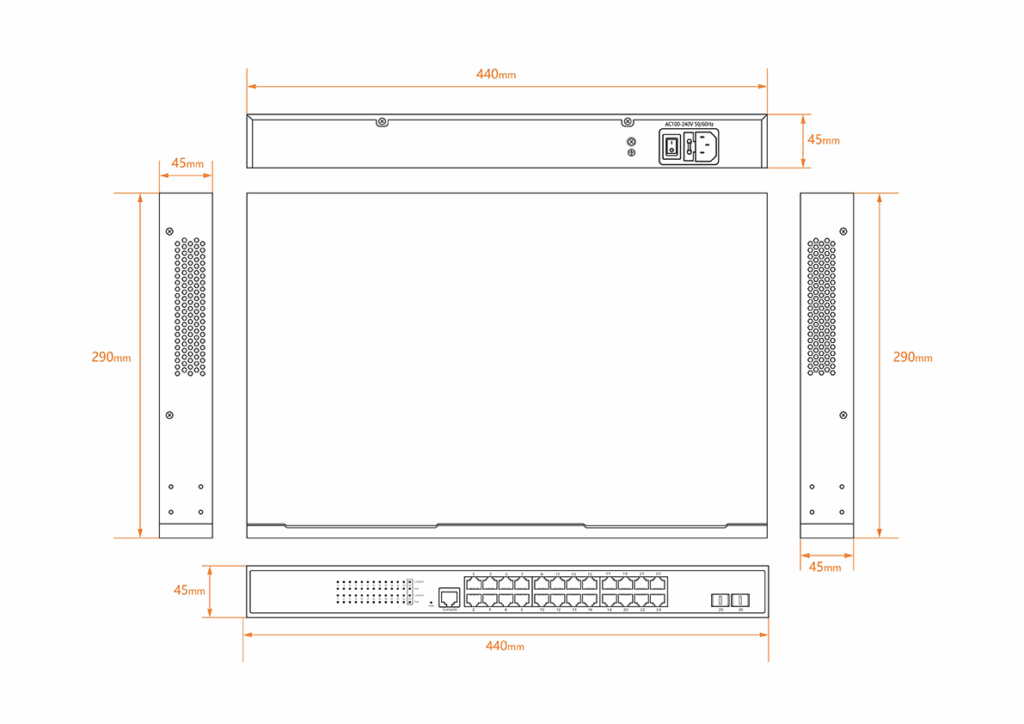

Product size

WordPress Tables Plugin

Product Characteristics

  • Single-port PoE power up to 30W, af/at adaptive, widely compatible with a variety of network terminals (PS51602FML)
  • support PoE network management, remote realization of POE port restart, real-time power status view(PS51602FML)
  • Dual optical uplink ports, long-distance transmission, suitable for a variety of ring/chain network cascade and expansion, networking is more simple;
  • Full Gigabit high speed rate transmission, high bandwidth transmission stability is guaranteed, support per port rate and flow control, to achieve 10M/250 meters long-distance transmission, easy to solve the problem of long-distance communication and power supply, to meet the needs of different users;
  • Enterprise-class high-bandwidth switching chip, high backplane, large cache, reduce network congestion;
  • Supports automatic learning and updating of MAC address, and automatic port flipping (Auto MDI/MDI-X) function;
  • The service port supports 4KV anti-surge (lightning) protection, PoE short-circuit and overload protection for safer and more secure use;
  • Steel forged metal casing, shielding interference, strong heat dissipation, sturdy, rust-proof and more durable;



Software Features

Extremely optimized, minimalist application

  • According to the application requirements, the switch abandons the complex network management configuration, and retains the practical network management functions, through the SNMP network management protocol, you can quickly realize the network deployment and centralized operation and maintenance, to achieve the customer's cost-effective product selection needs.
  • Visual network topology management, VLAN segmentation, QoS, link aggregation, loop protection, port mirroring, POE control(PS51602FML), port control, port isolation, port broadcast storm suppression, and bandwidth management functions.
  • Support remote upgrade, remote reboot, and restore factory settings.
  • Supports Web network management (HTTP/HTTPS), SNMP management and maintenance.
  • Support LLDP, convenient for network management systems to query and judge the communication status of links.
