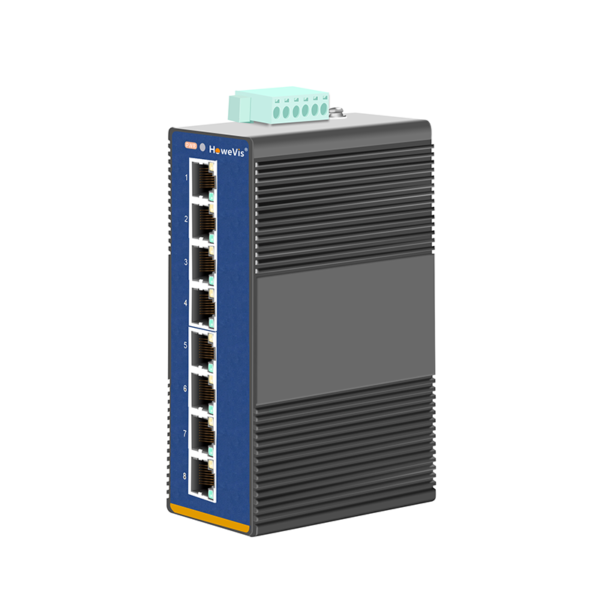

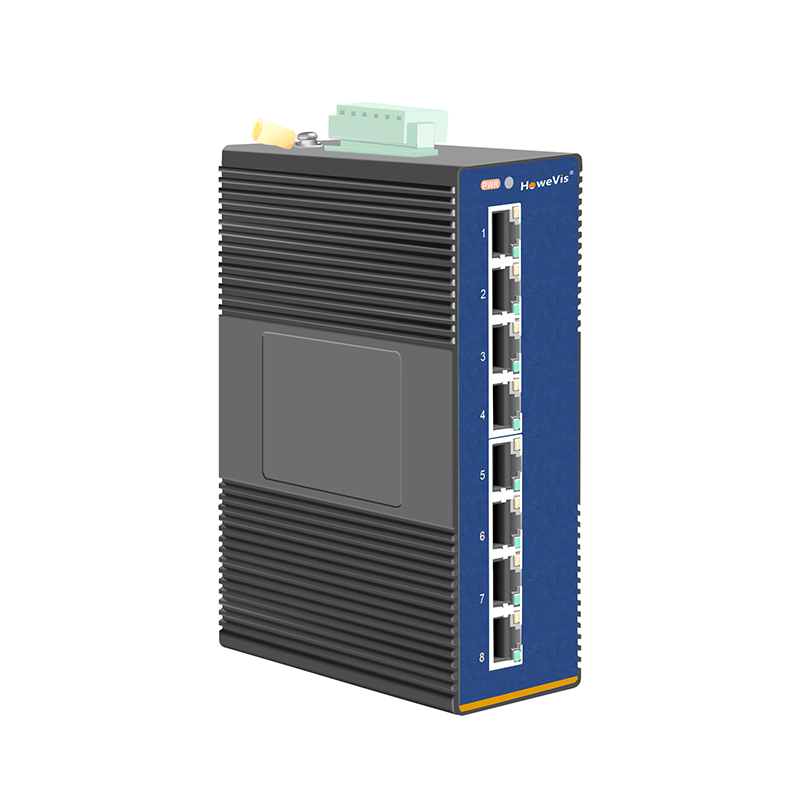

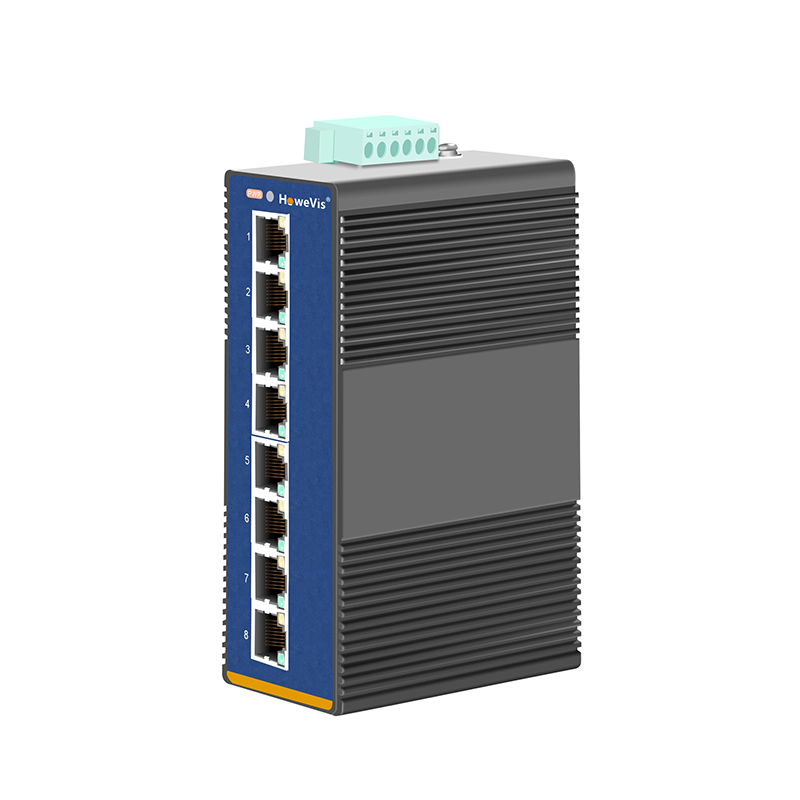

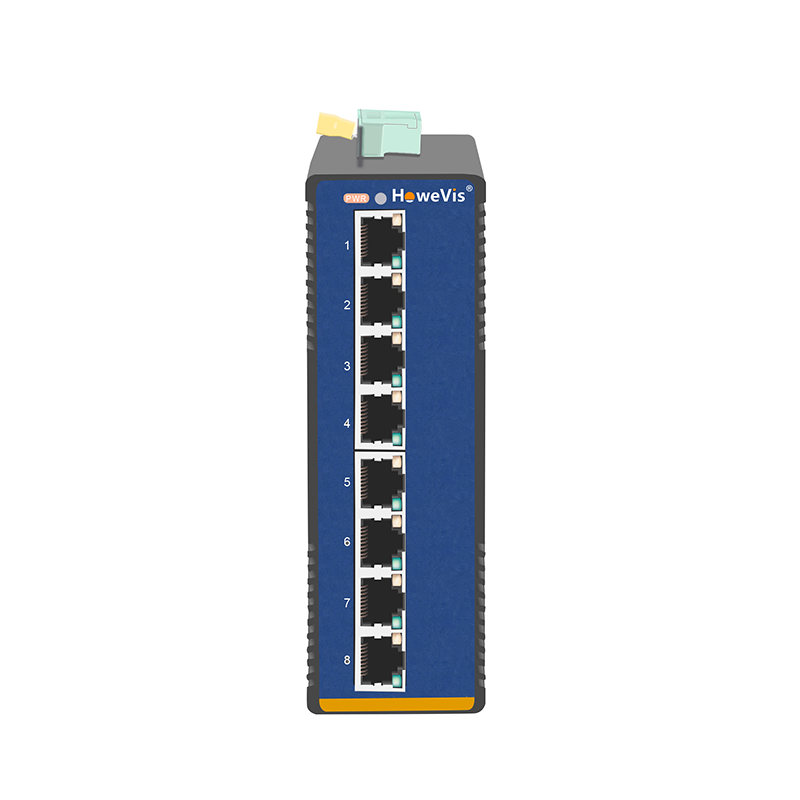

8-port 10M/100/1000M ethernet ports industrial-grade ethernet switch, supporting 8-port 10/100/1000Base-TX ethernet port. Products comply with FCC, CE, and ROHS standards. This swtich has a working temperature of -40℃～85℃, with super robustness, can adapt to various harsh environments, and can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, IP40 protection grade shell, and LED indicator, all make the switch a piece of plug-and-play industrial-grade equipment, using high-quality high-speed network IC,providing a reliable and convenient solution for users' networking of Ethernet equipment. It can be widely used in smart cities, smart transportation, smart pipe corridors, smart industry, and other industrial scenarios with Ethernet access.

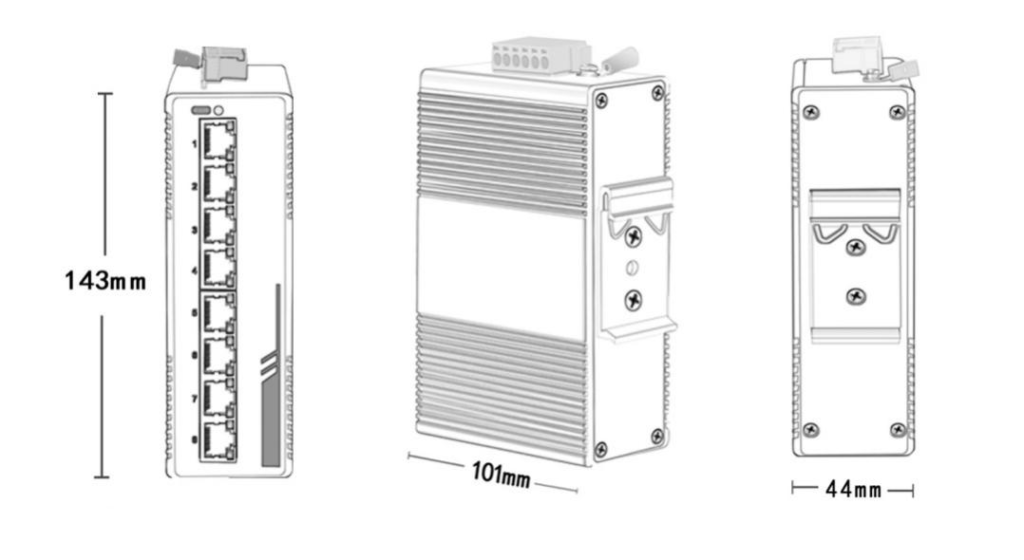

Product size

Installation Description

The industrial Ethernet switch adopts DIN card rail installation

1: Incline the equipment upward, and use the snap ring at the upper end of the equipment buckle outside the DIN rail;

2: Press the device down and use the lower part of the clip to fit into the DIN rail

3: Check whether it is stable after fastening

• Ensure reliable data transmission, and long working span life.
• Support full-duplex or half-duplex mode, with auto-negotiation capability.
• The network port supports automatic cross-recognition.
• Built-in store and forward mechanism, support multiple protocols.
• Green energy saving, Use low-power consumption CPU.
• Working power supply: DC 12V-52V provides reverse connection protection and 4A overcurrent protection.
• Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
• Lightning electrical surge pound protection (power supply): 5000A (surge waveform is 8/20μs).
• To meet the industrial-grade operation standards, the mean time between failure is more than 300,000 hours.
