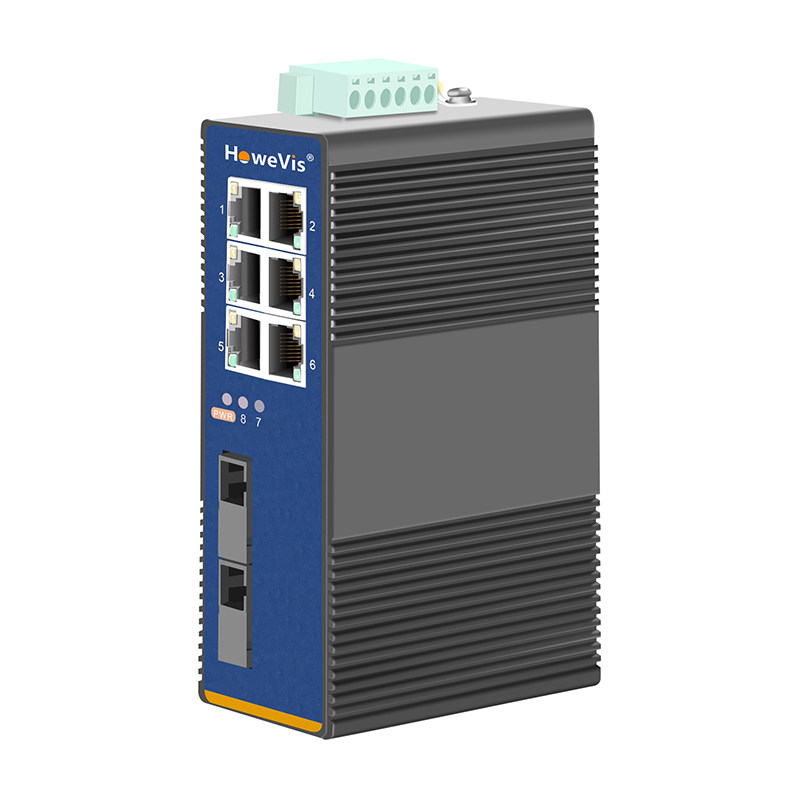

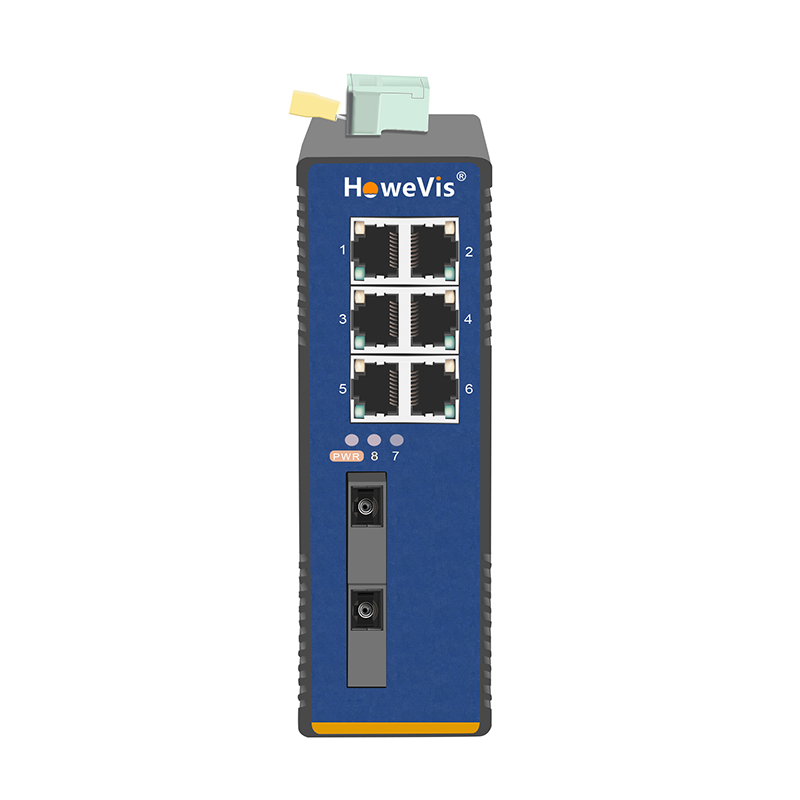

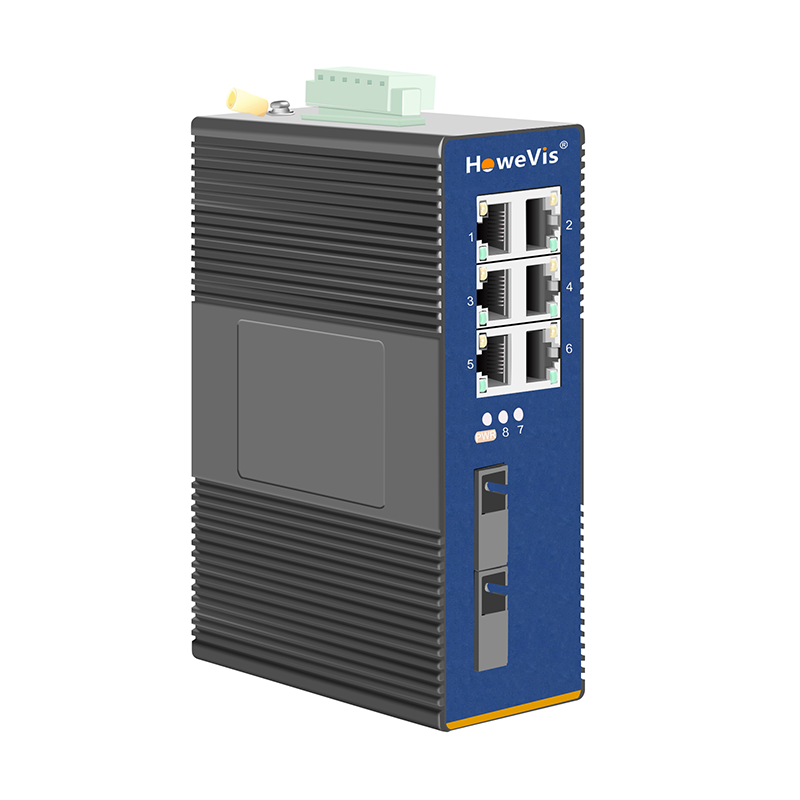

6 Ports 100M PoE electrical ports + 2 Ports 100M FX optical ports Industrial Ethernet PoE switch, supporting 4 10Base-T / 100base TX electrical ports and 2 100Base-X optical ports.. The products comply with FCC, CE, and ROHS standards. The switch has a working temperature of - 40℃ ~ 85℃, has super firmness, can adapt to various harsh environments, and can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, IP40 protection grade shell, and LED indicator light make switch a piece of plug-and-play industrial equipment, using high-quality high-speed network IC and the most stable The  chip, provide reliable and convenient solutions for users' Ethernet equipment networking, and can be widely used in industrial scenarios of Ethernet access such as smart city, smart transportation, smart pipe gallery, and smart industry.

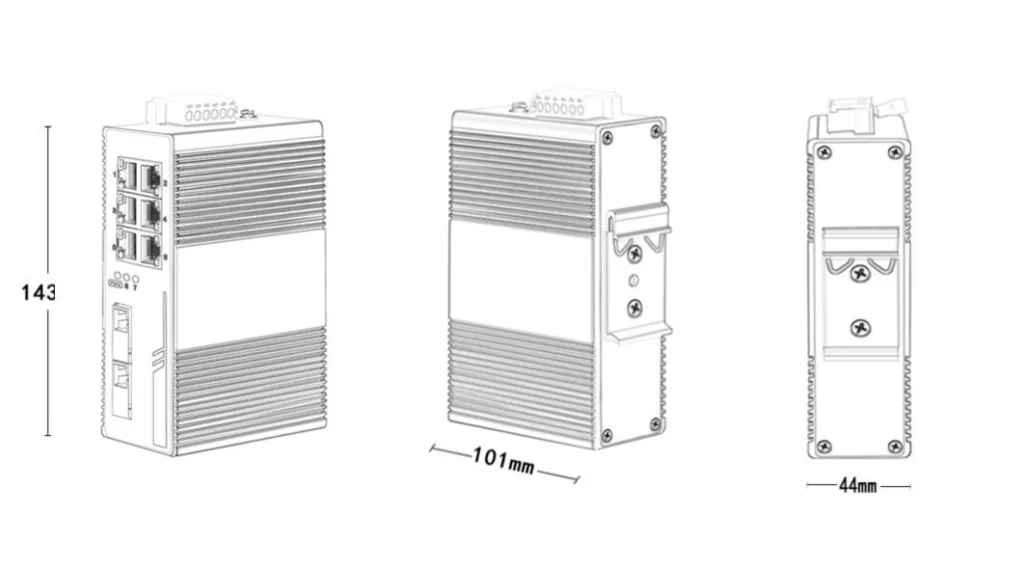

Product size

Installation Description

The industrial Ethernet switch adopts DIN card rail installation.

1: Incline the equipment upward, and use the snap ring at the upper end of the equipment buckle outside the DIN rail.

2: Press the device down and use the lower port of the clip to fit into the DIN rail.

3: Check whether it is stable after fastening.

• High quality photoelectric integrated module is adapted to provide good optical and electrical characteristics.
• Ensure reliable data transmission and long service life.
• It supports full duplex or half duplex mode with automatic negotiation capability.
• The network interface supports full-automatic intersection recognition.
• The built-in store and forward mechanism supports a variety of protocols.
• Green energy saving, using low-power CPU.
• Working power supply: DC 12V-52V provides reverse connection protection and 4A overcurrent protection.
• Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
• Use SC / FC / StT/ SFP optical fiber interface.
• Lightning surge protection (power supply): 5000A (surge waveform is 8 / 20 μ s).
• It meets the industrial operation standard, and the mean time between failures is more than 300000 Hours.
•
