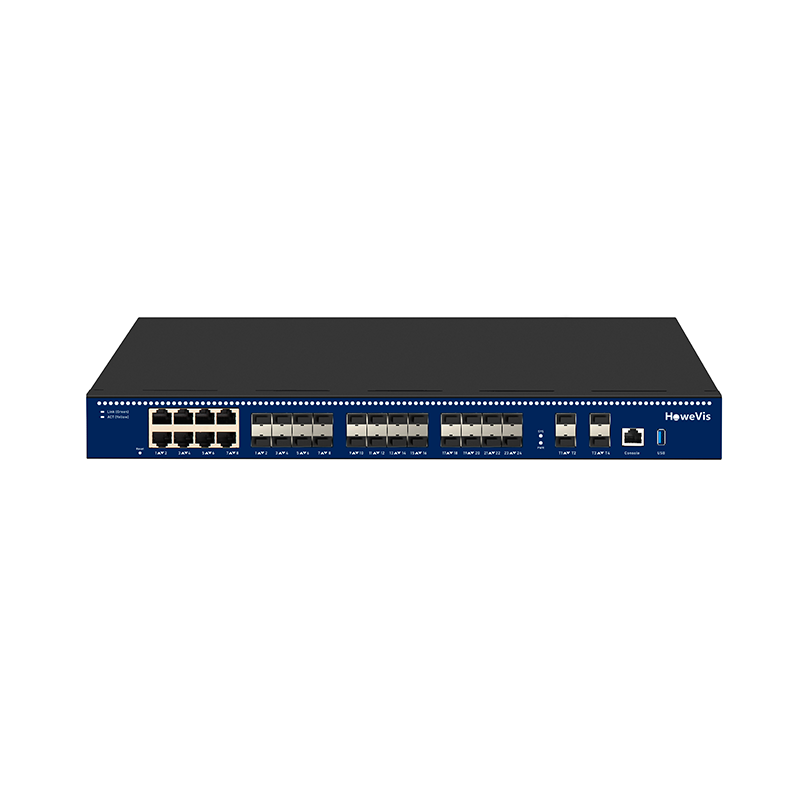

FS5168C04TM series 10GbE uplink Layer 3 managed Ethernet switch with 8 Gigabit Ethernet ports (Combo) + 16 Gigabit SFP optical port slots + 4 10GbE uplink SFP+ optical port slots, all ports support wire speed forwarding.

FS5168C04TM is equipped with an L3 network management function, supports IPV4/IPV6 static/dynamic route forwarding, complete security protection mechanism, perfect ACL/QoS policy, and rich VLAN function, which is easy to manage and maintain. Supports a variety of network redundancy protocols STP/RSTP/MSTP (<50ms) and ERPS (<20ms) ring network protocols to enhance link backup and network reliability, when a one-way network failure, communications can be quickly restored to ensure uninterrupted communication of important transmissions. According to the actual application needs, through the Web, CLI, SNMP, Telnet and other network management methods, IP management, port flow control, VLAN division, QoS, LACP, IGMP and DHCP, security policy and other applications and business configuration.

FS5168C04TM is fully compliant with product design and materials, the shell is made of aluminum alloy to enhance the heat dissipation efficiency, it has excellent adaptability to the field environment (including mechanical stability, climate environment adaptability, electromagnetic environment adaptability, etc.), the service ports support 6KV electrostatic surge protection, the protection level reaches IP40, it supports dual redundant power supply of AC+DC, low-power consumption, and fanless heat dissipation technology, MTBF average trouble-free operation time up to 35 years, and a very long 5-year warranty. Fan cooling technology, MTBF average trouble-free working time of up to 35 years, long 5-year warranty. Suitable for intelligent transportation, rail transportation, electric power industry, mining, oil, shipping, metallurgy, pipeline corridors green energy construction, and other scenarios to form a cost-effective, stable, and reliable communication network.

Product Characteristics

• Multi-optical port aggregation/core switch, fiber optic long-distance transmission, adapted to a variety of ring/chain network networking cascade and expansion, all-fiber optic aggregation networking, compared with the transceiver pair transmission, fewer nodes, networking and maintenance is simpler;
• Full Gigabit high-speed rate transmission, 10 Gigabit bandwidth uplink, high bandwidth transmission stability is guaranteed, support per port rate and flow control, to achieve 10M/250 meters long-distance transmission, easy to solve the problem of long-distance communication of the network cable, to meet different user needs;
• -grade high-bandwidth switching chip with a high backplane and large cache to reduce network congestion;
• Support IEEE802.3X full duplex intelligent flow control, large bit stream HD transmission without lag;
• Supports automatic learning and updating of MAC address, and automatic port rollover (Auto MDI/MDI-X) function;
• The service port supports 6KV anti-surge (lightning) protection, power short-circuit and overload protection for safer and more secure use;
• Aluminum alloy profile metal shell, strong heat dissipation, shielding interference, strong, rust-proof more durable;
• AC+DC dual redundant power supply interface, in line with the  application environment AC/DC power supply requirements;
• Standard 1U rack mounting, IP40 protection level, -40℃ to +75℃ wide temperature design, more stable and reliable in harsh environments;
• Low power consumption, fanless and silent design, easy to install and use.

Software Features

Strong operational capabilities

• Support 128 entries IPV4/IPV6 static/dynamic routes, support ARP protocol, maximum 1024 entries, support IPV4/IPV6 management.
• Flexible port bandwidth and traffic configuration, optical port DDMI digital diagnostic function, easy to realize the fine management of the network.
• Support IEEE 802.1Q VLAN, support protocol VLAN, support QinQ VLAN, the user can be flexible according to the needs of VLAN.
• Supports QoS, three priority modes based on port, based on 802.1P and based on DSCP and four queue scheduling algorithms, Equ, SP, WRR and SP+WRR.
• Supports ACLs, which provide flexible security access control policies by configuring matching rules, processing operations, and time permissions to achieve filtering of packets.
• Supports IGMP V1/V2/V3 multicast protocol and IGMP SnoopingV1/V2/V3 to meet the needs of multi-terminal HD video surveillance and video conference access.
• Supports STP/RSTP/MSTP production tree protocols and ERPS fast ring protocols to eliminate Layer 2 loops and realize link backup.
• Supports static aggregation and dynamic aggregation (LACP) to effectively increase link bandwidth, achieve load balancing, link backup, and improve link reliability.

Complete safety features

• Support WEB interface user authentication
• Supports CPU protection to prevent large data streams from attacking the switch itself
• Supports 802.1x authentication, remote RADIUS, TACACS+ authentication
• The hardware supports IP ACL, MAC ACL, ACL port filtering function, MAC address binding, and port-based IP+MAC+Vlan+Port multiple binding function.
• Support DHCP Snoopingv1/v2/v3 function, port isolation function, and port broadcast storm suppression function.

Convenient operation and maintenance management

• Supports diverse management and maintenance methods such as Web-based network management, CLI command line (Console, Telnet), and SNMP (V1/V2c/V3).
• Support HTTP/HTTPS, SSH and other encryption methods, more secure management.
• Support HTTP/TFTP to realize firmware update/upgrade, support configuration file upload/download, one-key restore system configuration.
• Supports RMON, system logs, and port traffic statistics for network optimization and transformation.
• Support LLDP, convenient for network management system to query and judge the communication status of links.
• Supports CPU monitoring, memory monitoring, Ping detection, cable detection.
