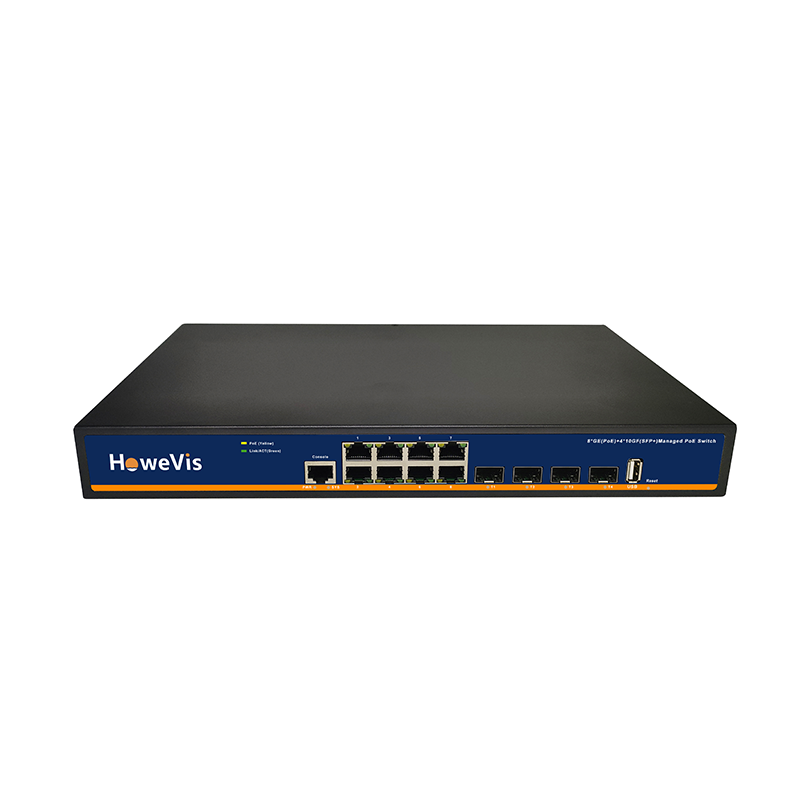

The series 10Gbps uplink Layer 3 managed network switches have 8 Gigabit Ethernet ports + 4 10Gbps uplink SFP+ optical port slots. The service ports of the switch support 4KV electrostatic lightning protection, and it can provide network for wireless APs, network cameras, network phones, building visual access control and other terminal equipment through the network cable, which is suitable for hotels, campuses, parks, supermarkets, banks, scenic spots, factories, dormitories, as well as small and medium-sized small and medium-sized enterprises to set up a cost-effective and efficient network.

This switch is equipped with an L3 network management function, supports IPV4/IPV6 static/dynamic route forwarding, complete security protection mechanism, perfect ACL/QoS policy, and rich VLAN function, which is easy to manage and maintain. Supports a variety of network redundancy protocols STP/RSTP/MSTP (<50ms) and ERPS (<20ms) ring network protocols to enhance link backup and network reliability, when a one-way network failure, communications can be quickly restored to ensure uninterrupted communication of important transmissions. According to the actual application needs, through the Web, CLI, SNMP, Telnet and other network management methods, PoE power supply management, port flow control, VLAN division, QoS, LACP, IGMP and DHCP, and other applications and services configuration. The switches are made of an aluminum alloy shell, super heat dissipation performance, to ensure their long and stable operation in outdoor high-temperature environments, service ports support 6KV electrostatic lightning protection, redundant dual power input interfaces, DIN-rail mounting, it is the best choice for you to set up a ring-type network and multi-service network access.

Product Characteristics

• Single-port PoE power up to 30W, af/at adaptive, widely compatible with a variety of network terminals;(PS50804TFM)
• Optical hybrid uplink port, flexible adaptation of network cable and fiber optic connection, adapt to a variety of networking cascade and expansion, networking is more simple;
• 10Gb uplink high-speed transmission, high bandwidth transmission stability is guaranteed, support per-port rate and flow control, to achieve 10M/250m long-distance transmission, easy to solve the problem of long-distance communication and power supply to meet the needs of different users;
• -grade high-bandwidth switching chip with high backplane and large cache to reduce network congestion;
• Support IEEE802.3X full duplex intelligent flow control, large bit stream HD transmission without lag;
• Supports automatic learning and updating of MAC address and automatic port rollover (Auto MDI/MDI-X) function;
• The service port supports 6KV anti-surge (lightning) protection, PoE short-circuit and overload protection for safer and more secure use;
• Aluminum alloy profile metal shell, strong heat dissipation, shielding interference, strong, rust-proof more durable;
• Dual DC redundant power supply interface, DC48-57V wide voltage input, in line with the wide voltage requirements of environments;
• DIN35 DIN-rail mounting, IP40 protection level, -40℃ to +75℃ wide temperature design, more stable and reliable in harsh environments;
• Low power consumption, fanless and silent design, easy to install and use.

Software Features

Strong operational capabilities

• Supports 128 entries for IPV4 static routes, supports ARP protocol, up to 1024 entries.
• Flexible port bandwidth and traffic configuration, optical port DDMI digital diagnostic function, easy to realize the fine management of the network.
• Support IEEE 802.1Q VLAN, support protocol VLAN, support QinQ VLAN, the user can be flexible according to the needs of VLAN.
• Supports QoS, three priority modes based on port, based on 802.1P, and based on DSCP, and four queue scheduling algorithms, Equ, SP, WRR, and SP+WRR.
• Supports ACLs, which provide flexible security access control policies by configuring matching rules, processing operations, and time permissions to achieve filtering of packets.
• Supports IGMP V1/V2 multicast protocol and IGMP Snooping V1/V2/V3 to meet the needs of multi-terminal HD video surveillance and video conference access.
• Supports STP/RSTP/MSTP production tree protocols and ERPS fast ring protocols to eliminate Layer 2 loops and realize link backup.
• Supports static aggregation and dynamic aggregation (LACP) to effectively increase link bandwidth, achieve load balancing, and link backup, and improve link reliability.

Complete safety features

• Supports WEB interface user authentication.
• CPU protection is supported to prevent attacks on the switch itself from large data streams.
• Supports 802.1x authentication, remote RADIUS, and TACACS+ authentication.
• The hardware supports IP ACL, MAC ACL, ACL port filtering function, MAC address binding, and port-based IP+MAC+Vlan+Port multiple binding functions.
• Support DHCP Snoopingv1/v2/v3 function, port isolation function, and port broadcast storm suppression function.

Convenient operation and maintenance management

• Supports diverse management and maintenance methods such as Web-based network management, CLI command line (Console, Telnet), and SNMP (V1/V2c/V3).
• Support HTTP/HTTPS, SSH and other encryption methods, more secure management.
• Support HTTP/TFTP to realize firmware update/upgrade, support configuration file upload/download, one-key restore system configuration.
• Supports RMON, system logs, and port traffic statistics for network optimization and transformation.
• Support LLDP, convenient for network management system to query and judge the communication status of links.
• Supports CPU monitoring, memory monitoring, Ping detection, cable detection.
