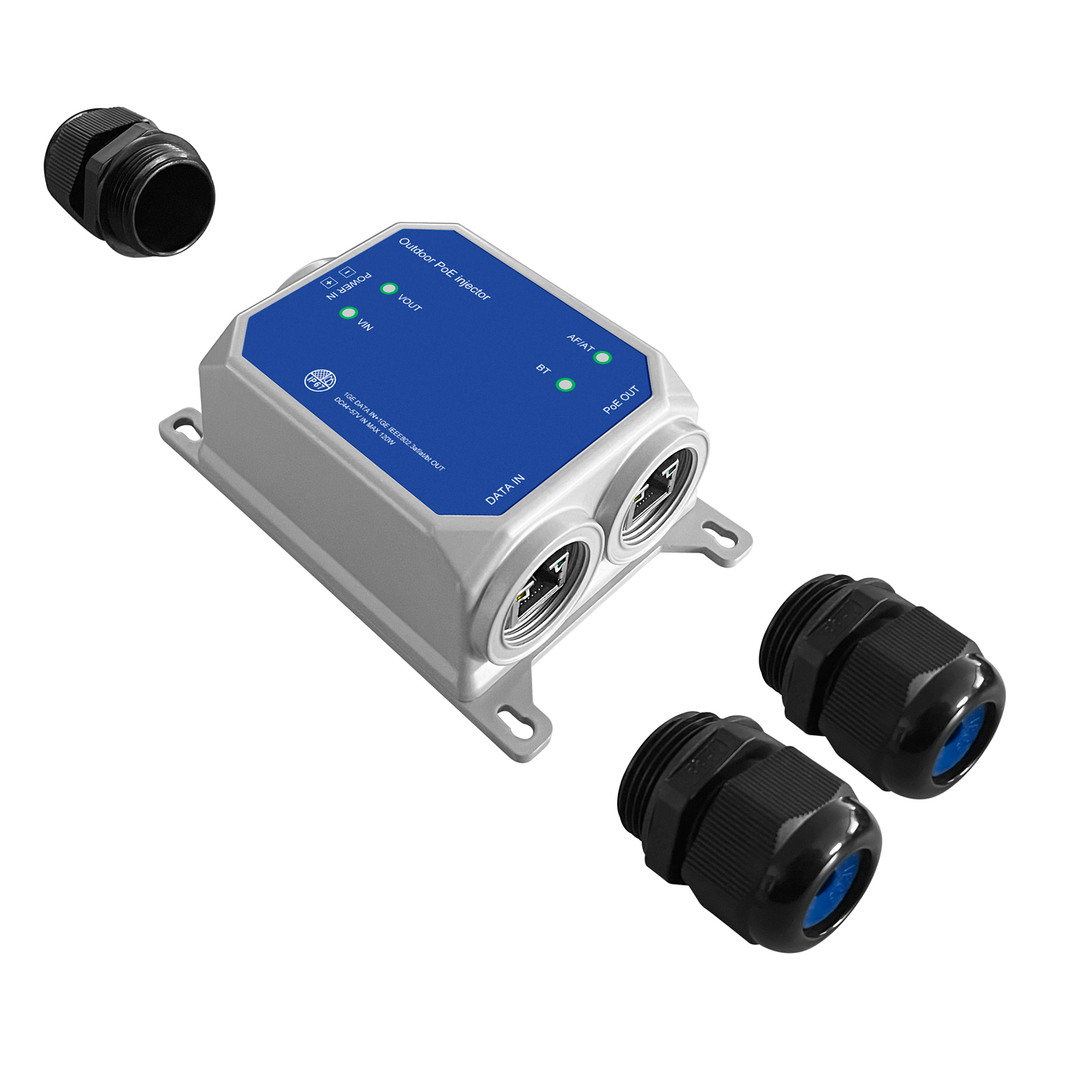

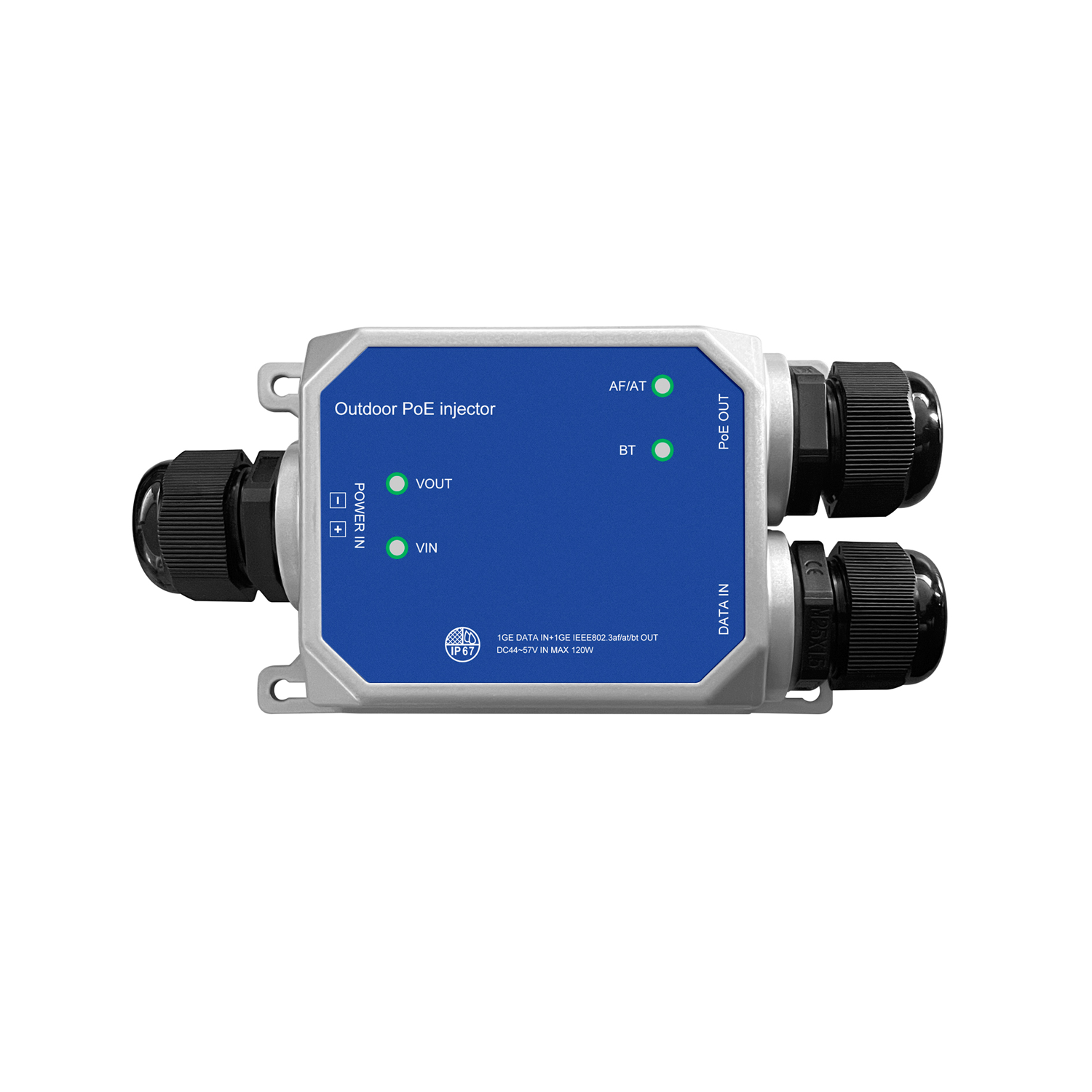

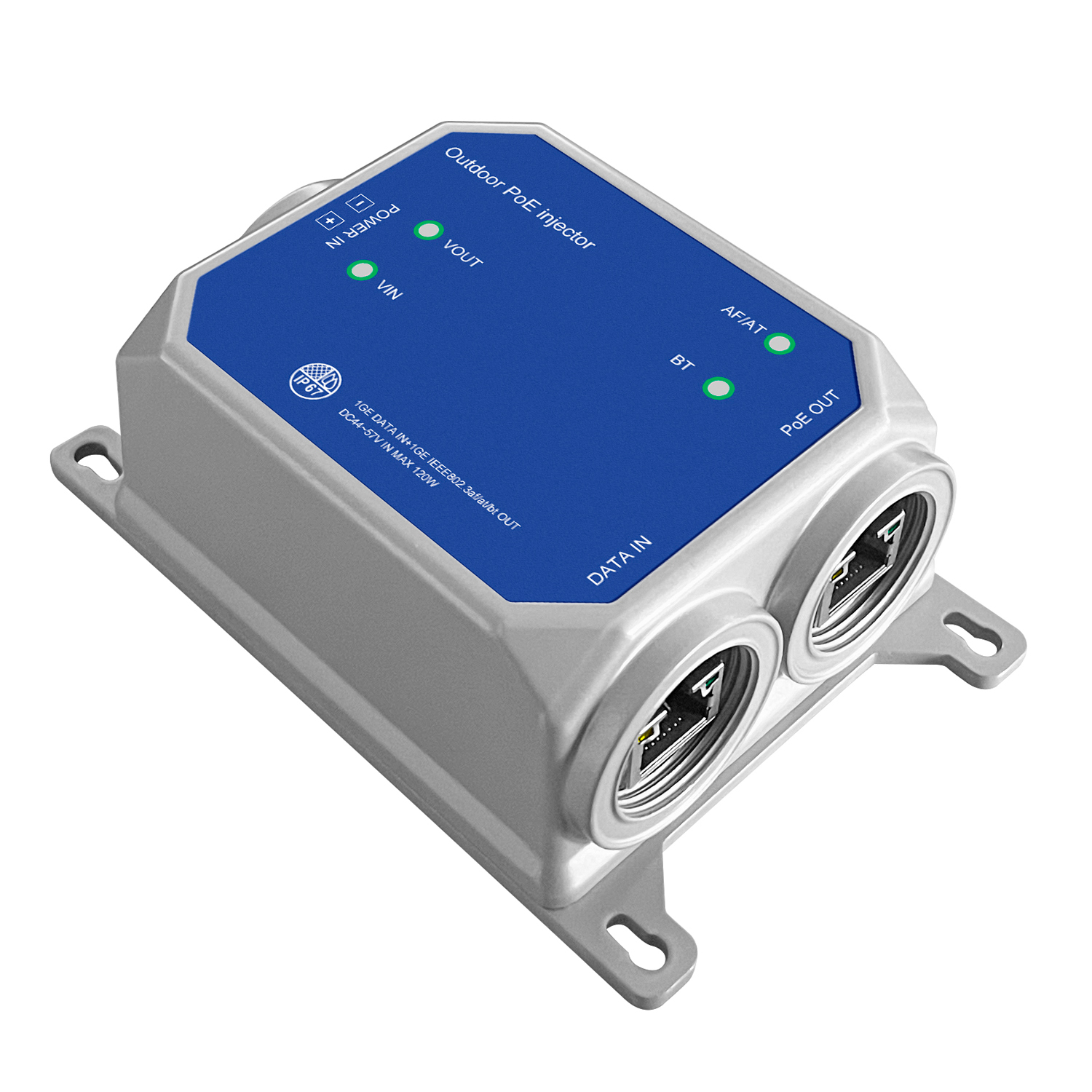

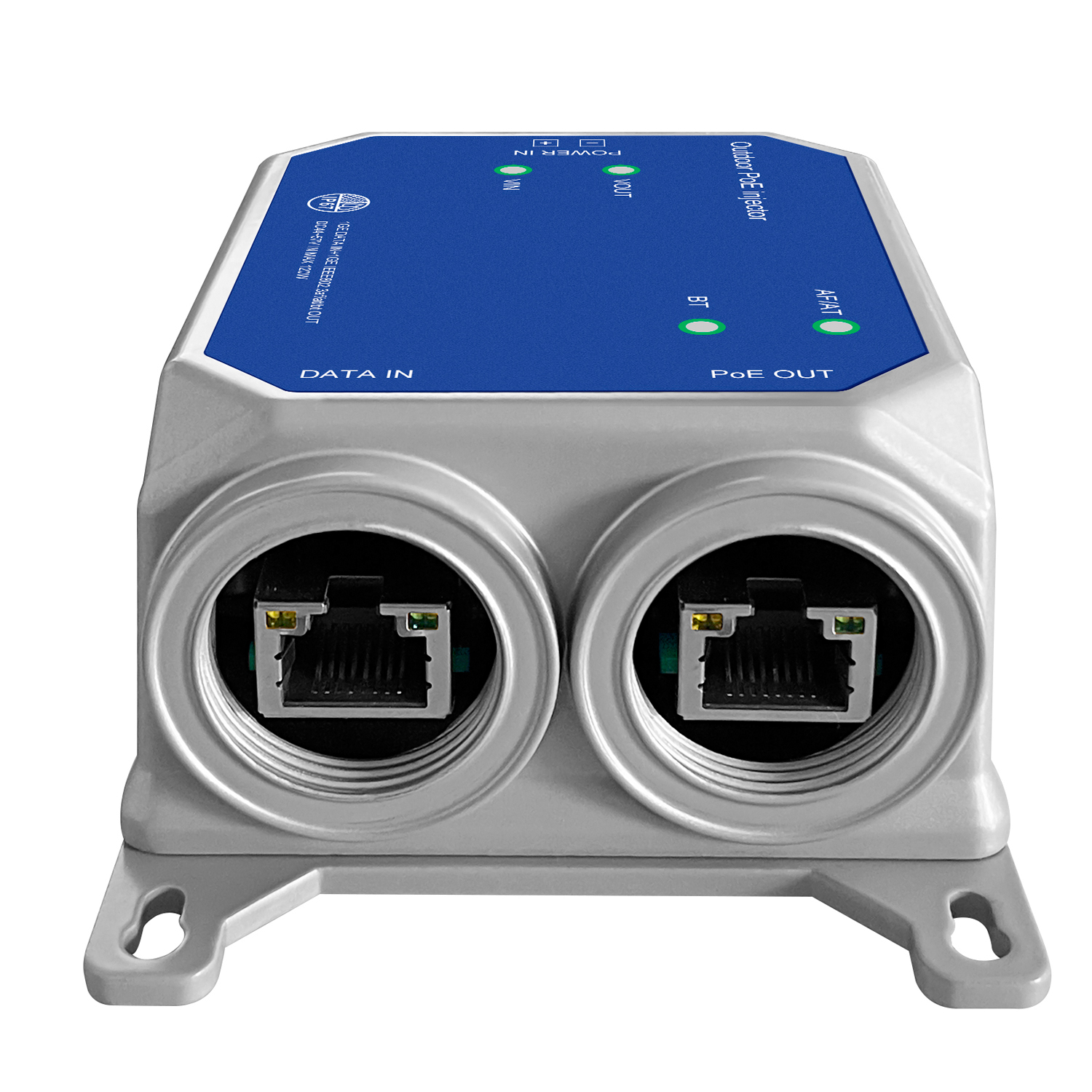

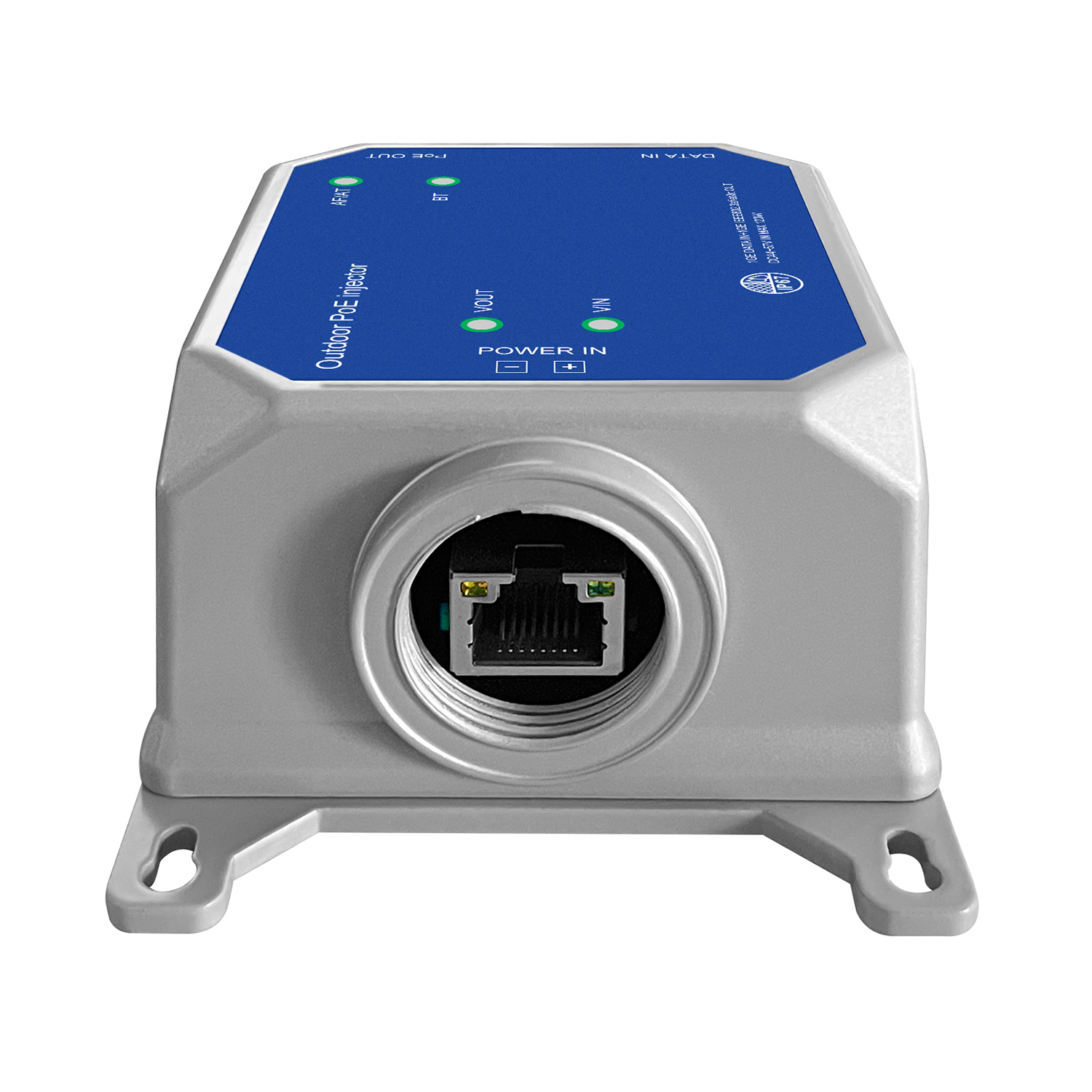

The WPSD is a rugged outdoor Gigabit PoE injector designed to deliver both power and data to remote devices like security cameras and wireless access points. Its key advantage is the IP67 waterproof rating, which provides complete protection against rain, dust, and harsh weather conditions. This ensures reliable, maintenance-free operation year-round, making it the perfect solution for durable and worry-free outdoor network installations.
| Model | WPSD501-30-24 |
| Product name | Gigabit IP67 outdoor waterproof POE injector |
| Material | Aluminum die-casting body Nylon waterproof joint connector |
| Waterproof grade | IP67 |
| Wire diameter | Support network cables with a diameter of 4-8mm |
| Fixed Port | 1*10/100/1000/2500Base-TX Data in 1*10/100/1000/2500Base-TX PoE out |
| DC in | 89-96%(DC9-36) MAX 45W 2P*3.5mm connection terminal |
| PoE OUT | Supports IEEE802.3af/at， max 30W PoE out |
| PoE OUT Pin | Af/at: 1,2,4,5 + 3,6,7,8- |
| POE out Transmission Distance | 10BASE-T：Cat3,4,5 UTP(≤250 meter) 100BASE-TX：Cat5 or higher grade UTP (150 meter) 1000BASE-TX：Cat6 or higher grade UTP (100 meter) |
| LED Indicator | PW: Power in led 48V: Input voltage is normal Af/at: Port af/at PoE out ON |
| Operating Temperature/Humidity | -40～+80°C；5%～90% RH Non coagulation |
| Storage Temperature/Humidity | -40～+90°C；5%～95% RH Non coagulation |
| Product /Packing size（L*W*H） | 170*77*43mm 210*103*57mm |
| N.W/G.W（kg） | 0.36 0.46 |
| Lightning Protection level | 6KV 8/20us； |
| Installation | Desktop、wall installation |
| Certificate | CE-EMC EN55032；CE-LVD EN62368； FCC Part 15 Class B；RoHS； |
| Warranty | Whole device for 1 year (Accessories not included) |
