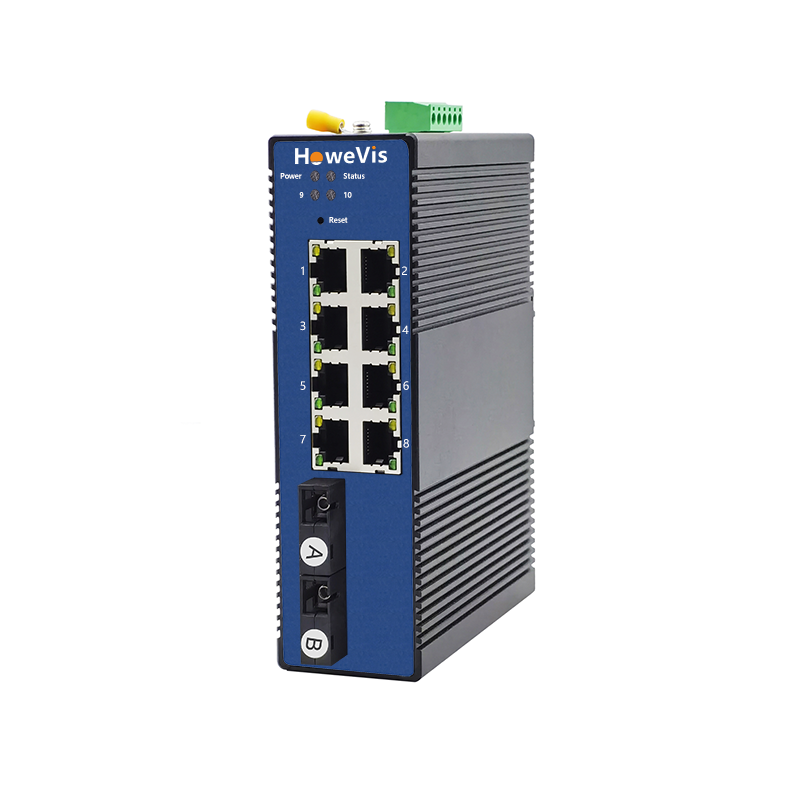

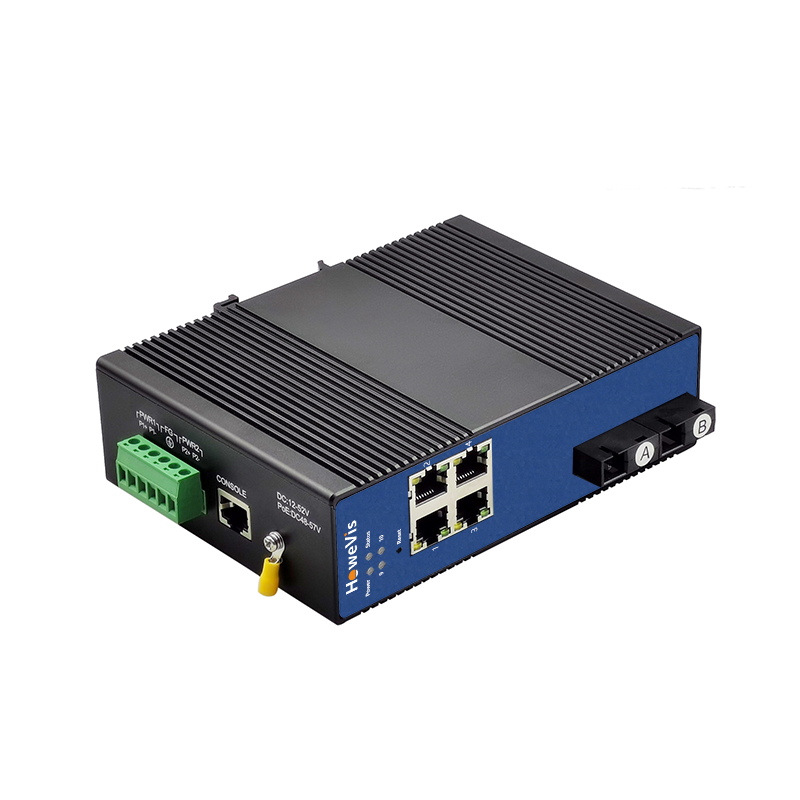

L2 Managed 10 Ports 10/100/1000M Industrial Network Switch with 2 Gigabit Optical Uplink

L2 management industrial switch, supporting 8 10/100/1000Base-T (X) ports and 2 1000Base-X optical ports. The product complies with FCC, CE, and RoHS standards. The managed swich has a working temperature of -40 ℃ to 85 ℃, and has strong durability to adapt to various harsh environments. It can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, and an IP40 protection level shell and LED indicator light, as well as the switch L2+integrated switch, security, and other rich protocols, while supporting public Ethernet multi-ring protection technology (ERPS), greatly improve network flexibility and enhance the reliability and security of industrial networks. This provides a reliable and convenient solution for the networking of Ethernet devices for users and can be widely applied in industrial scenarios such as smart cities, smart transportation, smart pipe corridors, and smart industries where Ethernet is connected.

Product size

Installation Description

The industrial Ethernet switch adopts DIN card rail installation

1: Incline the equipment upward, and use the snap ring at the upper end of the equipment buckle outside the DIN rail;

2: Press the device down and use the lower part of the clip to fit into the DIN rail

3: Check whether it is stable after fastening


Model	IPS50802FM-SS /IPS50802FM-SD /IPS50802FM-MD /IS50802FM-SS /IS50802FM-SD /IS50802FM-MD
Physical Port
RJ45 port and speed	8x10/100/1000Base-TX JR45 port
Fiber port and speed	2x1000Mbps FX optical port
Management Port	Support console
Parameters
Network protocol	IEEE802.3 - CSMA/CD；IEEE802.3i - 10Base-T；IEEE802.3u - 100Base-TX/FX；IEEE802.3x-flow control; IEEE802.3z - 1000Base-X；IEEE802.3ab - 1000Base-T
Switch Properties
Backboard bandwidth	20Gbps
Application layer	Layer 2
Whole machine packet forwarding rate	14.88Mpps
MAC Table	8K
Package buffer	4M
Delay time	<3 μ s
Exchange method	store forward
PoE (IPS50802FM-SS /IPS50802FM-SD /IPS50802FM-MD)
PoE standard	IEEE 802.3af/IEEE 802.3at PoE
Power budget	Max. PoE output power budget 30W
LED Indicator
Power indicator light	PWR interface indicator light: electrical port, optical port (Link/ACT)
Fiber	Link/Act: connect-always; data exchange-twinkle
Power Information
Power access mode	Phoenix terminal, DC seat
Redundant power input	DC9-56V DC48-56V ( IPS50802FM)
Overload protection	Yes
Power reverse	Support
Power consumption	Full-load<15W
Physical Property
Protection grade	IP40 protection level, metal shell
Cooling mode	IP40 protection level, metal shell
Dimensions	153mm x 112mm x 54mm (L x W x H)
Installation mode	DIN trail/wall-mountable
Weight	<1.0kg/ <1.3kg
Working Environment
Operating Temperature	-40℃~75℃
Operating Humidity	5%~90% non-condensing
Storage	-40℃~85℃
Warranty
MTBF	300,000 hours
Defects Liability Period	5 year warranty, lifetime technical support
Authentication	CE、FCC、RoHS、ISO9001、 Inspection report from the Ministry of Public Security and network access permit from the Ministry of Industry and Information Technology
Certification Standard
Applicable industry standards	IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC 61000-4-3 (RS): 10 V/m (80~1000 MHz) IEC61000-4-4 (EFT): power line: ±4kV; data line: ±2kV IEC61000-4-5 (Surge): Power line: CM±4kV/DM±2kV; Data line: ±4kV IEC 61000-4-6 (RF conduction): 10 V (150 kHz ~ 80 MHz) IEC61000-4-8 (magnetic field at work frequency): 100A/m continuous; 1000A/m , 1s to 3s IEC61000-4-9 (pulsed magnetic field): 1000A/m IEC61000-4-10 (damped oscillations): 30A/m 1MHz IEC 61000-4-12/18 (shock wave): CM 2.5kV, DM 1kV IEC61000-4-16 (common-mode conduction): 30V continuous; 300V, 1s FCC Part 15/CISPR22 (EN55022): Class A IEC 61000-6-2 (Generic Industrial Standard)
mechanical property	IEC 60068-2-6 (vibration resistance) IEC 60068-2-27 (shock resistance) IEC 60068-2-32 (free fall)

Software parameters


Software Management Features
Ports	Supports IEEE802.3x flow control (full-duplex), half-duplex backpressure flow control Supports forced port mode and rate Supports broadcast storm and port storm suppression Supports port traffic rate limiting with a minimum granularity of 16Kbps and a maximum of 1Gbps. Supports real-time port flow management (Flow Interval) Supports jumbo frame size control up to 16K packets Support optical port DDMI digital diagnostic function

IP routing	Supporting L2+ network management functions. Supports IPV4 static routes/default routes with up to 128 entries Supports ARP protocol with a maximum of 1024 entries

VLAN	Supports port-based VLANs (4K),IEEE802.1q VLANs Supports protocol-based VLANs Supports Access, Trunk, and Hybrid port configurations.

Port aggregation	Supports static aggregation and dynamic aggregation (LACP) Supports up to 5 aggregation groups, each aggregation group supports up to 8 ports

Ring Network Function	Support loop protection function Supports STP/RSTP/MSTP spanning tree protocols Support ERPS ring network (single-ring, multi-ring, intersecting ring and tangent ring configurations), ring self-healing time less than 20ms

Multicast	Supports IGMP Snooping v1/v2/v3 and up to 1024 multicast groups.

Mirroring	Supports bi-directional traffic mirroring on basic ports

QoS	Supports port-based, 802.1P and DSCP/ToS prioritization, and supports 8 output queues per port. Supports four priority scheduling modes: Equ, SP, WRR, SP+WRR. Support Priority Mark/Remark Supports flow-based rate limiting, packet filtering, redirection

ACL	Supports L2 to L4 packet filtering function, which can match the first 80 bytes of the message, and provides ACLs defined based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc. Supports port-based and VLAN-based ACL issuance

Safety Features	Supports user hierarchical management and password protection Supports port-based IEEE802.1X authentication Supports AAA & RADIUS with TACACS+ authentication Supports MAC address learning number limit Supports MAC address black hole, address binding Support SSH 2.0 to provide secure encrypted channel for user login Supports port isolation Supports ARP message speed limit function Supports IP source address protection Supports ARP intrusion detection Supports anti-DoS attacks Supports port broadcast message suppression Support for host data backup/restore mechanism IP+MAC+VLAN+Port Quad Binding Function

PoE Support optional	PoE port 1-8 PoE Protocol 802.3af, 802.3at PoE Pin Assignment 12+, 36- PoE Management mode support

DHCP	Support for DHCP Serve Support for DHCP Client Support DHCP Snooping v1/v2/v3

Management and Maintenance	Support for Web-based network management, CLI command line (Console, Telnet), SNMP (V1/V2c/V3) and other diversified management and maintenance Support for WEB-based network management (HTTP/HTTPS support) Support HTTP, TFTP file upload/download management Supports RMON 1, 2, 3 and 9 groups Support one key to restore factory settings Supports NTP clock and local clock Support for local logs and system logs (SYSLOG) Ping detection support Supports cable status checking Supports instant CPU utilization status view Supports Link Layer Discovery Protocol LLDP Support NMS platformized cluster unified management (LLDP+SNMP)

System requirements	Web Browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher Category 5 and above Ethernet cables. TCP/IP network adapter and operating system (e.g. Microsoft Windows, Linux or Mac OS)

Provide 8-gigabit downlink electrical ports, 2-gigabit uplink optical ports, and 1 console port
Support ERPS/STP/RSTP/MSTP/QOS/SNMP (V1, V2, V3)
SC/LC/FC/ST/Fiber optic interface optional
Scalable IEEE802.3af (15.4W)/at (30W)
Support wide temperature design -40 ℃~85 ℃ to meet harsh environmental application requirements
Support IP40 protection level fanless design
Aluminum alloy metal shell DIN rail installation, wall-mounted installation
Support dual power redundant backup input power supply: DC12-52V
EMC industrial level 4 electromagnetic anti-interference
Network interface lightning protection common mode ± 4KV differential mode ± 2KV
