- Hot-pluggable CFP form factor
- Support 103.125Gbps data rate
- CAUI-10 electrical interface
- MDIO digital diagnostic interface
Compliant with CFP MSA - Single 3.3V Power Supply
- Temperature Range: 0~ 70°C
- RoHS compliant

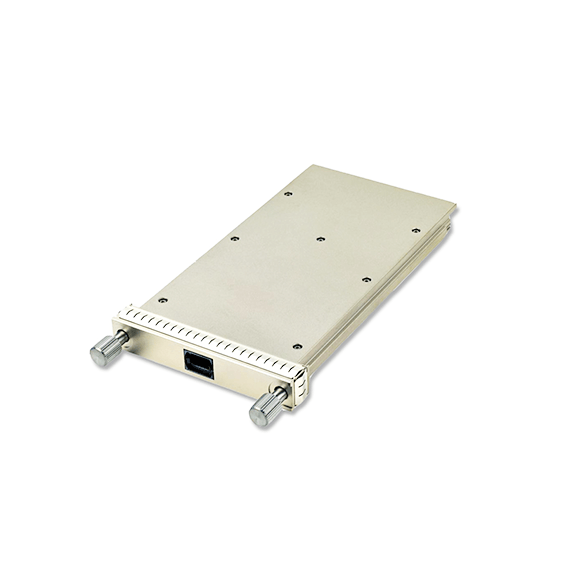

HoweVision 100G CFP Optical Transceivers comply with CFP MSA, and provides 100Gigabit Ethernet connectivity for high-speed computing networks, data center, service provider applications. It offers a variety options to meets the different requirement:
SCP-100G-SR10 CFP modules supports 103.125Gb/s Ethernet link up to 100m/150m over OM3/OM4 multimode fiber with MPO connector, compliant with IEEE802.3ba 100GBASE-SR10.
SCP-100G-LR4 CFP module supports 103.125Gb/s Ethernet link up to 10km over single mode fiber with duplex LC connectors, compliant with IEEE802.3ba 100GBASE-LR4.
SCP-100G-LR4-E CFP module supports 103.125Gb/s and 112Gb/s Ethernet link up to 10km over single mode fiber with duplex LC connectors, compliant with IEEE802.3ba 100GBASE-LR4 and OTN OTU4.
| Model Number | Form Factor | Data Rate | Wavelength | Laser | Distance | Medium | Connector | Temperature | Data Sheet |
| SCP-100G-SR10 | CFP | 103G | 850nm | VCSEL/PIN | 100m | MMF | MPO | 0℃~70℃ | |
| SCP-100G-LR4 | CFP | 103G | 1310nm | DFB/PIN | 10km | SMF | Duplex LC | 0℃~70℃ | |
| SQP-40G-LR4-E | CFP | 112G | 1310nm | DFB/PIN | 10km | SMF | Duplex LC | 0℃~70℃ |
