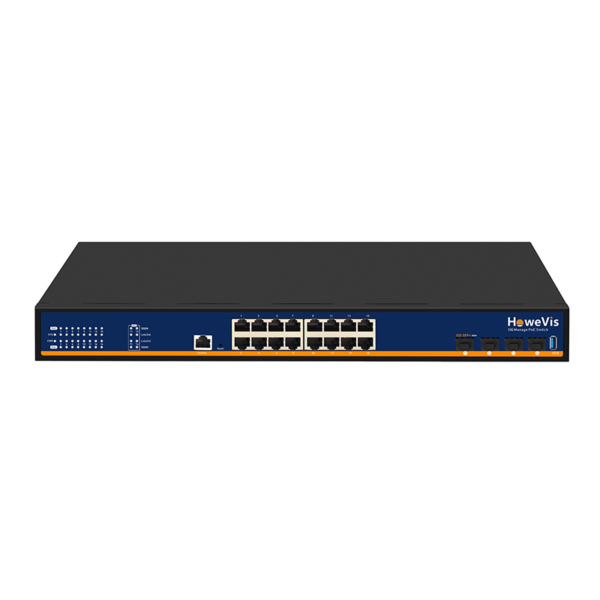

This series 10GbE uplink Layer 3 managed network  have 16 Gigabit Ethernet ports + 4 10GbE uplink SFP+ optical port slots.The service ports of the switch support 4KV electrostatic lightning protection, and it can provide network for wireless APs, network cameras, network phones, building visual access control and other terminal equipment through the network cable, which is suitable for hotels, campuses, parks, supermarkets, banks, scenic spots, factories, dormitories, as well as small and medium-sized small and medium-sized enterprises to set up a cost-effective and efficient network.

The swtich has an L3 network management function, supports IPV4/IPV6 static/dynamic route forwarding, supports complete security protection mechanism, perfect ACL/QoS policy, and rich VLAN function, and is easy to manage and maintain. Supports a variety of network redundancy protocols STP/RSTP/MSTP (<50ms) and ERPS (<20ms) ring network protocols to enhance link backup and network reliability, when a one-way network failure, communications can be quickly restored to ensure uninterrupted communication of important transmissions. According to the actual application needs, through the Web, CLI, SNMP, Telnet and other network management methods, PoE power supply management, port flow control, VLAN division, QoS, LACP, IGMP and DHCP and other applications and services configuration.

Key Feature:

• Single-port PoE power up to 30W, af/at adaptive, widely compatible with a variety of network terminals, support PoE network management, remote realization of POE port restart, real-time power status view;(PS51604TFM)
• 4 optical uplink ports, fiber optic long-distance transmission, suitable for a variety of ring/chain network cascade and expansion, networking is more straightforward;
• Full Gigabit high-speed rate transmission, 10 Gigabit bandwidth uplink, high bandwidth transmission stability is guaranteed, support per port rate and flow control, to achieve 10M/250 meters long-distance transmission, easy to solve the problem of long-distance communication and power supply, to meet different user needs;
• Enterprise-class high-bandwidth switching chip, high backplane, large cache, reduce network congestion;
• Supports automatic learning and updating of MAC address and automatic port rollover (Auto MDI/MDI-X) function;
• The service port supports 4KV anti-surge (lightning) protection, PoE short-circuit and overload protection for safer and more secure use;
• Steel forged metal casing, shielding interference, strong heat dissipation, sturdy, rust-proof and more durable;

Software Features

Strong operational capabilities

• Support 128 entries IPV4/IPV6 static/dynamic routes, support ARP protocol, maximum 1024 entries, support IPV4/IPV6 management.
• Flexible port bandwidth and traffic configuration, optical port DDMI digital diagnostic function, and easy realization of the fine management of the network.
• Support IEEE 802.1Q VLAN, support protocol VLAN, and support QinQ VLAN so that the user can be flexible according to the needs of VLAN.
• It supports QoS, three priority modes based on port 802.1P and DSCP, and four queue scheduling algorithms, Equ, SP, WRR, and SP+WRR.
• Supports ACLs, which provide flexible security access control policies by configuring matching rules, processing operations, and time permissions to achieve packet filtering.
• Supports IGMP V1/V2/V3 multicast protocol and IGMP Snooping V1/V2/V3 to meet the needs of multi-terminal HD video surveillance and video conference access.
• Supports STP/RSTP/MSTP production tree protocols and ERPS fast ring protocols to eliminate Layer 2 loops and realize link backup.
• Supports static aggregation and dynamic aggregation (LACP) to effectively increase link bandwidth, achieve load balancing and link backup, and improve link reliability.

Complete safety features

• Support WEB interface user authentication.
• Supports CPU protection to prevent large data streams from attacking the switch itself
• Supports 802.1x authentication, remote RADIUS, TACACS+ authentication
• The hardware supports IP ACL, MAC ACL, ACL port filtering function, MAC address binding, and port-based IP+MAC+Vlan+Port multiple binding functions.
• Support DHCP Snoopingv1/v2/v3, port isolation, and port broadcast storm suppression functions.

Convenient operation and maintenance management

• Supports diverse management and maintenance methods such as Web-based network management, CLI command line (Console, Telnet), and SNMP (V1/V2c/V3).
• Support HTTP/HTTPS, SSH, and other encryption methods for more secure management.
• Support HTTP/TFTP to realize firmware update/upgrade, support configuration file upload/download, and one-key restore system configuration.
• Supports RMON, system logs, and port traffic statistics for network optimization and transformation.
• Support LLDP, which is convenient for network management systems to query and judge the communication status of links.
• Supports CPU monitoring, memory monitoring, Ping detection, and cable detection.
