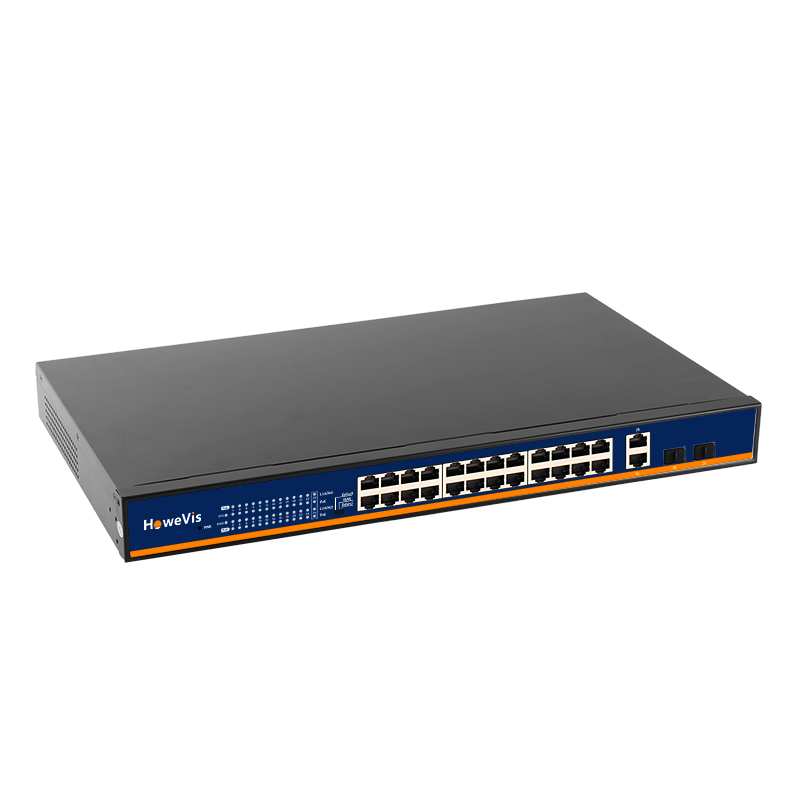

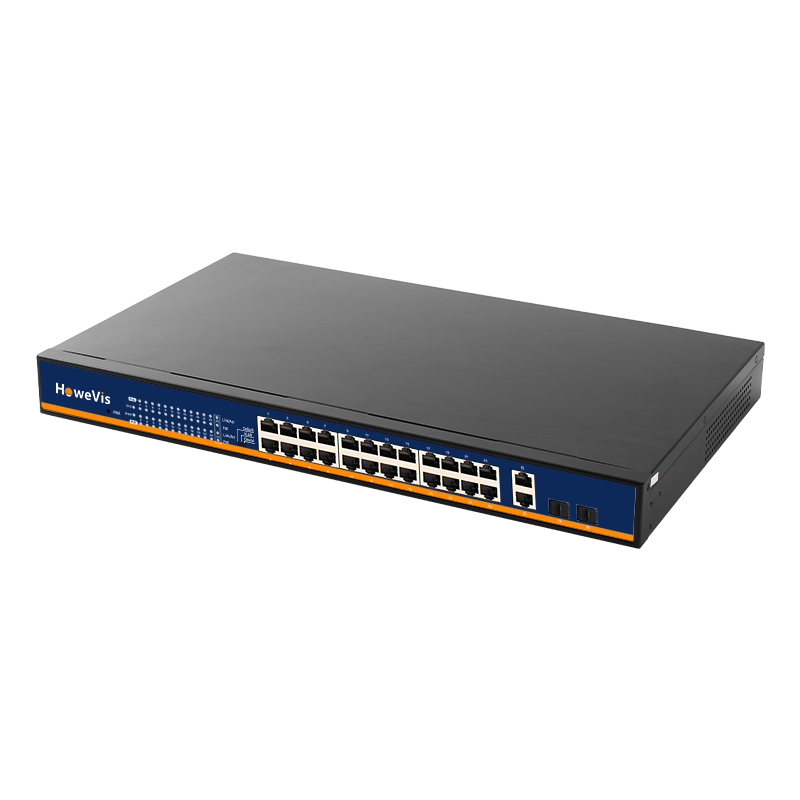

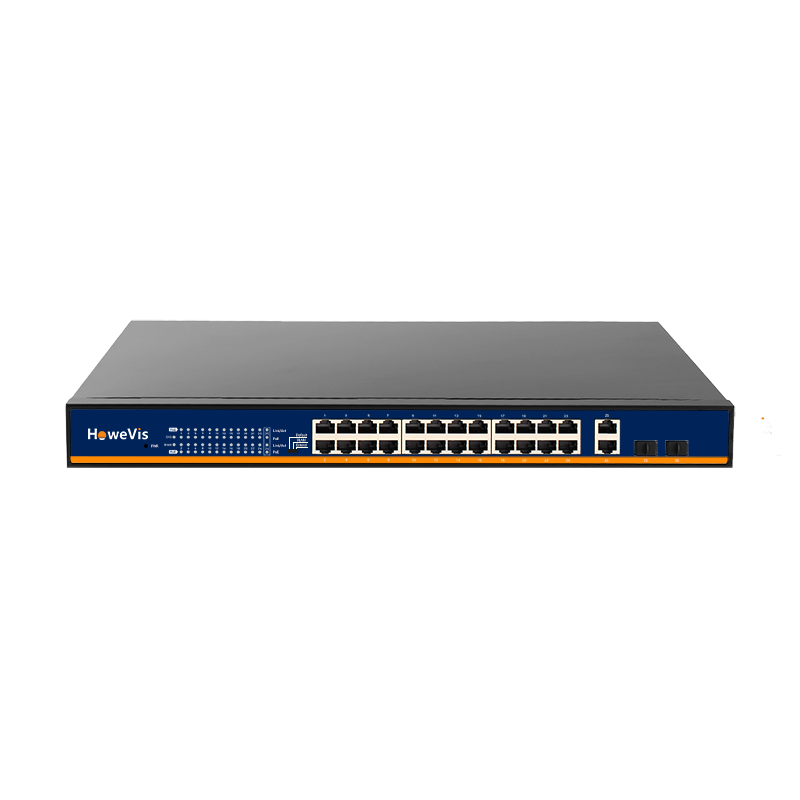

The switch is an unmanaged, high-density PoE switch designed for cost-effective deployment in demanding network environments. It features 24×10/100M JR45 +2×10/100/1000M combo uplink ports (RJ45/SFP slots) for flexible copper or fiber connectivity. With a 12.8Gbps non-blocking switching capacity and support for 10KB jumbo frames, it ensures efficient data handling for high-bandwidth applications.
Product Dimension
| Model | PS32402GC /SW32402GC | |
| Port Characteristics | ||
| Fixed Ports | 24×10/100BASE-TX RJ45 ports. | |
| Uplink Ports | 2 10/100/1000Base-T RJ45 network ports 2 slots for 1000M SFP optical ports (multiplexed) | |
| PoE Ports (PS32402GC) | Ports 1-24: IEEE 802.3af/at, 30W max per port, 100-250m transmission. | |
| Network Protocols | IEEE 802.3/3i/3u, 802.3af/at, 802.3X flow control. | |
| Twisted Pair Transmission | 10BASE-T：Cat3,4,5 UTP(≤250 meter) 100BASE-TX：Cat5 or later UTP(≤100 meter) 1000BASE-T：Cat5e or later UTP(≤100 meter) | |
| Optical Port Characteristics | Gigabit SFP fiber optic interface, the default does not match the optical module, need to be purchased separately, (optional order mode/multimode, single fiber/dual fiber optical module, LC/SC) | |
| Fiber Optic Cable Multi-mode | 850nm0～550M , (optional) Single mode: 1310nm 0～40KM, 1550nm 0～120KM. | |
| Function Switch | AI: PoE Watchdog EXT: 250 meter long range VLAN: Port VLAN | |
| Switching Parameters | ||
| Network Protocol | IEEE802.3 10BASE-T； IEEE802.3i 10Base-T； IEEE802.3u 100Base-TX； IEEE802.3x Flow Control； IEEE802.3ab 1000Base-T； IEEE802.3z 1000Base-X； IEEE 802.3af DTE Power via MDI； | |
| Switching Capacity | 12.8Gbps (non-blocking). | |
| Packet Forwarding | 6.55Mpps @64 bytes. | |
| MAC Address Table | 8K | |
| Buffer Memory | 4Mbits. | |
| Jumbo Frame | 10Kbytes | |
| MTBF | 100,000 hours | |
| Power Indicator | Power indicator: PWR (green); Network indicator: Link/Act (green); PoE indicator: 1-16 (yellow); Optical port indicator: SFP (green) | |
| POE and Power (PS32402GC) | ||
| POE ports | 1-24 ports support IEEE802.3af/at standard POE power supply | |
| Power Supply Pins | Default 1/2(+), 3/6(-) 4-pole power supply | |
| Maximum PoE Power | Per port 30W, IEEE802.3af/at standard | |
| Total Power/Input | voltage 250W (AC100-240V) | |
| Power Consumption | Standby power consumption: <15W; Full load power consumption: <250W | |
| Matching Power Supply | Built-in switching power supply AC: 100-240V 50-60Hz 4 A | |
| Physical Specifications | ||
| Operating Temperature/Humidity | -20°C to +55°C; 5% to 90% RH non-condensing | |
| Storage temperature/humidity | -40°C to +75°C; 5% to 95% RH non-condensing | |
| Appearance size (L*W*H) | 440*265*45mm | |
| Net/Gross Weight | ＜3.8kg / ＜4.1kg | |
| Installation | 1U rack mount | |
| Certifications & Warranties | ||
| Lightning Protection/Protection Levels | Port lightning protection: 4KV 8/20us; Protection level: IP30 | |
| Certifications | CE, FCC, RoHS, CCC. | |
| Warranty | 3 years. |
Extended PoE Range: Supports 250m transmission in extended mode for remote device deployment.
Robust Protection: 4KV surge protection, PoE overload/short-circuit safeguards, and PoE watchdog for automatic fault recovery(PS32402GC).
Plug-and-Play Simplicity: Zero-configuration operation with port VLAN to isolate broadcast storms.
Enterprise-Grade Build: 1U rack-mountable metal chassis (440×265×45mm) with EMI shielding and heat dissipation.
Certifications: Compliant with CE, FCC, RoHS, and CCC standards.
