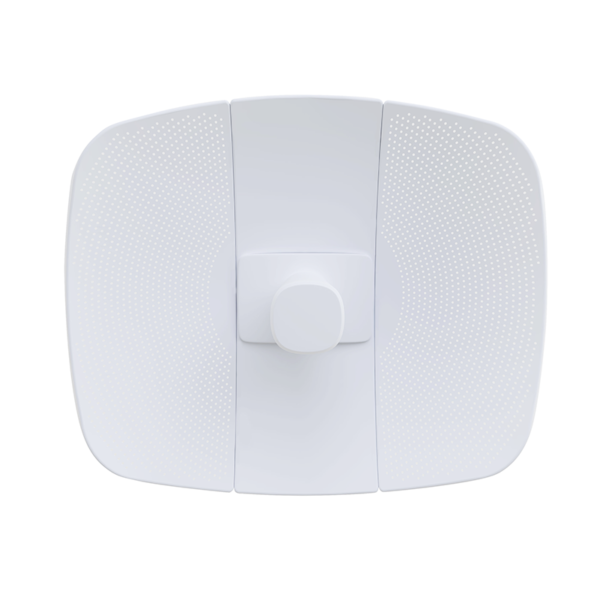

The 5.8G High Power Long Distance Sector Wireless Bridge (Model: HV-B500L) is a robust and versatile outdoor networking solution. Leveraging a Qualcomm AR9344 chip, 64MB DDR2 memory, 8MB FLASH, and a high-power PA, it delivers stable, reliable performance with support for point-to-point and point-to-multipoint bridging. Operating on the 5.8G frequency band with spread spectrum technology, it provides strong anti-interference capabilities, a 300Mbps transmission rate, and a 26dBi dual-polarized parabolic mesh antenna paired with 29dBm transmit power, enabling barrier-free transmission up to 15 km. Its IP65-rated, weather-resistant design—complete with 2KV lightning protection and wind-resistant construction—ensures durability in harsh outdoor environments, while features like SSID hiding, WPA2-PSK encryption, and user isolation enhance data security. The device supports 24V PoE power supply for flexible deployment (up to 65m cable length) and offers easy installation via pole, wall, or bracket mounting. With timed restarts to optimize long-term operation and capacity for 15 IPCs without lag, it’s well-suited for applications such as site monitoring, IoT data transmission, and industrial network extensions, making it a high-performing, practical choice for challenging outdoor scenarios.

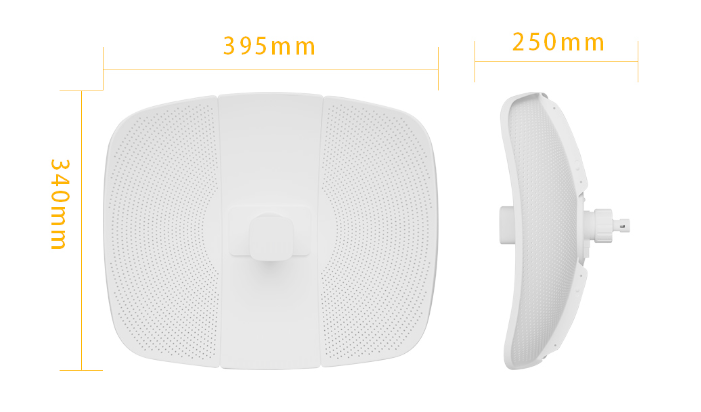

Product Dimensions

Product application

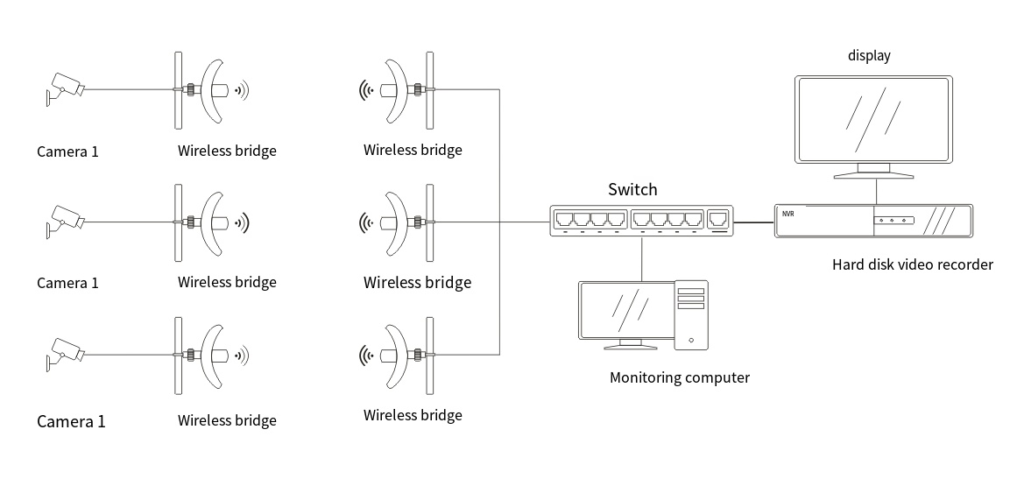

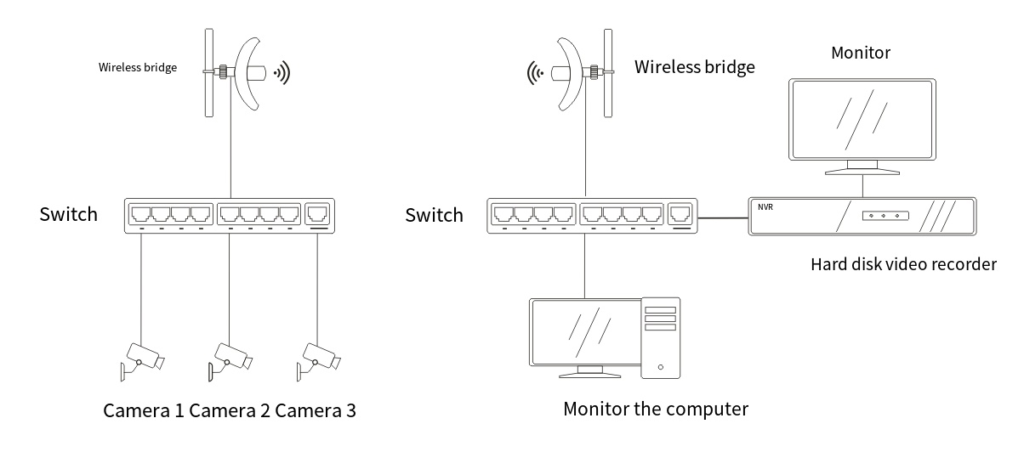

1. Wireless monitoring transmission point-to-point application
2. Wireless monitoring transmission point-to-point application
3. Wireless monitoring transmission point-to-point application

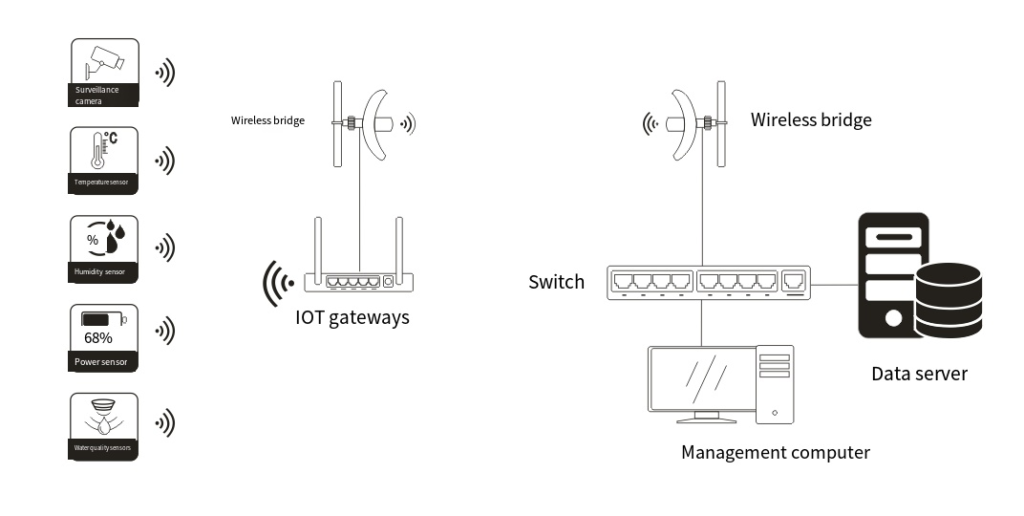

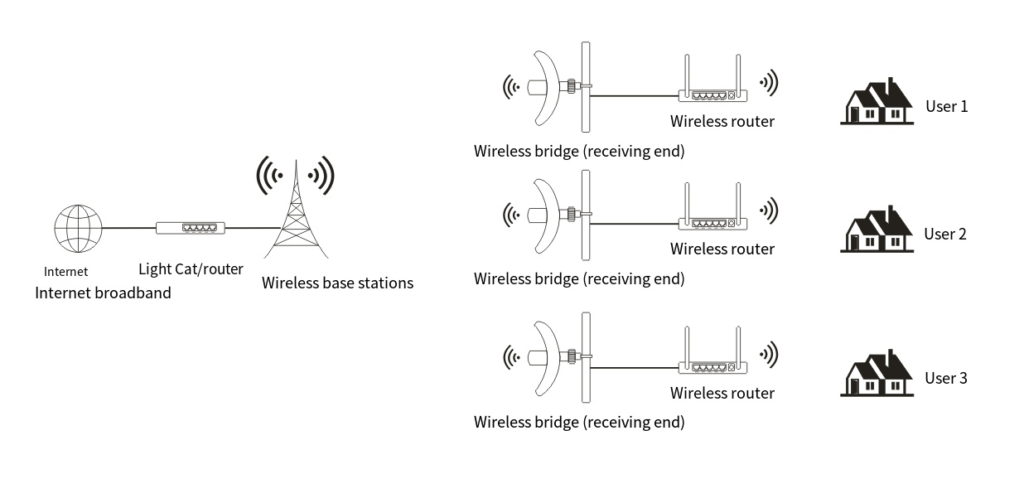

4. Internet wireless transmission application

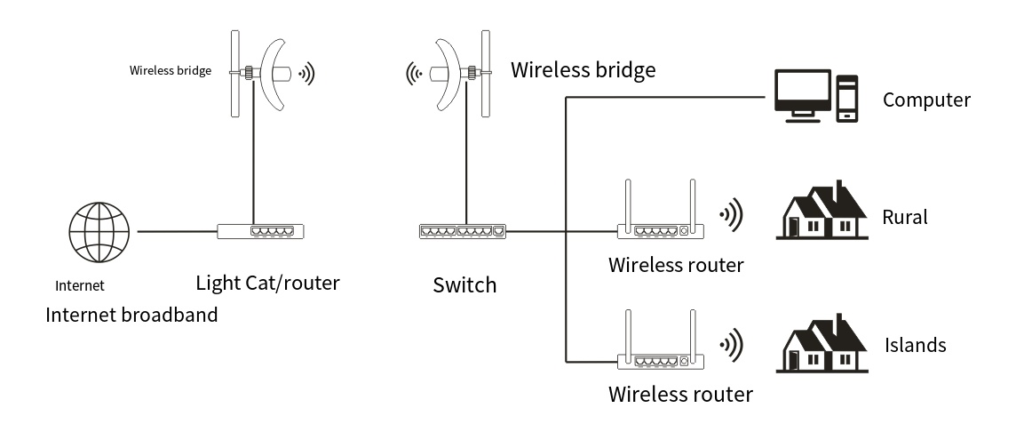

5. Internet wireless transmission Application

• Adopt Qualcomm engineering grade chip, stable and reliable performance;
• Support point-to-point, point-to-multipoint bridge, flexible application, to meet the needs of different application scenarios;
• 8G frequency band, stronger anti-interference ability, not affected by the external environment, more stable transmission;
• Support spread spectrum, can choose more channels, stagger interference frequency band, wireless transmission rate up to 300Mbps;
• Adopts high-power PA circuit design, up to 29dBm transmission power, 26dBi double-polarized parabolic mesh antenna, strong signal strength, longer transmission distance, 0-15 km barrier-free and stable transmission;
• Support timed restart, reduce the system operation cache, optimize the system operation, so that the equipment can run for a long time without delay;
• Support to hide and bridge SSID wireless signal, to avoid wireless terminals to search the signal, to avoid malicious attacks on network transmission data, to ensure the security of user data;
• Support 24V PoE power supply, plug and play, more flexible and convenient wiring;
• Outdoor rainproof design, IP65 protection grade, rain, dust, wind, sun protection, easy to adapt to a variety of harsh outdoor environment, to ensure long-term stable operation of equipment;
• The appearance of professional wind resistant design, strong wind resistance, simple and convenient installation, can be wall hanging, holding pole fixed installation;
• Suitable for major outdoor application scenarios, such as: outdoor site monitoring, power monitoring, scenic spot monitoring, factory monitoring, dock monitoring, community monitoring, outdoor network transmission and other application scenarios.
