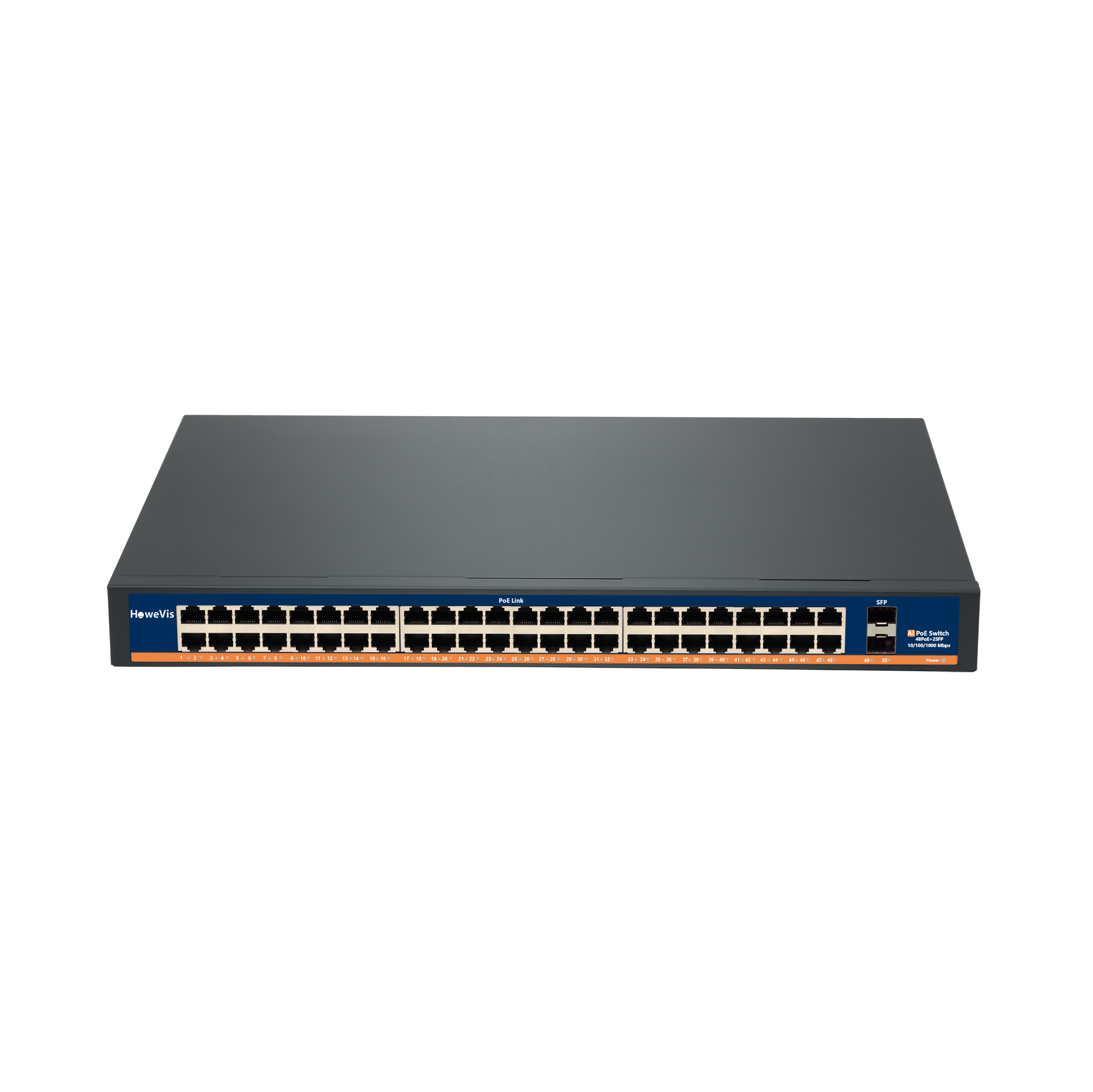

The switch is a new generation Power over Ethernet switch with 48-Port 10/100/1000Base-TX and 2 Gigabit SFP that provides stable and reliable Ethernet transmission offered by HoweVision, with high-quality design and reliability. It is positioned in the broadband network market to offer and realize Ethernet data exchange, convergence, and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users.
| Model | PS54802F / SW54802F |
| Port Characteristics | Port Characteristics |
| Fixed Ports | 48×10/100/1000BASE-TX RJ45 ports. |
| UP link port | SFP 49th-50th port support 1000Mbps |
| PoE output (PS54802F) | 15.4W/30W IEEE802.3af/at |
| PoE whole power | ≤400W(52V 7.7A) |
| POE Pin | 1/2+、3/6- |
| PoE type | End-span |
| Power distance | ≤100m |
| Network Standard | IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at |
| Network Medium | 100/1000BASE-TX: 5 class and above non shielded twisted pair |
| Data Distance | ≤100m |
| Switching Parameters | Switching Parameters |
| Switch capability | 56Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate | 10BASE-tx:14880pps/port 100BASE-tx：148800pps/port 1000BASE-tx：1488000pps/port |
| MAC Address | 8K MAC address table |
| Port function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| Indicator | LINK/ACT. 10/100/1000Mbps;POE Status indicator; POWER indicator |
| Physical Specifications | Physical Specifications |
| Working Environment | Working Temperature: -10°-- 55°C |
| Input power | AC100-240V 50/60HZ |
| Weight | 4.5kg |
| Size | 440mm*284mm*44mm(L*W*H) |
