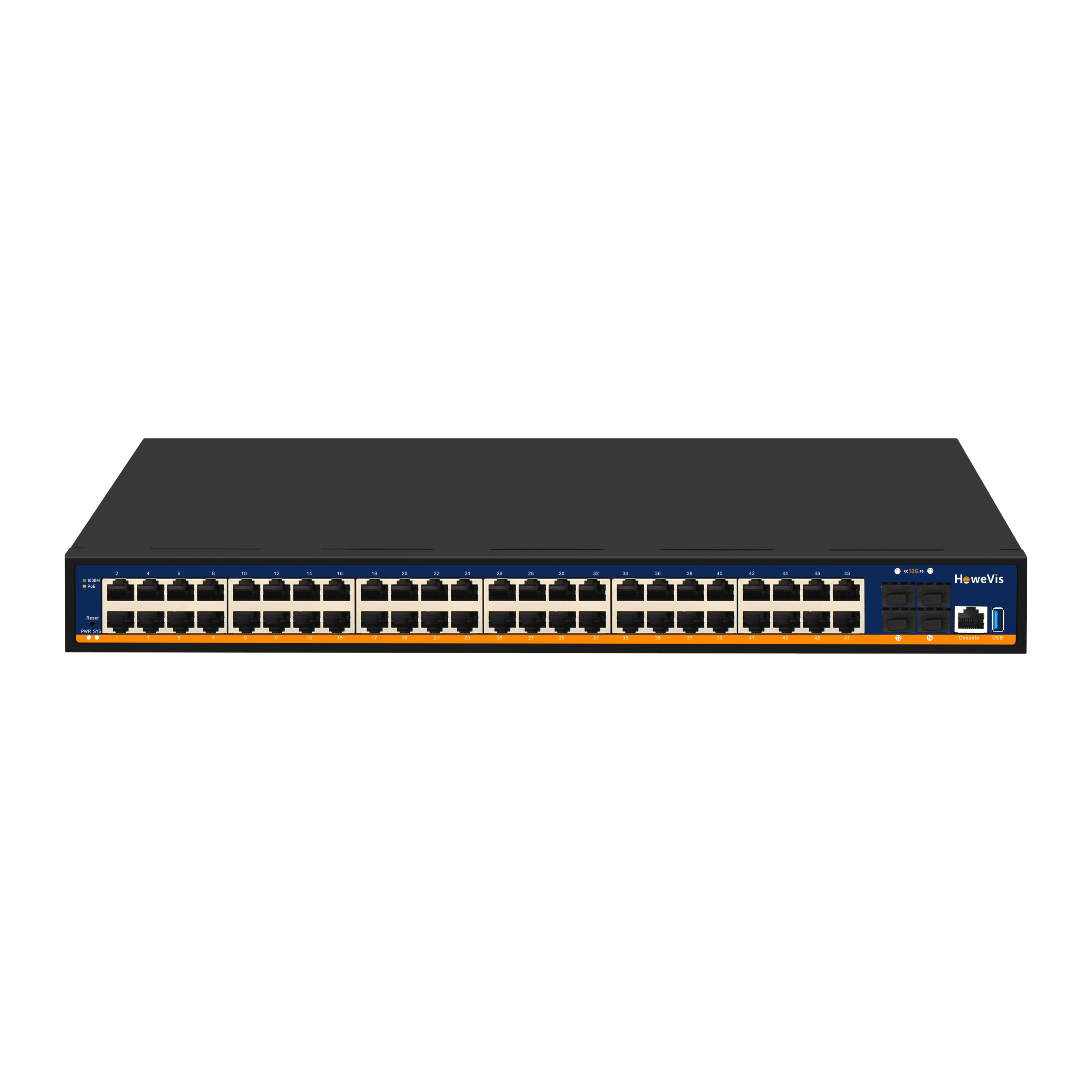

PS54804FM series full Gigabit Layer 2 managed PoE switches with 48 Gigabit LAN ports + 4 Gigabit uplink SFP optical port slots, of which ports 1-48 support IEEE 802.3af/at standard PoE power supply, with a single-port PoE power of up to 30 W. PS54804FM service ports are supported by 4 KV electrostatic lightning protection as PoE power supply devices. The PS54804FM service ports all support 4KV electrostatic lightning protection, and as a PoE power supply device, it can automatically detect and recognize the powered devices that meet the standard and supply power to them through the network cable. The PS54804FM can be used to supply power to wireless APs, network cameras, network telephones, building visual access control intercom, and other POE terminal devices through the network cable to meet the demand for high-density PoE power supply of network environments, suitable for hotels, campuses, parks, supermarkets, banks, scenic spots, factories, dormitories, and small and medium-sized SMBs to set up cost-effective and efficient networks.

PS54804FM has an L2+ network management function, supports IPV4 static route forwarding, complete security protection mechanism, perfect ACL/QoS policy, and rich VLAN function, easy to manage and maintain. Support a variety of network redundancy protocols STP/RSTP/MSTP (<50ms) and ERPS (<20ms) ring network protocol to enhance link backup and network reliability, when a one-way network failure, you can quickly restore communications to ensure uninterrupted communication of important transmissions. According to the actual application needs, through the Web, CLI, SNMP, Telnet and other network management methods, PoE power supply management, port flow control, VLAN division, QoS, LACP, IGMP and DHCP, and other applications and services configuration.

Product Characteristics

• Single-port PoE power up to 30W, af/at adaptive, widely compatible with a variety of network terminals, support PoE network management, remote realization of POE port restart, real-time power status view;
• 4 optical uplink ports, fiber optic long-distance transmission, suitable for a variety of ring/chain network cascade and expansion, networking is more simple;
• Full Gigabit high-speed rate transmission, high bandwidth transmission stability is guaranteed, support per port rate and flow control, to achieve 10M/250 meters long-distance transmission, easy to solve the problem of long-distance communication and power supply, to meet the needs of different users;
• Enterprise-class high-bandwidth switching chip, high backplane, large cache, reduce network congestion;
• Supports automatic learning and updating of MAC address, and automatic port flipping (Auto MDI/MDI-X) function;
• The service port supports 4KV anti-surge (lightning) protection, PoE short-circuit and overload protection for safer and more secure use;
• Steel forged metal casing, shielding interference, strong heat dissipation, sturdy, rust-proof and more durable;

Software Features

Strong operational capabilities

• Supports 128 entries for IPV4 static routes, supports ARP protocol, up to 1024 entries.
• Flexible port bandwidth and traffic configuration, optical port DDMI digital diagnostic function, easy to realize the fine management of the network.
• Support IEEE 802.1Q VLAN, support protocol VLAN, support QinQ VLAN, the user can be flexible according to the needs of VLAN.
• Supports QoS, three priority modes based on port, based on 802.1P, and based on DSCP, and four queue scheduling algorithms, Equ, SP, WRR, and SP+WRR.
• Supports ACLs, which provide flexible security access control policies by configuring matching rules, processing operations, and time permissions to achieve filtering of packets.
• Supports IGMP V1/V2 multicast protocol and IGMP Snooping V1/V2/V3 to meet the needs of multi-terminal HD video surveillance and video conference access.
• Supports STP/RSTP/MSTP production tree protocols and ERPS fast ring protocols to eliminate Layer 2 loops and realize link backup.
• Supports static aggregation and dynamic aggregation (LACP) to effectively increase link bandwidth, achieve load balancing, link backup, and improve link reliability.

Complete safety features

• Support WEB interface user authentication
• Supports CPU protection to prevent large data streams from attacking the switch itself
• Support 802.1x authentication, remote RADIUS, TACACS+ authentication
• The hardware supports IP ACL, MAC ACL, ACL port filtering function, MAC address binding, and port-based IP+MAC+Vlan+Port multiple binding functions.
• Support DHCP Snoopingv1/v2/v3 function, port isolation function, and port broadcast storm suppression function.

Convenient operation and maintenance management

• Supports diverse management and maintenance methods such as Web-based network management, CLI command line (Console, Telnet), and SNMP (V1/V2c/V3).
• Support HTTP/HTTPS, SSH, and other encryption methods, for more secure management.
• Support HTTP/TFTP to realize firmware update/upgrade, support configuration file upload/download, and one-key restore system configuration.
• Supports RMON, system logs, and port traffic statistics for network optimization and transformation.
• Support LLDP, convenient for network management systems to query and judge the communication status of links.
• Supports CPU monitoring, memory monitoring, Ping detection, and cable detection.
