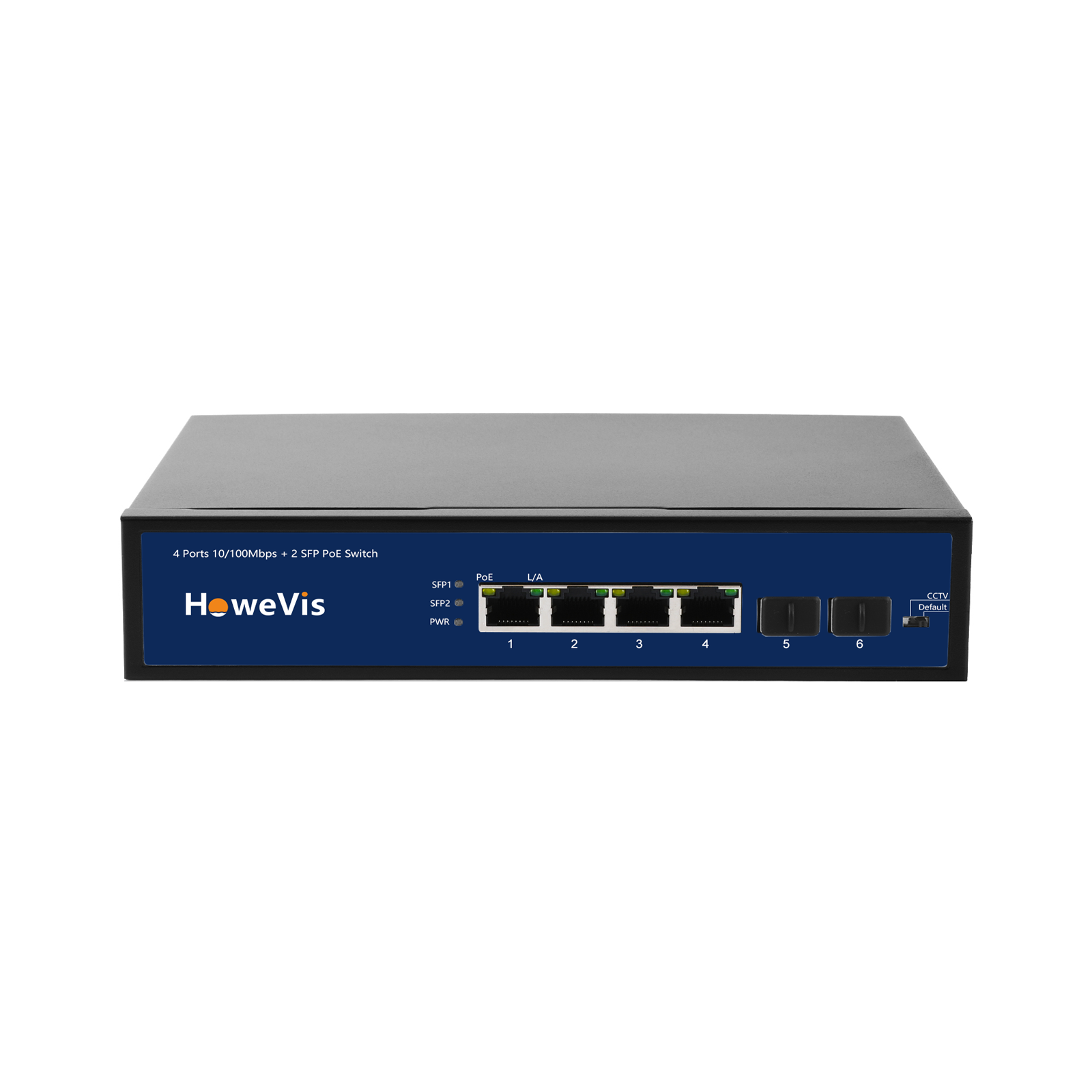

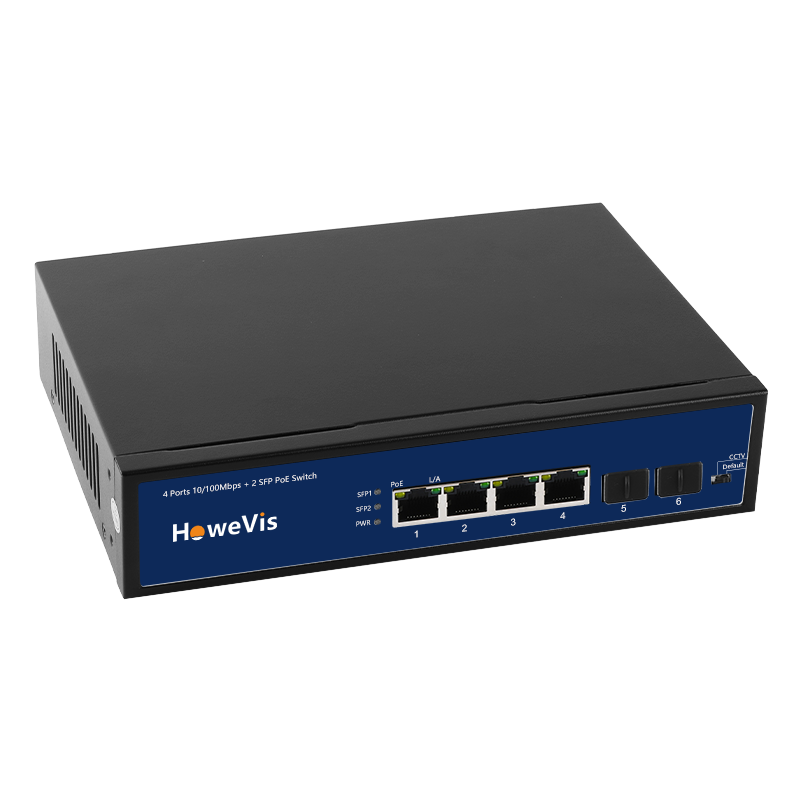

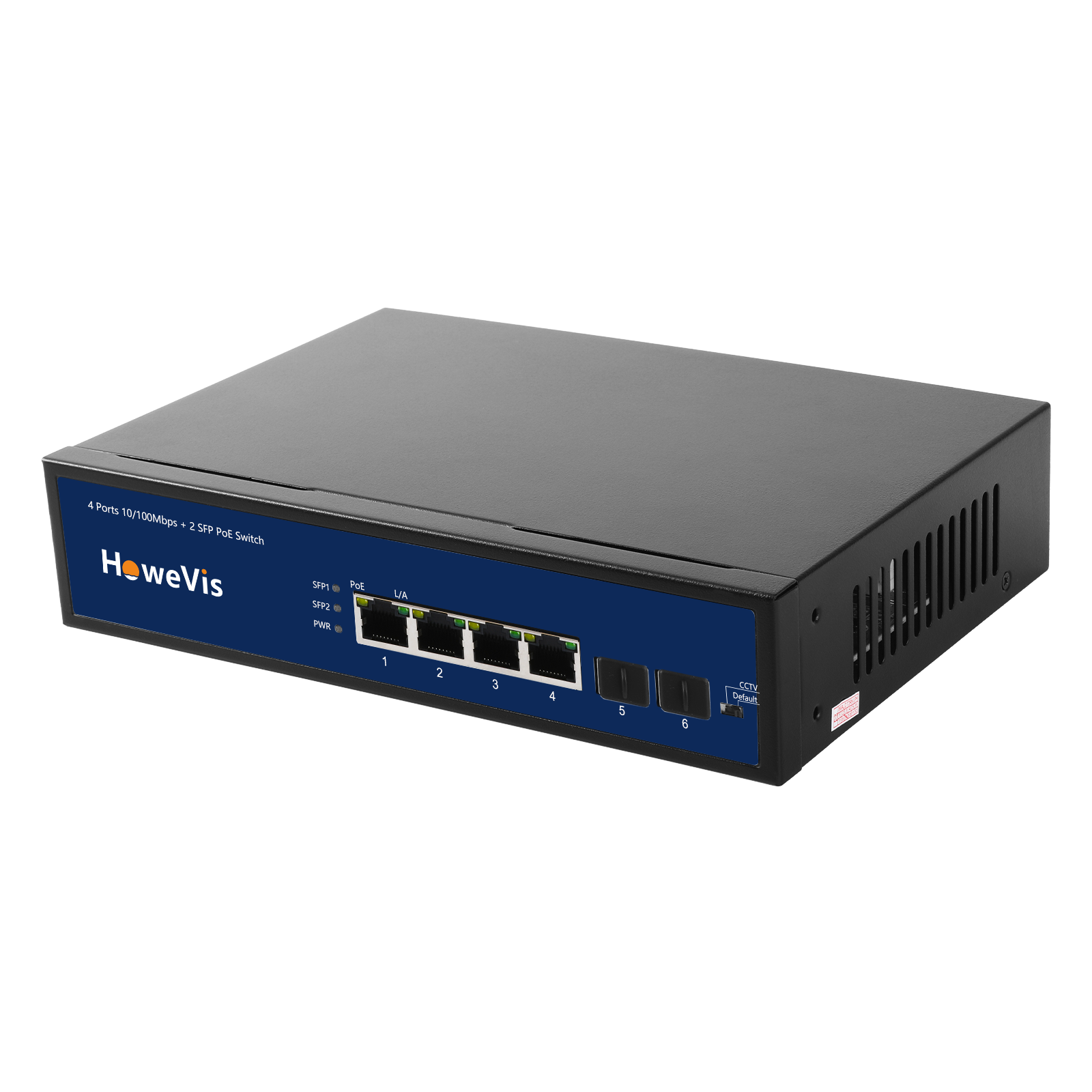

6 Ports 10/100/1000M Network Switch with 2 Ports Gigabit SFP Uplink

The switch is an unmanaged PoE switch featuring 4×Gigabit Ethernet ports + 2×Gigabit SFP uplink slots. All ports are equipped with 4KV surge protection and a one-touch port VLAN function to suppress broadcast storms and enhance network stability. This switch automatically detects and powers compliant PDs (e.g., wireless APs, IP cameras, IP phones) via Ethernet cables, making it ideal for high-density PoE environments such as hotels, campuses, and SMEs.

Plug-and-play design requires no configuration.

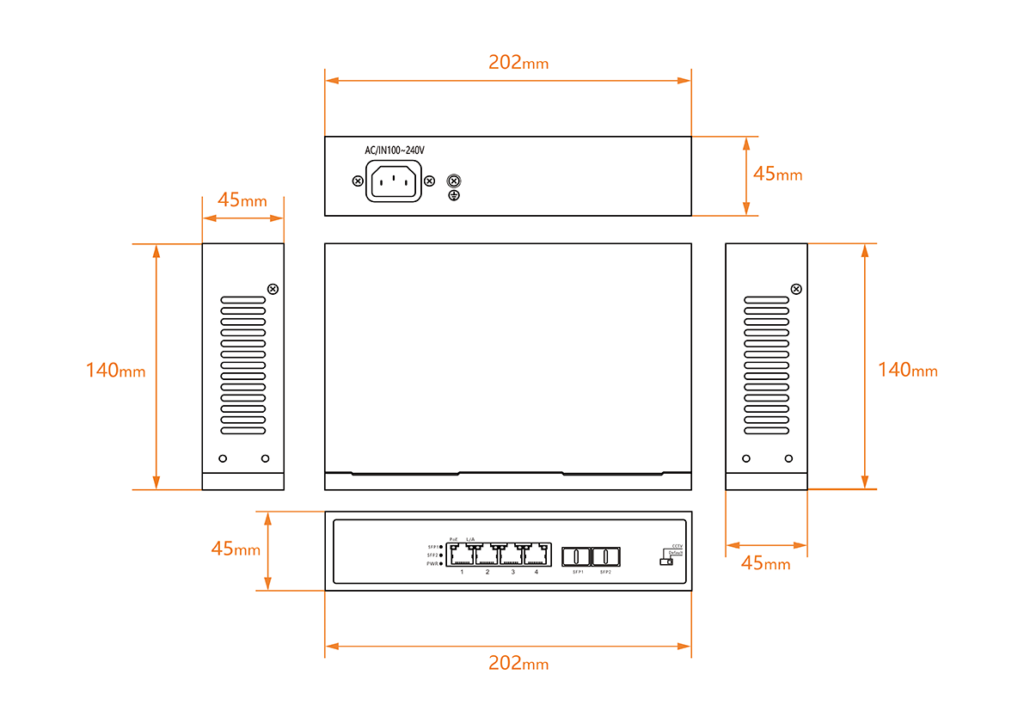

Product Dimension


Model	PS50402F /SW50402F
Port Characteristics
Fixed Ports	4×10/100/1000BASE-TX RJ45 ports.
Uplink Ports	2×gigabit SFP ports.
PoE Ports (PS50402F)	Ports 1-4: IEEE 802.3af/at, 30W max per port, 100-250m transmission.
Network Protocols	IEEE 802.3/3i/3u, 802.3af/at, 802.3X flow control.
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤250 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter)
Optical Port Characteristics	Gigabit SFP fiber optic interface, the default does not match the optical module, need to purchase, (optional order mode / multimode, single / dual-fiber optical module, LC / SC)
Fiber Optic Cable Multi-mode	850nm0～550M , (optional) Single mode: 1310nm 0～40KM, 1550nm 0～120KM.
Function Switch	1 (VLAN), when turned on, ports 1-4 are isolated from each other, optimizing packet forwarding cache and suppressing broadcast storms
Switching Parameters
Network Protocol	IEEE802.3 10BASE-T； IEEE802.3i 10Base-T； IEEE802.3u 100Base-TX； IEEE802.3x Flow Control； IEEE 802.3af DTE Power via MDI； IEEE 802.3at DTE Power via MDI；
Switching Capacity	12Gbps (non-blocking).
Packet Forwarding	8.928Mpps @64 bytes.
MAC Address Table	8K
Buffer Memory	2Mbits.
Jumbo Frame	9.2Kbytes
MTBF	100,000 hours
Power Indicator	Power indicator: PWR (green); Network indicator: Link/Act (green); PoE indicator: PoE (yellow); Optical port indicator: SFP (green)
POE and Power (PS50402F)
POE ports	1-4 ports support IEEE802.3af/at standard POE power supply
Power Supply Pins	Default 1/2(+), 3/6(-) 4-pole power supply
Maximum PoE Power	Per port 30W, IEEE802.3af/at standard
Total Power/Input	voltage 65W (AC100-240V)
Power Consumption	Standby power consumption: <3W; Full load power consumption: <65W
Matching Power Supply	Built-in switching power supply AC: 100-240V 50-60Hz 1A
Power Consumption	Standby: <3W; Full load: <65W.
Physical Specifications
Operating Temperature/Humidity	-20°C to +55°C; 5% to 90% RH non-condensing
Storage temperature/humidity	-40°C to +75°C; 5% to 95% RH non-condensing
Appearance size (LWH)	20314045mm
Net/Gross Weight	＜0.9kg / ＜1.3kg
Installation	Desktop, wall-mounted
Certifications & Warranties
Certifications	CE, FCC, RoHS, CCC.
Warranty	3 years.

30W per PoE port ,IEEE 802.3af/at compliant(PS50802F).
Dual SFP uplink ports for long-distance connectivity and flexible network expansion.
Port VLAN to isolate broadcast domains and optimize traffic.
Enterprise-grade switching chip with 12Gbps non-blocking bandwidth and large buffers.
Supports IEEE 802.3X flow control and Auto MDI/MDI-X.
4KV surge protection and PoE overload/short-circuit protection.
Robust metal casing with heat dissipation and anti-interference shielding.
