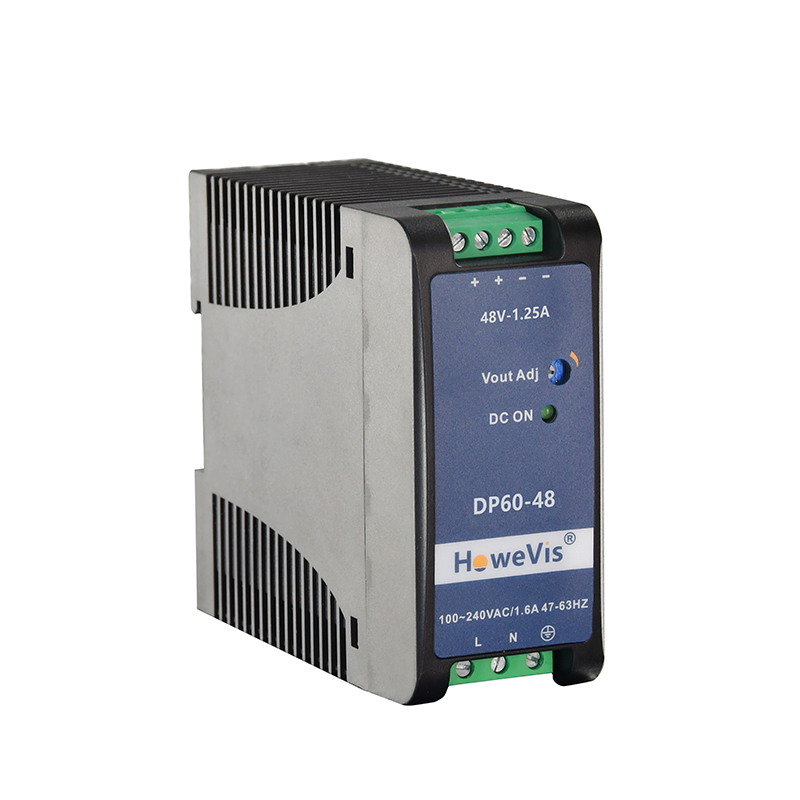

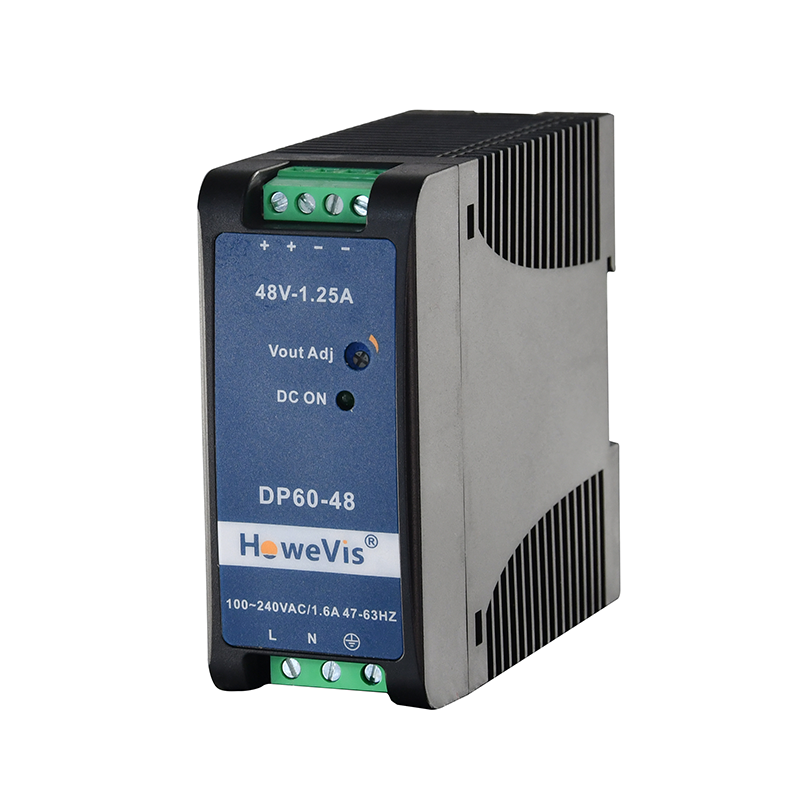

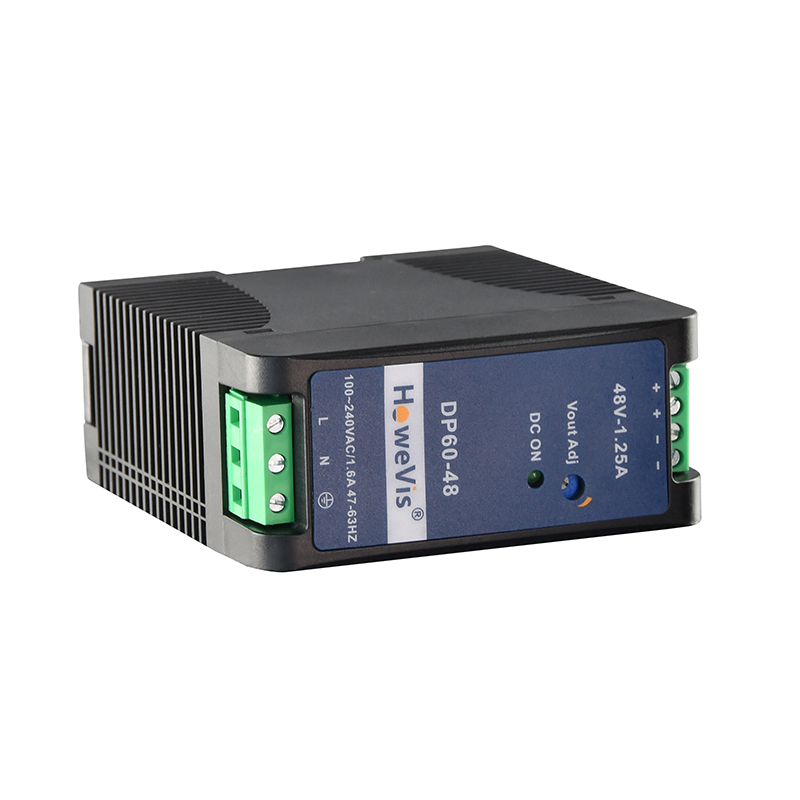

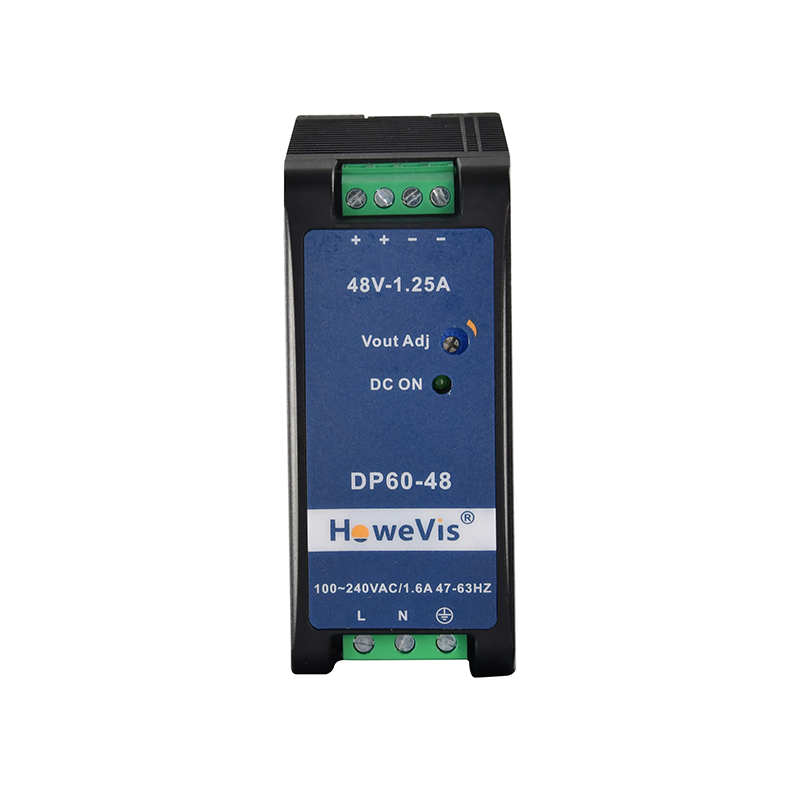

60W/48V Industrial DIN Rail Power Supply

HVT60-48 is one economical slim 60W DIN Rail industrial power supply series, adapted to be installed on TS-35/7.5 or TS-35/15 mounting rails. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.

HVT60-48 is designed with a metal housing that enhances the unit’s power dissipation. With working efficiency up to 89%, the entire series can operate at the ambient temperature between -40℃ to 70℃ under air convection. It is equipped with a constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus make DP60-48 a very competitive power supply solution for industrial applications.

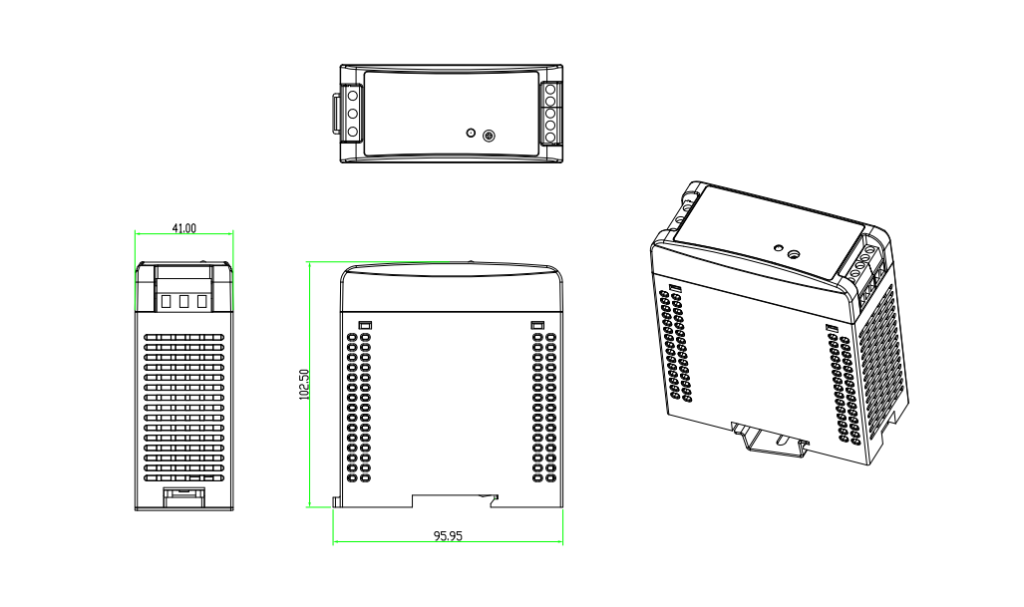

Product size:


Model	HVT60-48
Output	Group of Output	1
	DC Voltage	48V DC
	Default Output Voltage	48.00-48.2V （VIN: 220VAC / LOAD: 0A）
	Output Rated Current	1.25A
	Output Current Range	0-1.25A
	Output Rated Power	60W
	Total Peak Output Power	Up to 90W(Sustainable time 10S/220VAC)
	Peak Output Current	1.5A( Sustainable time 10S/220VAC)
	Ripple noise	Peak - Peak ≤100mV (Test Method: The terminal shall be in parallel with capacitance of 0.1uF and 47uF, testing at 20MHz)
	Output Regulation Range	DC47～56V
	Stabilized Voltage Precision	±1% (@ 90-264Vac input, 100% load)
	Line Regulation	±0.5% (@ 90-264Vac input, 100% load)
	Load Regulation	±1% (@ 90-264Vac input, 100% load)
	Temperature Coefficient	±0.03%/℃
	Output Start Time	< 1.5S @ 115VAC
	Output Hold Time	> 20ms @ 115VAC, > 125 ms @ 230Vac (100% load )
	Voltage Overshoot	≤5%
Input	Input Voltage Range	90~264VAC
	Input Rated Voltage Range	100~240VAC
	Frequency Range	47Hz~63Hz
	Rated Frequency	50/60Hz
	Starting Voltage	90V AC
	Efficiency	> 85.0% @ 115Vac, > 89.0% @ 230Vac
	Input Current	< 1.40A @ 115Vac, < 0.80A @ 230Vac
	Inrush Starting Current	< 20A @ 115Vac, < 35A @ 230Vac
	Power Factor	PF>0.6 (at full load)
Protection
Output	Over power	78~97W Swing machine (Testing method: Increase the output current until enabling the protection. Protection mode: Swing machine, Self-recovery after over-power released.)
	Over voltage	57~70V Swing machine (Short circuit the Pin1-2 of U8, swing machine. Output recovery to normal after removing the short circuit) Note: Do not use external voltage.
	Over current	1.5～1.875A Swing machine (Testing method: Increase the output current until enabling the protection. Protection mode: Swing machine, Self-recovery after over-current released.)
	Short circuit	It achieves the long-term short circuit by connecting a sufficient cross-sectional area copper cable (Length at 15cm±5cm) with power output port. Self-recovery to normal after removing the short circuit.
Operation Environment
Output	Operation Temperature and Humidity	-40～70℃; 20%～95%RH
	Storage Temperature and Humidity	-40℃~85℃; 10%~95%RH non-condensing
	Libration	Frequency range: 10 ~ 500Hz, Acceleration: 2G, Each sweep cycle 10min. Six sweeps along the X, Y, and Z axis
	Surge	Acceleration: 20G, Duration time: 11mS, Three shocks along X, Y and Z axis
	Altitude	2000m
" Safety and EMC Standard @25℃ "
	Security Standard	GB4943/EN60950 ■Reference □Certification
	Dielectric Strength	Input—Output:3KVAC/10mA; Input--Case:1.5KVAC/10mA; Output---Case:0.5KVDC/10mA Time for each testing is 1min.
	Grounding Test	Test Condition: 32A/2min; Ground bond: ＜0.1 ohms.
	Leakage Current	Input to GND ≤3.5mA; Input to output ≤0.25mA (Input 264Vac, 63Hz)
	Insulation Resistance	Input—Output: 10M ohms;
EMI	Conducted Interference	EN55022, EN55024, FCC PART 15 CLASS B
	Radiated Interference	EN55022, EN55024, FCC PART 15 CLASS B
Harmaonic current		EN61000-3-2 CLASS D
EMS	Conducted Emission	EN61000-4-6 Level3
	Radiated Emission
	Power Frequency Emission	EN61000-4-8 Level3
	Electrostatic Emission	EN61000-4-2 Level4 criterion B
	EFT	EN61000-4-4 Level4 criterion B
	Surge	EN61000-4-5 Level4 criterion B
	Dip and Interruption	EN61000-4-11
Dimension (LWH)	93102.541mm

Key Features

Design & Installation
- Slim metal housing with enhanced heat dissipation.
- Compatible with TS-35/7.5 or TS-35/15 DIN rails.
- Wide AC input range: 90VAC–264VAC.
- Complies with EN61000-3-2 harmonic current standards.
Performance
- High efficiency: Up to 89% (230VAC input).
- Operating temperature: -40℃ to 70℃ (with air convection).
- Constant current mode for overload protection.
