The WPD501-60-24 delivers a 24V/2.5A DC output, providing robust power for outdoor devices such as IP cameras and wireless APs. It offers high-speed data transmission up to 2.5Gbps, along with 6KV lightning protection and wide-temperature operation (-40°C to +80°C), ensuring stable and reliable performance for outdoor IoT, remote monitoring, and other network applications in any environment.

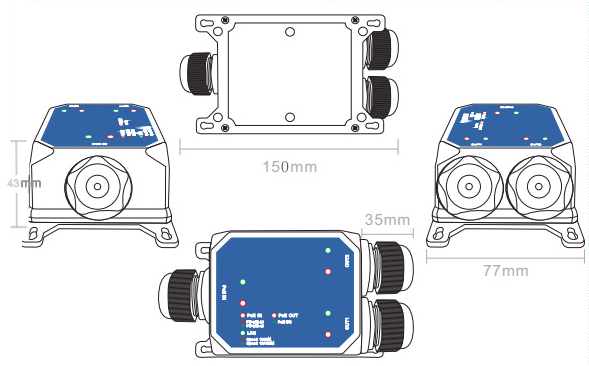

Product Size
| Model | WPD501-60-24 |
| Product name | IP67 level BT level outdoor waterproof POE Splitter |
| material | Aluminum die-casting body Nylon waterproof joint |
| Waterproof grade | IP67 |
| Wire diameter | Support network cables with a Φ of 4-8mm |
| Fixed Port | 1*10/100/1000/2500BASE-TX in 1*10/100/1000/2500BASE-TX out |
| PoE in | Supports IEEE802.3af/at/bt, max 90W PoE in Supports Passive DC37-57V MAX 120W in |
| PoE in Pin | 12+ 45+ 36- 78- |
| DCDC type | 1.5KV isolation type |
| Output voltage | DC 24V |
| Output current | MAX2.5A |
| POWER | MAX 60W |
| Ripple wave | ≤120 mv |
| Conversion efficiency | 93-94.5% |
| Power out | 2P * 3.81 terminal input |
| POE in Transmission Distance | 10BASE-T ： Cat3,4,5 UTP(≤200 meter) 100BASE-TX ： Cat5 or later UTP(120 meter) 1000BASE-TX ： Cat6 or later UTP(100 meter) 2500BASE-TX ： Cat6 or later UTP(90 meter) |
| LED Indicator | Power: Power in LED、Power outl LED POE out: on of af/at LED、on off bt LED |
| Operating Temperature/Humidity | -40～+80°C；5%～90% RH Non coagulation |
| Storage Temperature/Humidity | -40～+90°C；5%～95% RH Non coagulation |
| Product /Packing size（L*W*H） | 150*77*43mm 160*85*47mm |
| N.W/G.W（kg） | 0.31kg/0.35kg |
| Lightning Protection level | 6KV 8/20us； |
| Installation | Desktop、wall installation |
| Certificate | CE-EMC EN55032；CE-LVD EN62368； FCC Part 15 Class B；RoHS； |
| Warranty | Whole device for 1 year(Accessories not included) |
