- Hot-pluggable QSFP+ form factor
- Support 40Gbps data rate
- XLPPI electrical interface
- Digital Diagnostics Monitoring interface
- Compliant with QSFP+ MSA
- Single 3.3V Power Supply
- Temperature Range: 0~ 70°C
- RoHS compliant
HoweVision 40G QSFP+ Optical Transceivers comply with QSFP+ MSA, and provides 40Gigabit Ethernet connectivity for high-speed computing networks, data center, service provider applications. It offers a variety options to meets the different requirement:

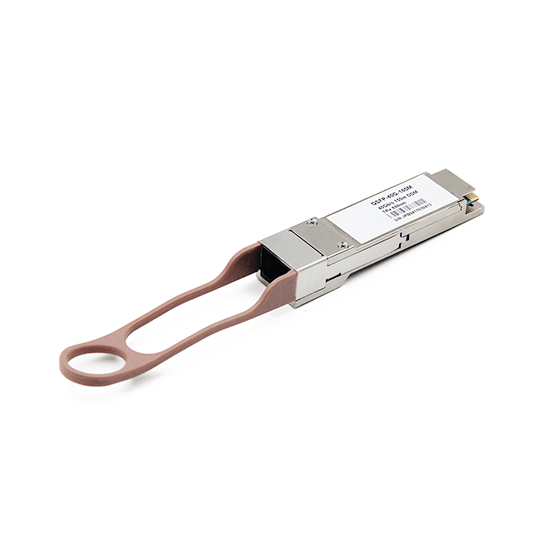

SQP-40G-SR4 QSFP+ 40G SR4 module supports 40Gb/s Ethernet link up to 100m/150m over OM3/OM4 multimode fiber with MPO connector. QSFP+ 40G SR4 module is compliant with IEEE802.3ba 40GBASE-SR4.
SQP-40G-SR-BD QSFP+ 40G BiDi module supports 40Gb/s Ethernet link up to 100m/150m over OM3/OM4 multimode fiber with duplex LC connector. QSFP+ 40G SR4 module is compliant with QSFP+ MSA specification. It consists of two 20-Gbps transmit and receive channels in the 832-918 nanometer wavelength range, enabling an aggregated 40-Gbps link over a two-strand multimode fiber connection.
SQP-40G-LR4 QSFP+ 40G LR4 module supports 40Gb/s Ethernet link up to 10km over single mode fiber with duplex LC connector. QSFP+ 40G module is compliant with IEEE802.3ba 40GBASE-LR4.
| Model Number | Form Factor | Data Rate | Wavelength | Laser | Distance | Medium | Connector | Temperature | Data Sheet |
| SQP-40G-SR4 | QSFP+ | 40G | 850nm | VCSEL/PIN | 100m | MMF | MPO | 0℃~70℃ | |
| SQP-40G-SR-BD | QSFP+ | 40G | 850/900nm | VCSEL/PIN | 100m | MMF | Duplex LC | 0℃~70℃ | |
| SQP-40G-LR4 | QSFP+ | 40G | CWDM 1310nm | DFB/PIN | 10km | SMF | Duplex LC | 0℃~70℃ | |
| SQP-40G-ER4 | QSFP+ | 40G | CWDM 1310nm | DFB/APD | 40km | SMF | Duplex LC | 0℃~70℃ |
