HVT-WA680 is a high-performance, high-rate 11ax indoor dual-band ceiling-mounted AP that provides 2.4G and 5.8GHz dual-band wireless high-rate service, with 2.4G providing up to 574Mbps access rate and 5G providing up to 1201Mbps access rate.

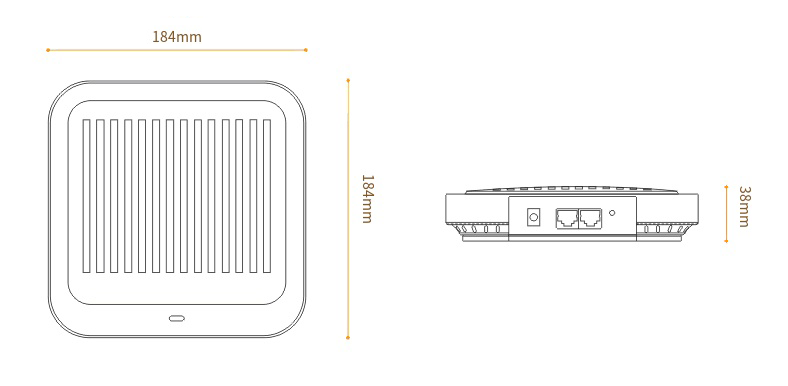

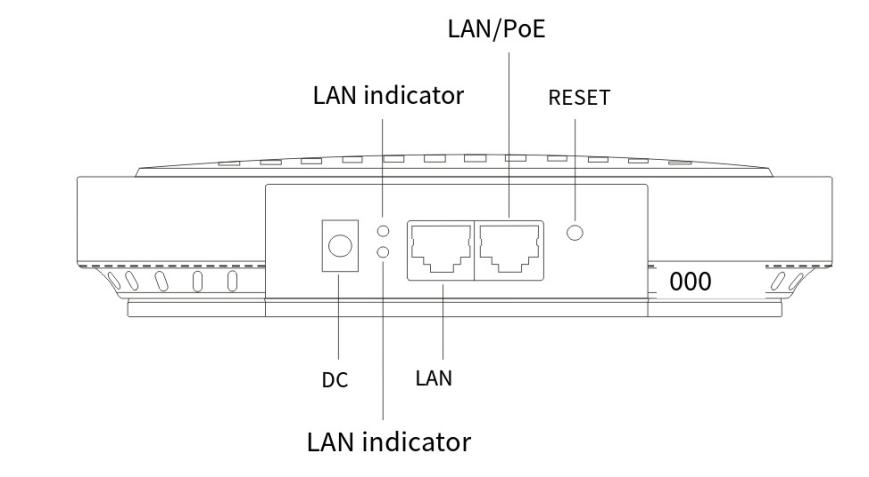

Product Dimensions

Product Networking

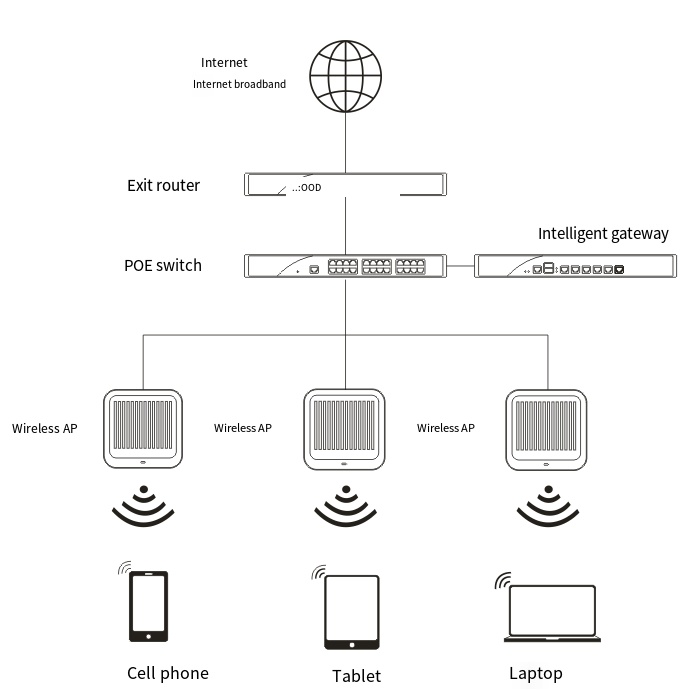

1）Gateway Mode

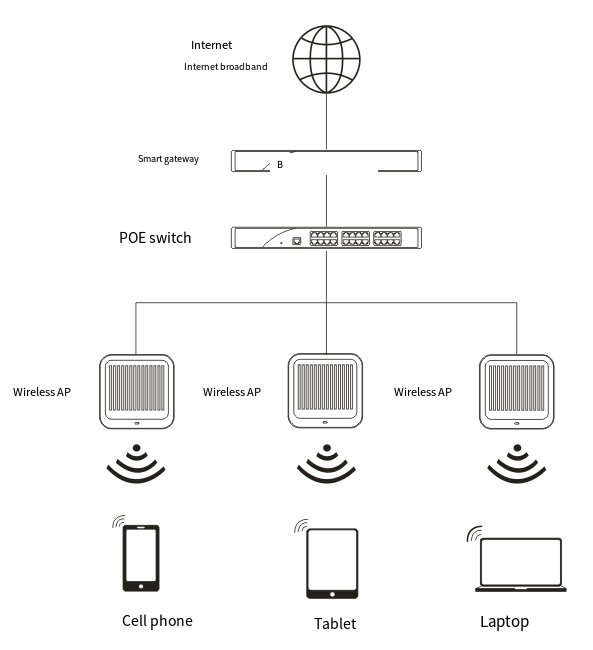

2）Bypass Mode

• MTK enterprise-class chip, support 80MHz bandwidth, greatly expand the user capacity, the maximum number of users can reach 100;
• 4GHz band compatibility, long transmission distance, 5GHz band interference is small, dual frequency concurrent, wireless transmission rate up to 1800Mbps, better meet the crowded places of wireless coverage needs;
• Support seamless roaming, more smooth switching, improve each user's wireless experience;
• Support automatic channel optimization, reduce mutual interference between channels, optimize the overall performance of wireless networks;
• Built-in 2 2.4G antennas, 2 5G antennas, improve the wireless signal quality of AP coverage area;
• Support AC controller unified management, one-click delivery configuration, saving manual maintenance costs;
• Support3af/at protocol, standard 48V PoE power supply, plug and play, more flexible and convenient wiring;
• Suitable for various crowded scenes, such as: high-speed railway stations, subway stations, terminals, hotels, hospitals, schools, scenic spots, wharves, shopping malls and other application scenarios.
