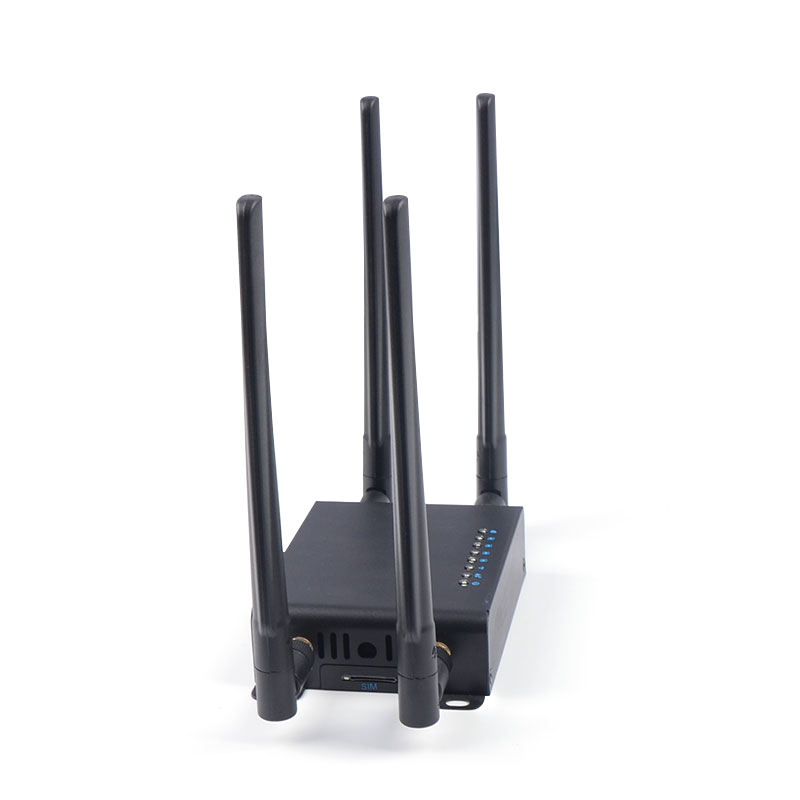

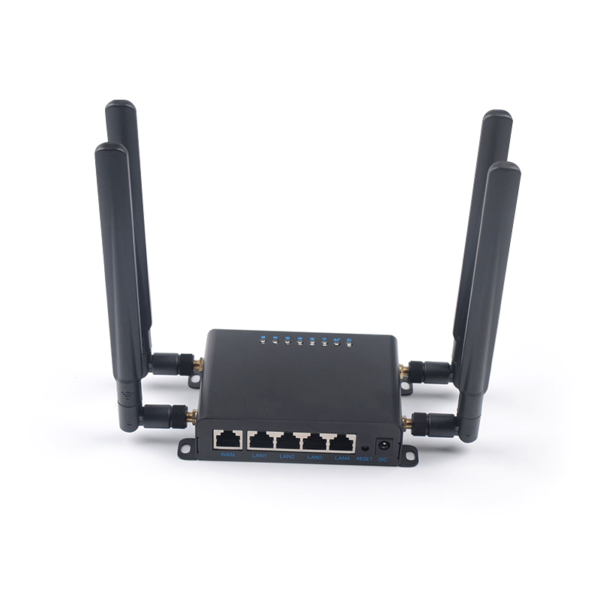

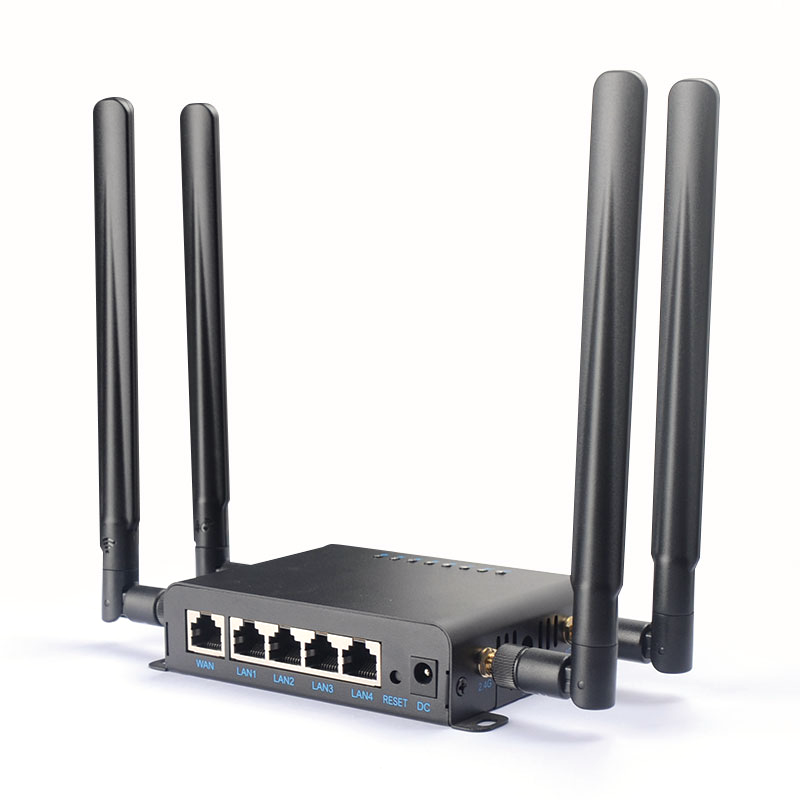

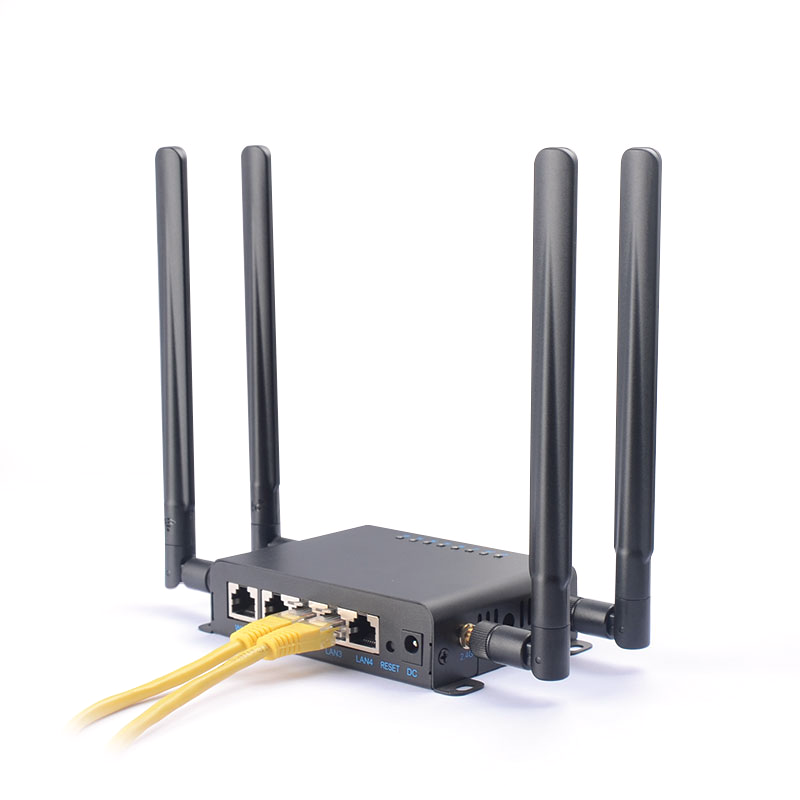

Durability & Flexibility Industrial Smart 4G Router

The HVT-RG300B is an industrial-grade LTE router featuring a ruggedized IP31-rated enclosure and extended operating temperature range (-10°C to 55°C). Equipped with a MediaTek MT7628DAN SoC and Quectel EC200A-CN multi-carrier LTE Cat4 module (supporting FDD/TDD bands), it delivers dual-network connectivity through 4G LTE (150Mbps DL/50Mbps UL) and 802.11b/g/n 2.4GHz Wi-Fi (300Mbps PHY rate). The device provides 1×WAN + 4×LAN 10/100M Ethernet ports, configurable via embedded QoS policies and firewall rulesets (DMZ/port mapping/MAC filtering). Its field-serviceable design includes hot-swappable SIM slots, PCIe-based modular 4G radio architecture, and dual SMA-connectorized 5dBi MIMO antennas (4G/Wi-Fi) for adaptive RF optimization in harsh environments. Supports SNMP v2c and web-based management with remote firmware upgrades, targeting industrial IoT deployments requiring carrier-agnostic cellular backhaul with MIL-STD-810G-compliant reliability.

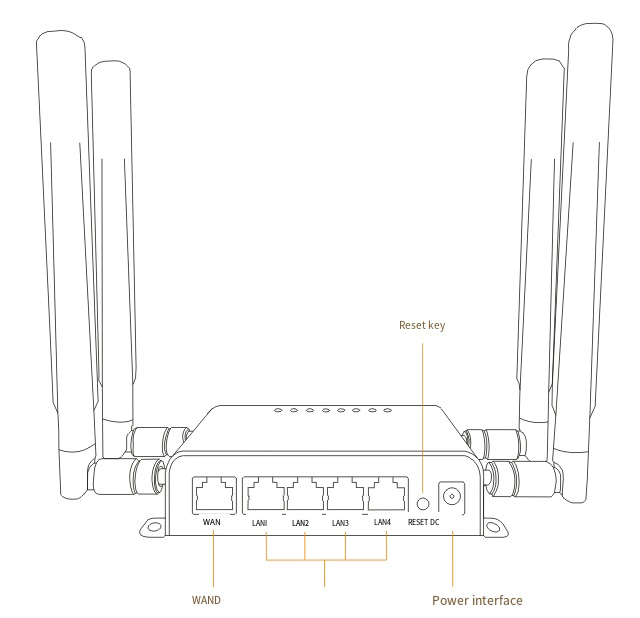

Front interface

Side interface


Product Name	Industrial-grade Smart 4G Router
Product Model	HVT-RG300B
Hardware Specifications
Hardware System	Master control	MT7628DAN
	FLASH	8MB
	4G module	EC200A-CN 4G Full Netcom (optional)
Wireless Parameters	Protocol standards	IEEE 802.11b/g/ n
	Operating frequency band	2.4GHz: 2412MHz to 2472MHz
	Wireless rate	300Mbps Max
	4G speed	LTE-FDD: Max downlink speed 150Mbps, Max uplink speed 50Mbps LTE-TDD: Max downlink speed 130Mbps, Max uplink speed 30Mbps
	Transmit power	18dBm Max
Physical Interface	Network interface	1 10/100 Mbps RJ45 Ethernet WAN port 4 10/100 Mbps RJ45 Ethernet LAN ports
	Power port	1 DC power port, support 12V DC power supply
	SIM card port	1 standard self-ejecting Mini SIM card slot
	Key switch	1 RESET button
	PCI-E interface	1 built-in PCI-E interface (optional or replacement of different brands of 4G modules)
	Antenna interface	2 4G antennas Standard SMA interface (external interface, can be replaced with different antennas) 2 WIFI antenna standard SMA interface (external interface, can be replaced with different antennas)
Indicator Light	LED indicator	In order: POWER, 4G, WIFI, WAN, LAN1, LAN2, LAN3, LAN4
Power supply/ Power consumption	Mode of power supply	DC 12V ~ 1A power supply
	Machine power	< 6 w
Product Accessories	Mainframe	Industrial-grade Smart 4G Router host *1
	Power adapter	DC 12V/1A
	Antennas	2 5dBi high gain omnidirectional WIFI antennas 2 5dBi high gain omnidirectional 4G antennas
	Other	User Manual 1, Warranty card 1, Certificate *1
Appearance/Packaging	Product dimensions	Overall dimensions (L * W * H) : 130mm83mm30mm (without antenna) Antenna height: 172mm
	Appearance Material	Iron shell with frosted finish
	Exterior color	Black (appearance color can be customized)
	Weight	< 1.5 kg
Other	Level of protection	IP31, 2KV lightning protection
	Installation method	Desktop, wall hanging
	Use environment	Working temperature: -10℃ ~ 55℃ Storage temperature: -40℃ ~ 70℃ Working humidity: 10% ~ 90%RH non-condensing Storage humidity: 5% ~ 95%RH non-condensing
Software Specifications
Network	WAN access method	Wired, 4G
	Extranet address detection	Support
	Extranet status display	Support
	LAN setup	Support
	DHCP server	Support
	Uplink/downlink rate display	Support
4G dialing	4G dialing method	Auto/manual
	MAC address clone	Support
	4G signal strength display	Support
	4G module IMEI recognition	Support
	SIM card number display	Support
Wireless Settings	Wireless switch	Support
	SSID Setting	Support
	SSID Hiding	Support
	User isolation	Support
	Wireless channel setup	Support
	Transmit power Setting	Support
	Encryption method	WPAPSK, WPA2PSK, WPAPSKWPA2PSK
	Type of encryption	TKIP, AES, TKIPAES
	Visitor Control	Support
	QoS Settings	Support
Advanced Settings	Static routing	Support
	Firewall	Support DMZ setup, port mapping, terminal management, MAC filtering, etc
	System administration	Support firmware upgrade, scheduled restart, firmware file import and export, etc
	System tools	PING detection, route tracing, DHCP detection

Industrial design, equipped with all Netcom 4G module, support Mobile, Unicom, Telecom operators to choose;
4G to wired to WIFI signal, to meet various application scenarios;
Large number of tape machines, easy access to a variety of wireless terminal equipment;
No wiring, say goodbye to wired broadband, flexible installation;
Free to change the card, plug and play, the card has a network;
External two 2.4G,two 4G high-gain omnidirectional antennas, strong penetration, stable signal.
